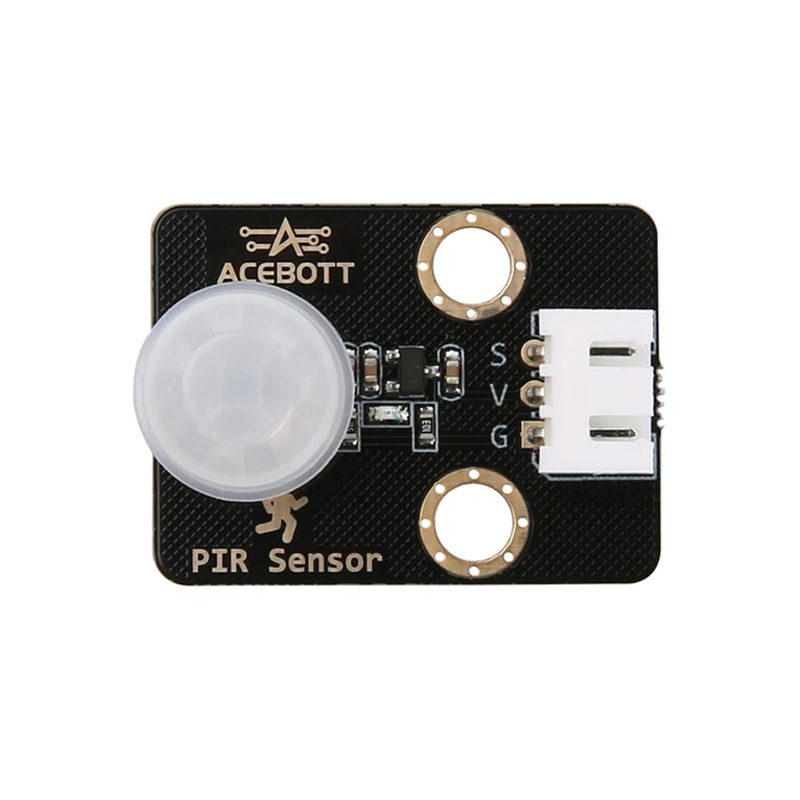

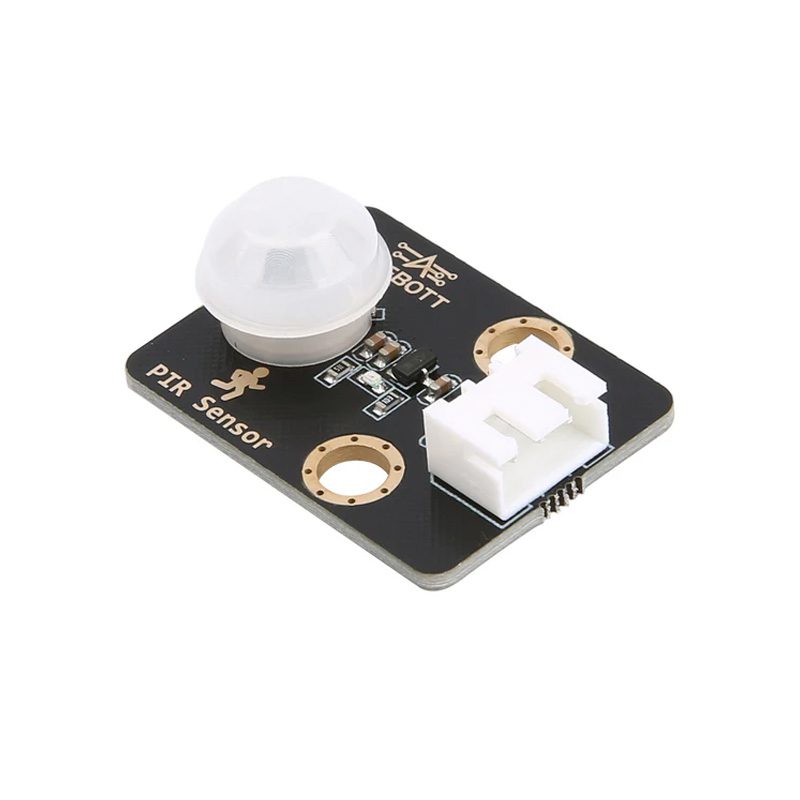

ACEBOTT PIR Motion Sensor Easy-Plug - 0-4m Detection, 3.3-5V DC

The sensor provides a digital output signal. When motion is detected within its 4-meter range, the output pin switches to a logic HIGH (or LOW, depending on configuration). This digital signal can be read directly by a microcontroller GPIO pin on platforms like Arduino, ESP32, or Raspberry Pi without requiring an analog-to-digital converter.

Yes, the module is designed for a wide operating voltage range of 3.3V to 5V DC. You can power it directly from the 3.3V or 5V pins of common development boards like Arduino Uno, ESP32, or Raspberry Pi. Its digital output logic levels are compatible with the supply voltage used, ensuring reliable communication with the host controller.

This PIR sensor typically features a wide detection zone or a series of Fresnel lens segments that create multiple sensing cones. It is most sensitive to lateral movement (side-to-side) across these zones. The exact field of view is not specified but is standard for board-level PIR modules, covering a broad area in front of the sensor up to the 4-meter maximum range.
