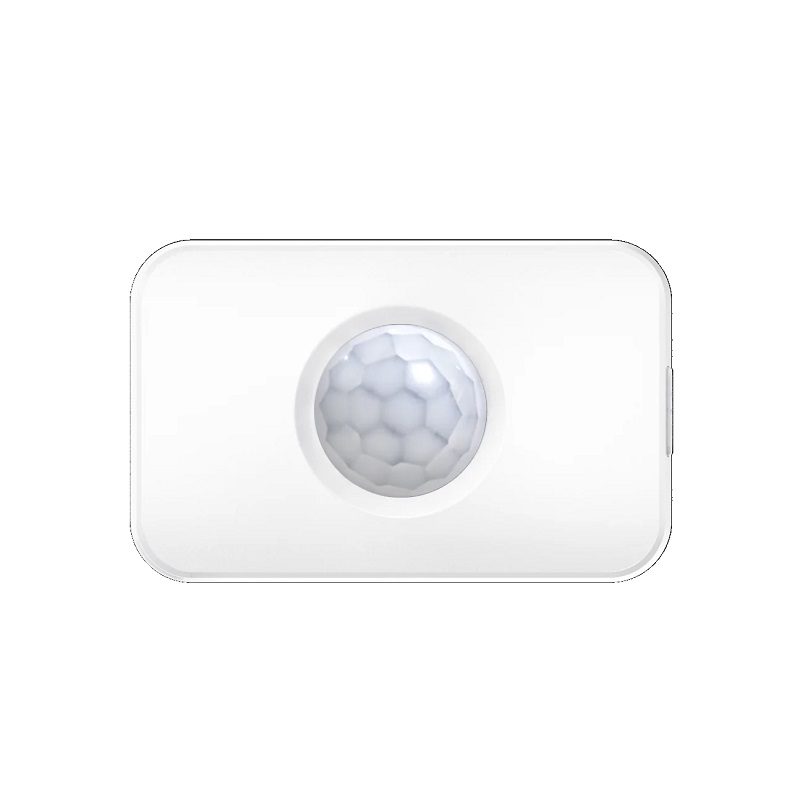

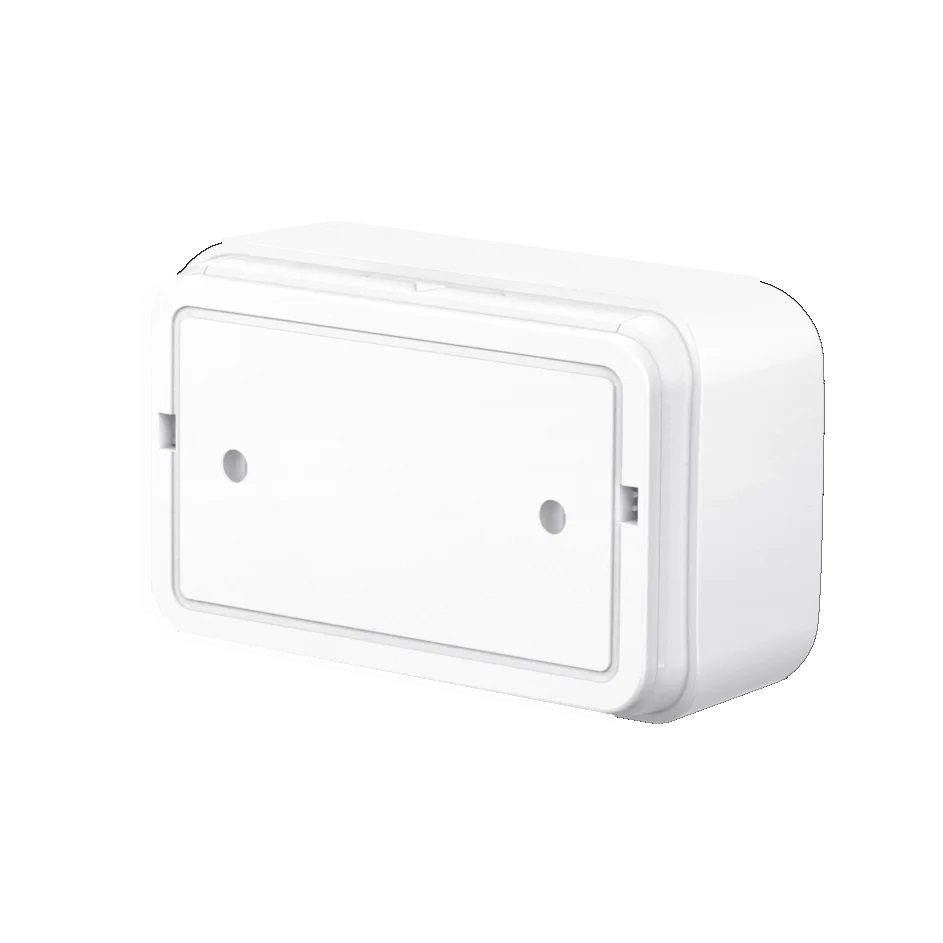

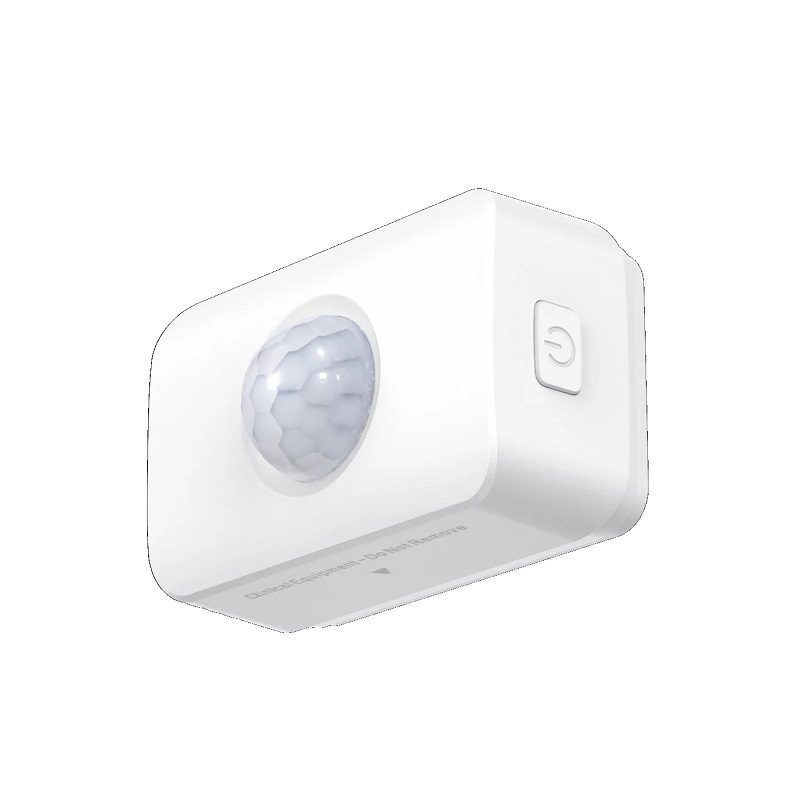

MOKO Smart Smart S01P (12m) PIR Sensor - BLE 5.0, 120° Horizontal, 60° Vertical
The MOKO Smart Smart S01P is a BLE 5.0 wireless PIR sensor module designed for human presence detection and door status monitoring in smart home and building automation systems. It features a 12-meter detection range with a 120° horizontal and 60° vertical field of view, operating on a 3V supply for integration with IoT gateways and controllers.
Features
- BLE 5.0 wireless PIR sensor with integrated hall sensor for door status.
- 12-meter maximum human detection range with 120° x 60° coverage.
- Ultra-low power consumption supporting up to 5 years on a single 5200mAh Li-SOCI2 battery.
- Wide operating temperature range from -20°C to +60°C for indoor/outdoor durability.
- Flexible mounting options with included 3M tape and screw-grip bracket.
Out of stock
The MOKO Smart Smart S01P utilizes a passive infrared (PIR) sensing element to detect motion and body heat signatures within its defined coverage area. Combined with a hall-effect sensor for magnetic door/window status, it provides dual-input data for comprehensive occupancy and security monitoring. The module’s signal conditioning and BLE 5.0 radio are optimized for minimal quiescent current, enabling multi-year operation from a single primary cell.
Engineered for reliable performance in varied environments, the sensor housing protects the internal electronics across an extended temperature range. Its compact form factor and versatile mounting hardware facilitate installation on walls, ceilings, or door frames, making it suitable for retrofitting into existing smart infrastructure or new IoT deployments.
Additional Information
| Weight | 0.095 kg |
|---|---|
| Dimensions | 7.5 × 4.5 cm |
