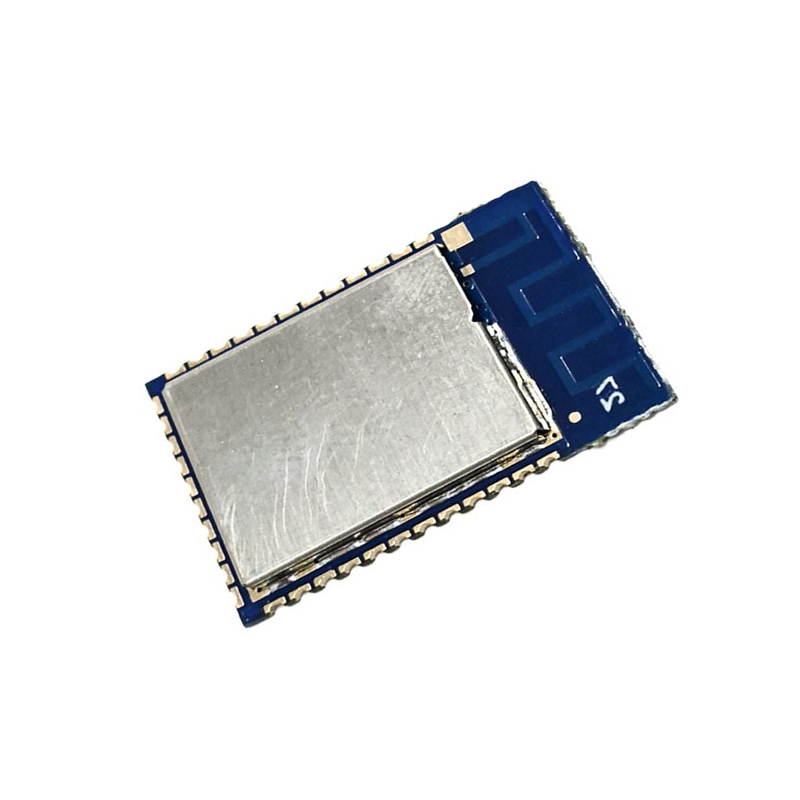

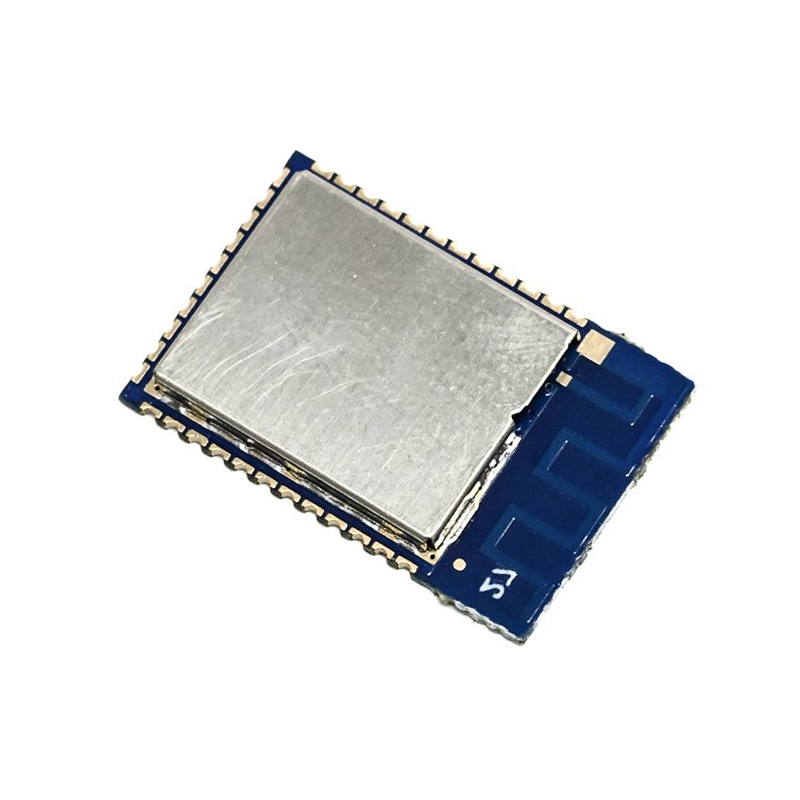

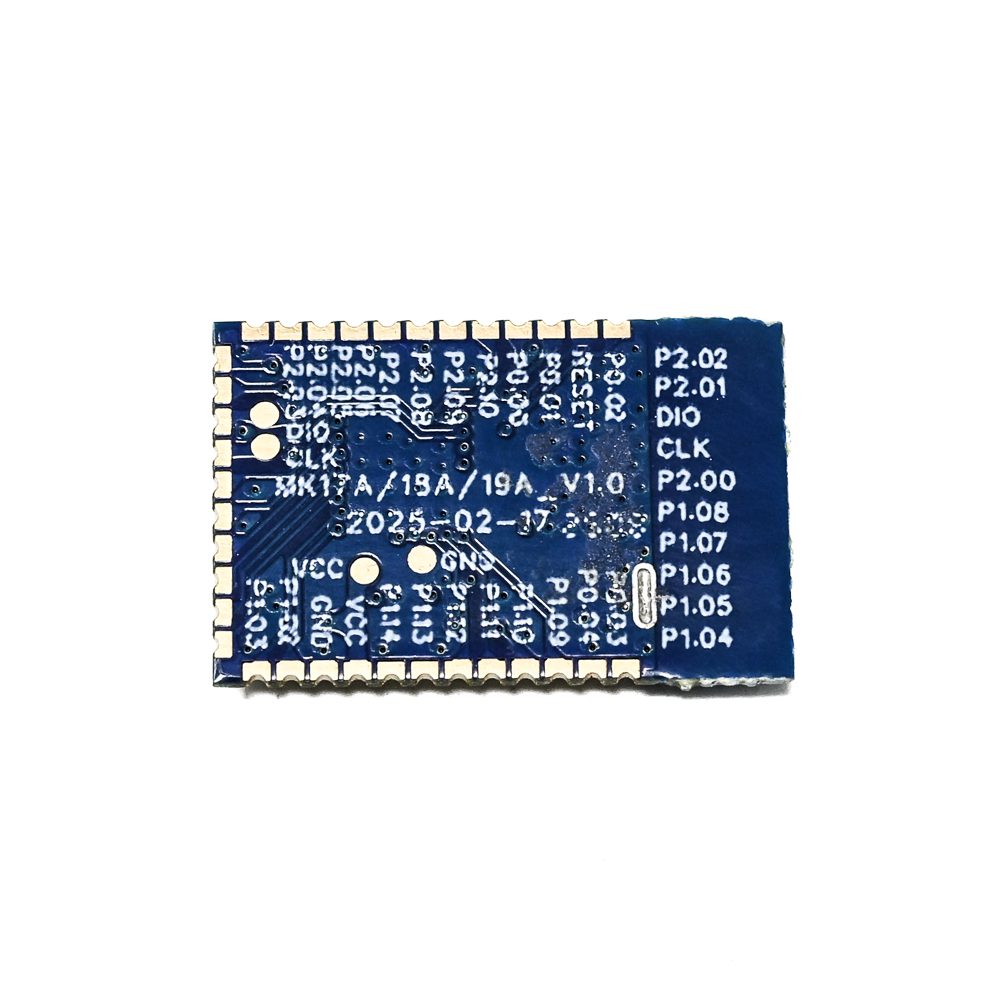

MOKO Smart Smart MK19 nRF54L15 Module, BLE 6.0, PCB Trace Antenna
The MOKO Smart Smart MK19 nRF54L15 Module is a compact Bluetooth 6.0 SoC module based on the Nordic Semiconductor nRF54L15, featuring a 128 MHz ARM Cortex-M33 processor, extensive memory, and ultra-low power consumption for IoT, smart home, and industrial wireless applications.
Features
- Bluetooth 6.0 with data rates from 125 kbps to 2 Mbps.
- ARM Cortex-M33 processor running at 128 MHz for efficient task handling.
- 1524 KB flash memory and 256 KB RAM for complex application firmware.
- Ultra-low power operation: 10 mA peak current, 3.0 µA idle current.
- Compact 21 x 13.8 x 2.3 mm footprint with integrated PCB trace antenna.
Out of stock
The MOKO Smart Smart MK19 module integrates the Nordic Semiconductor Semiconductor nRF54L15 System-on-Chip (SoC), delivering a robust Bluetooth Low Energy 6.0 wireless solution. Its ARM Cortex-M33 core provides the computational power needed for advanced IoT protocols and application logic, supported by substantial non-volatile and volatile memory.
Engineered for energy efficiency, the module operates on a wide 1.7V to 3.6V DC supply, making it suitable for battery-powered deployments. Its extended industrial temperature range ensures reliable performance in diverse environmental conditions, from smart sensors to automation control nodes.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.1 × 1.38 × 0.23 cm |
