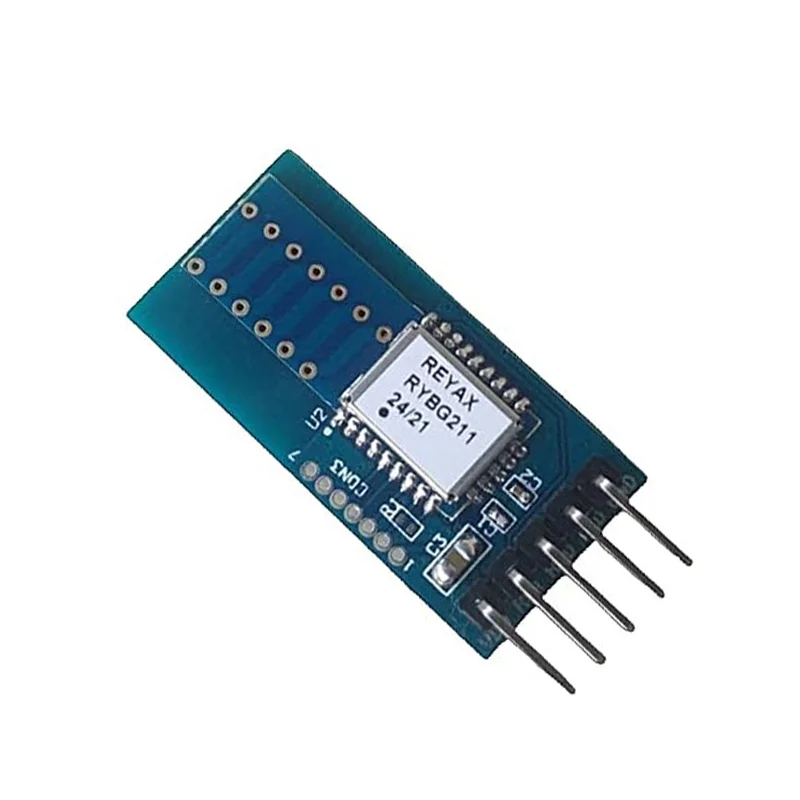

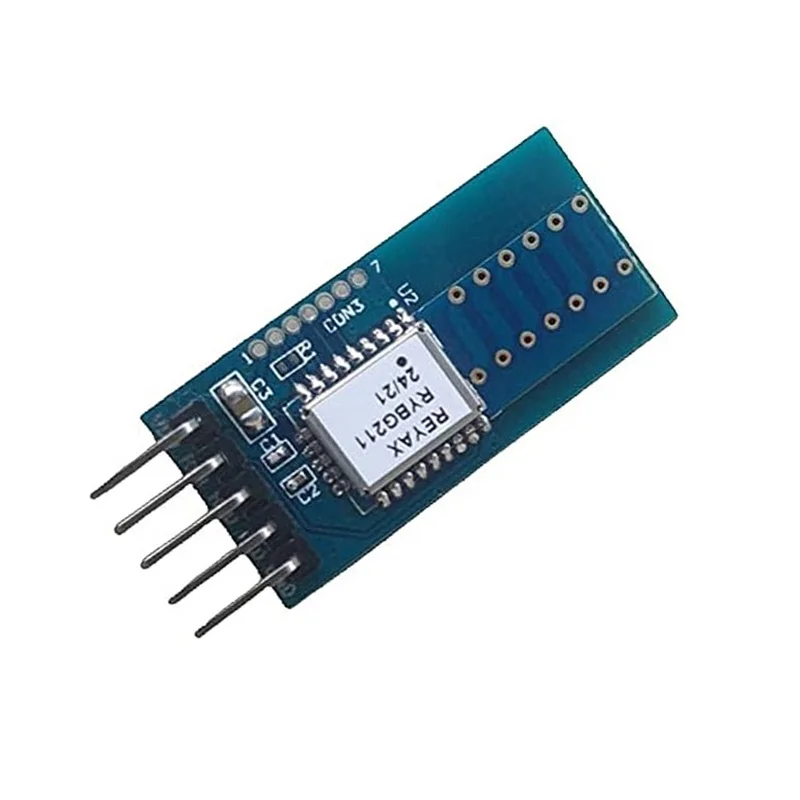

Reyax RYBG211_LITE Bluetooth 5.1 Module w/ Integrated Antenna
The Reyax RYBG211_LITE is a high-power, long-range Bluetooth 5.1 Low Energy (BLE) module featuring an integrated PCB antenna and controlled via AT commands for easy integration into IoT and smart device applications.
Features
- Bluetooth 5.1 Low Energy (BLE) module with a high-power +20dBm RF output for extended wireless range.
- Powered by a Silicon Labs 32-bit ARM Cortex-M33 core for robust processing and low-power operation.
- Integrated PCB antenna with a metal cover provides EMI shielding and simplifies board design.
- Configurable via AT commands over UART (9600-57600 bps) for rapid prototyping and deployment.
- Wide operating voltage (1.71V-3.8V) and industrial temperature range (-40°C to +85°C) for harsh environments.
Out of stock
The Reyax RYBG211_LITE is a feature-rich Bluetooth 5.1 Low Energy transceiver module designed for developers requiring reliable, long-range wireless connectivity. Its core is a Silicon Labs EFR32-based chipset with a 32-bit ARM Cortex-M33 processor, balancing processing capability with the low-power demands essential for battery-powered IoT nodes.
The module’s standout feature is its +20dBm (100mW) RF output power, significantly extending the operational range compared to standard BLE modules. This is coupled with an integrated PCB antenna and a metal shielding cover that minimizes EMI interference, ensuring stable RF performance in electrically noisy environments. Control and configuration are streamlined through a comprehensive set of vendor-specific AT commands sent via a UART interface.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
