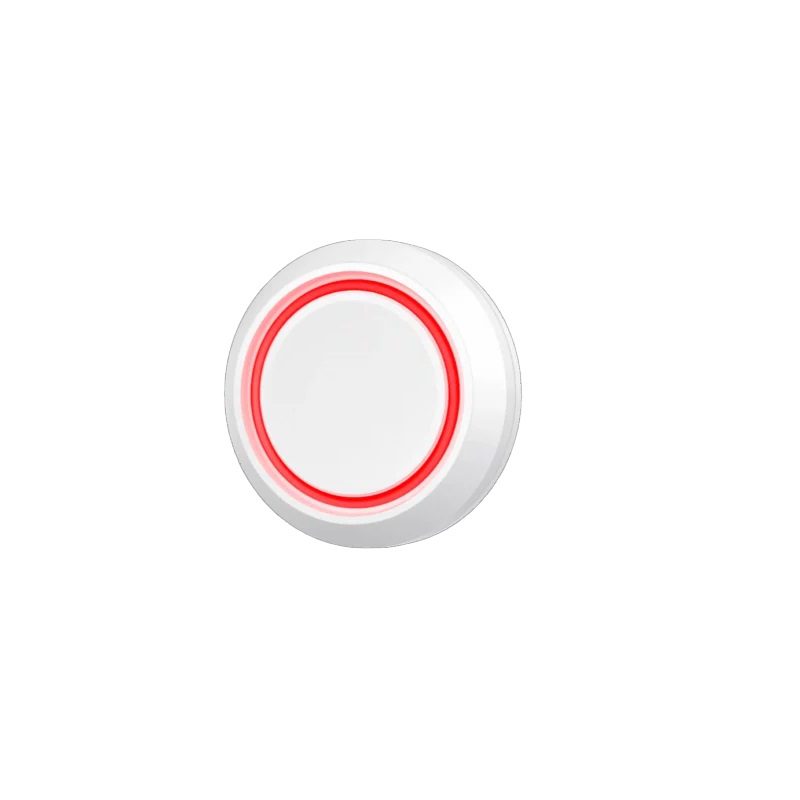

MOKO Smart Smart B3 (160m) BLE 5.0 Emergency Button - Replaceable Battery

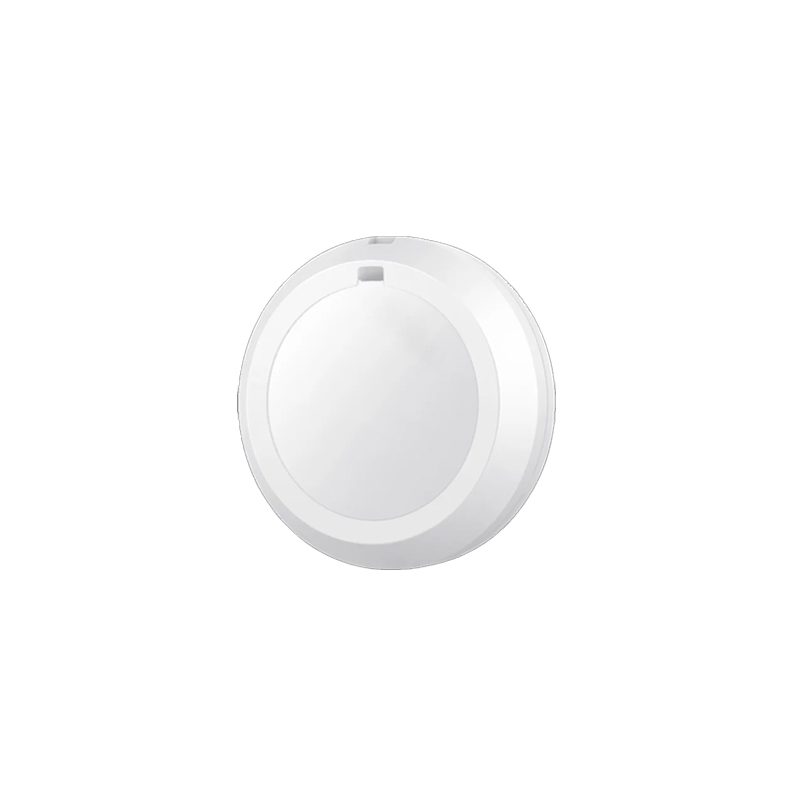

MOKO Smart Smart B3 (160m) BLE 5.0 Emergency Button - Replaceable Battery - Image 2
SKU: SENS-3314
📋 GST Invoice Available

MOKO Smart Smart B3 (160m) BLE 5.0 Emergency Button - Replaceable Battery

₹1,999.00 (Inclusive of all taxes)
Out of Stock

The MOKO Smart Smart B3 is a BLE 5.0 emergency button module designed for integration into personal safety and asset tracking systems. It features a programmable panic button, a replaceable battery, and a 160m transmission range, making it suitable for IoT applications requiring reliable, low-power wireless alerts.

Features

  • BLE 5.0 wireless connectivity for low-power, long-range (160m) communication.
  • Programmable emergency button with large, easy-to-press actuator and multi-color LED status indicator.
  • User-replaceable 600mAh lithium battery with an estimated multi-year operational lifespan.
  • Integrated accelerometer and buzzer for motion-triggered alerts and immediate feedback.
  • Compact, durable polycarbonate housing with multiple mounting options (3M tape, lanyard, bracket).

Out of stock

Description

The MOKO Smart Smart B3 Emergency Button is a compact wireless module built around Bluetooth Low Energy (BLE 5.0) technology, engineered for reliable panic signaling in safety-critical applications. Its core function is to transmit a pre-configured alert signal over a 160-meter line-of-sight range when its large tactile button is pressed, providing a direct communication link to a central gateway, smartphone, or monitoring system.

Constructed from durable polycarbonate (PC), the module is designed for daily wear and harsh environments, with an operating temperature range of -25°C to +60°C. The inclusion of an accelerometer allows for advanced features like fall detection or tamper alerts, while the internal buzzer and configurable RGB LED provide immediate user feedback. Its user-serviceable 600mAh battery ensures long-term deployment without specialized tools for replacement.

Key Features

  • Bluetooth Low Energy 5.0 (BLE 5.0) module ensures extended battery life and robust wireless connectivity.
  • High-visibility panic button with a distinct tactile response for reliable emergency activation.
  • Multi-color circular LED ring provides clear visual status indications (red, green, blue).
  • User-replaceable 600mAh lithium battery supports multi-year operation, reducing long-term maintenance.
  • 160-meter maximum transmission range in open areas for flexible placement.
  • Integrated 3-axis accelerometer enables motion-based triggering and activity monitoring.
  • Internal buzzer delivers audible confirmation upon button press or alarm condition.
  • Lightweight (24g) and compact (50mm x 50mm) design facilitates discreet wearing or mounting.
  • Durable polycarbonate housing offers impact resistance and protection against everyday use.
  • Versatile mounting via included 3M adhesive tape, lanyard hole, or optional bracket.

Applications

  • Personal emergency response systems (PERS) for elderly or at-risk individuals, enabling call-for-help functionality.
  • Workplace safety solutions in industrial settings, providing a quick alert mechanism for workers in hazardous areas.
  • Asset and fleet management tracking, where the button can be used for manual check-ins or incident reporting.
  • Healthcare patient monitoring in hospitals or care homes, offering a direct nurse call button alternative.
  • School or campus security systems, allowing students or staff to discreetly signal for assistance.

Technical Specifications

Item TypeBluetooth Emergency Button Module
Model NumberB3 (160m)
Wireless ProtocolBluetooth Low Energy (BLE 5.0)
Transmission Range160 meters (open area)
Housing MaterialPolycarbonate (PC)
Operating Temperature-25°C to +60°C
Dimensions (L x W)50 mm x 50 mm
Weight24 grams
BatteryReplaceable 600mAh Lithium
Additional Sensors3-Axis Accelerometer, Buzzer
IndicatorRGB LED Ring
Mounting Options3M Tape, Lanyard, Bracket

Frequently Asked Questions

What is the wireless range of the MOKO Smart B3 button, and what factors affect it?

The specified maximum range is 160 meters (525 feet) in an open, line-of-sight environment. Actual range will be reduced by physical obstructions like walls, metal structures, and electromagnetic interference. For reliable operation in buildings, plan for effective ranges of 20-50 meters through interior walls.

How do I program or configure the button's functionality?

The B3 button is designed to work with a central gateway or a companion mobile app provided by MOKO Smart or your system integrator. Programming typically involves connecting the button to the gateway via BLE and using configuration software to define the alert message, LED behavior, and accelerometer sensitivity settings for features like fall detection.

What type of battery does it use, and how do I replace it?

It uses a user-replaceable 600mAh lithium battery (specific model number may vary). To replace it, open the housing compartment, swap the old battery with a new one of the same specification, and reseal the unit. The estimated lifespan is up to 3.5 years under typical usage, but this depends on transmission frequency and configured features.

Can this button be integrated with third-party smart home or industrial systems?

Yes, integration is possible via its BLE 5.0 interface. Developers can use the published BLE service and characteristic UUIDs to read the button press event, accelerometer data, and battery level. It can connect to Raspberry Pi, ESP32, or other BLE-capable microcontrollers, or to commercial gateways that support custom BLE device onboarding.

What are the mounting options for this device?

The module supports multiple mounting methods. It includes a strong 3M adhesive tape for permanent wall or surface mounting. It also features a lanyard hole for wearable use around the neck or wrist. For more secure installations, an optional bracket (may be sold separately) can be used for screw-mounted fixtures.

Package Includes

  • 1 x MOKO Smart Smart B3 Emergency Button Module

Additional Information

Weight 0.024 kg
Dimensions 5 × 5 cm
