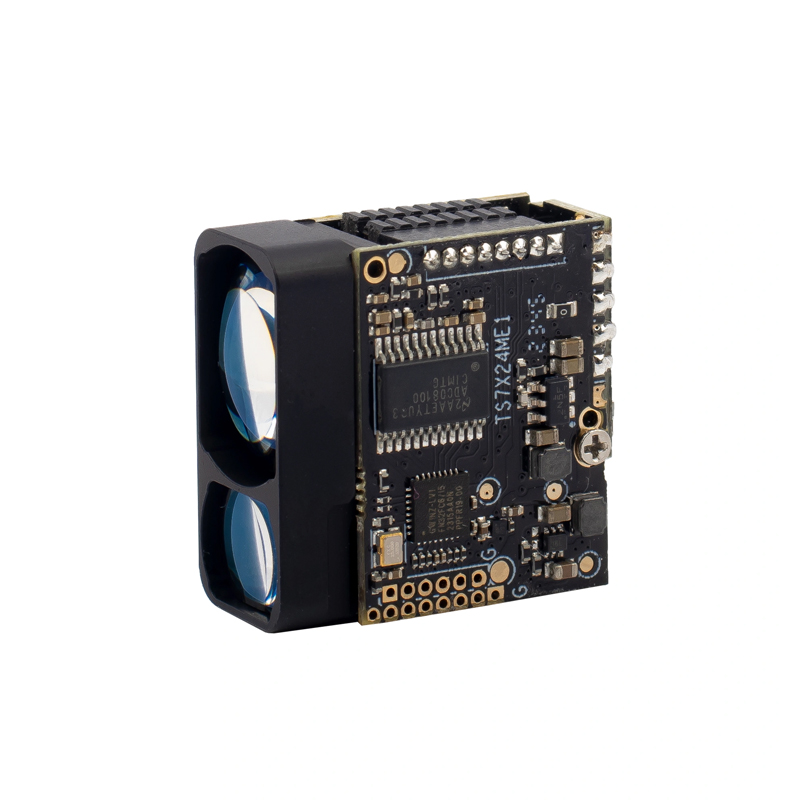

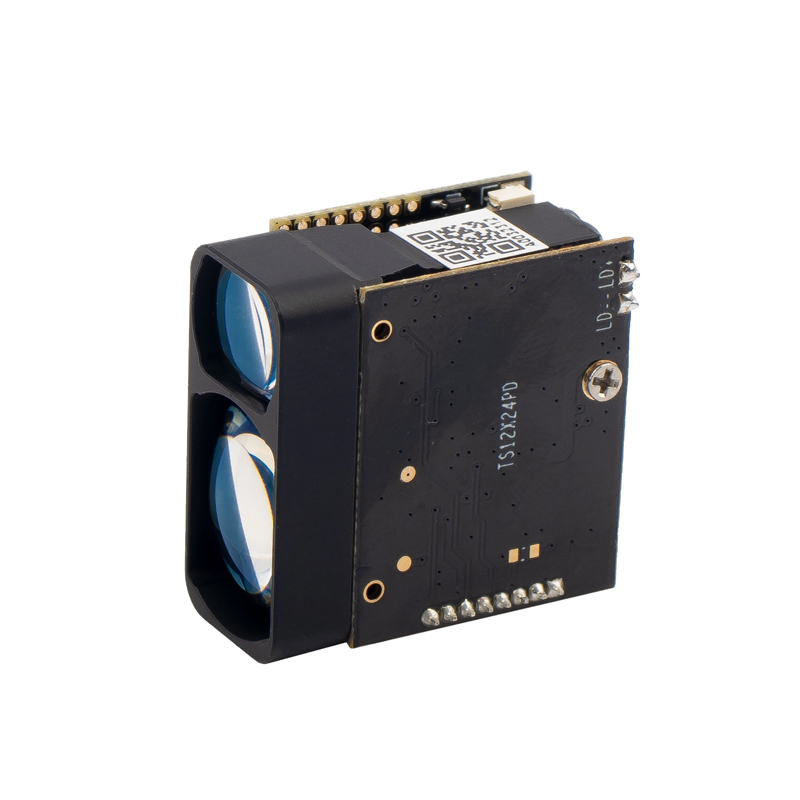

Meskernel TS1224 1500M Laser Measurement Module - USB to TTL Interface, 905nm Class 1

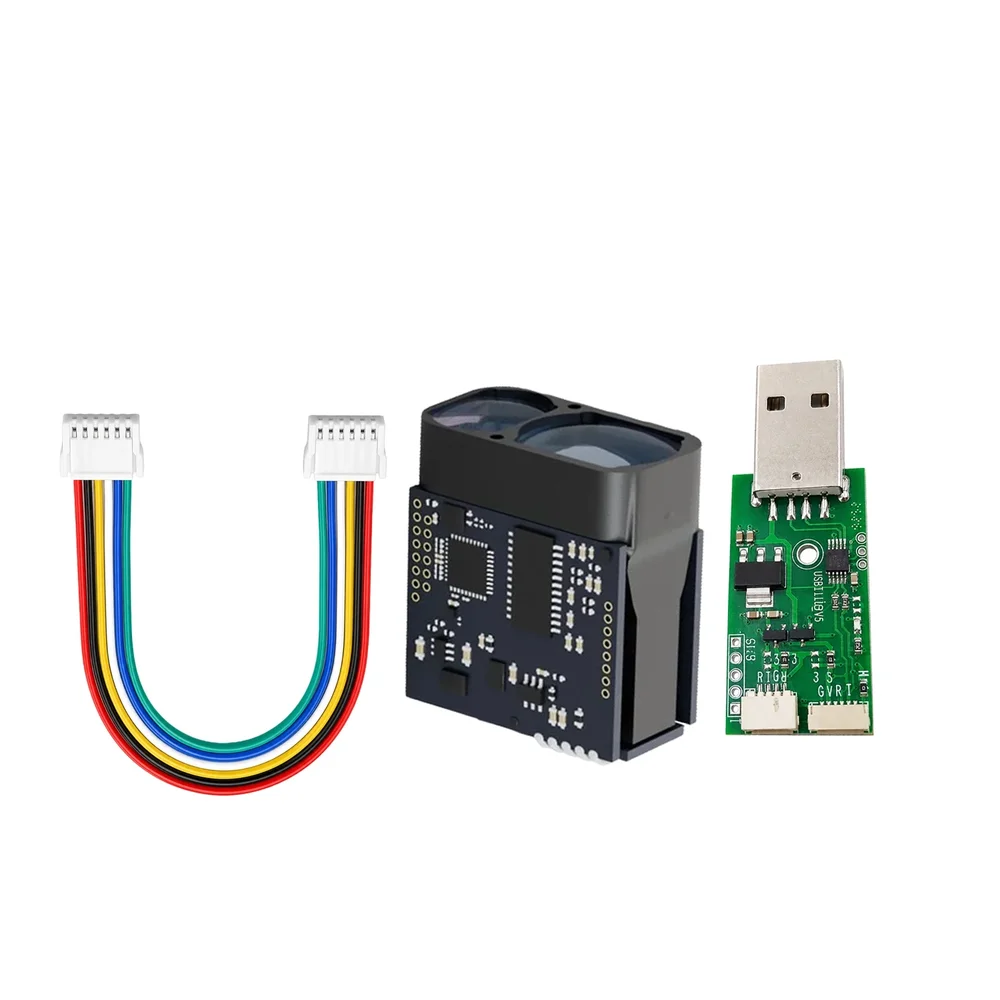

The Meskernel TS1224 is a long-range laser distance measurement module utilizing 905nm Class 1 pulse laser ranging technology for distances up to 1500 meters. It communicates via a 3.3V UART TTL interface, making it compatible with microcontrollers (Arduino, ESP32, STM32), industrial PLCs, and PCs via the included USB-to-TTL converter.
Features
- Ultra-long-range measurement capability up to 1500 meters.
- High-precision pulse laser ranging with ±1m accuracy below 200m.
- Class 1 (IEC 60825-1:2014) eye-safe 905nm invisible semiconductor laser.
- 3.3V UART TTL communication interface for easy MCU/PC integration.
- Low power consumption of 210mW at 3.3V supply voltage.
Out of stock
The Meskernel TS1224 employs advanced pulse laser ranging technology with a 905nm wavelength, Class 1 laser to deliver safe, reliable, and accurate distance measurements from 5m to 1500m. Its high-precision timing circuitry ensures stable readings with an accuracy of ±1m for targets under 200m and ±0.5% for longer ranges.
Designed for seamless system integration, the module outputs data via a 3.3V logic UART interface, compatible with a wide range of embedded platforms and industrial controllers. Its compact, robust construction and low power profile make it suitable for demanding field applications where size, weight, and energy efficiency are critical.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 4 × 4 × 3 cm |
