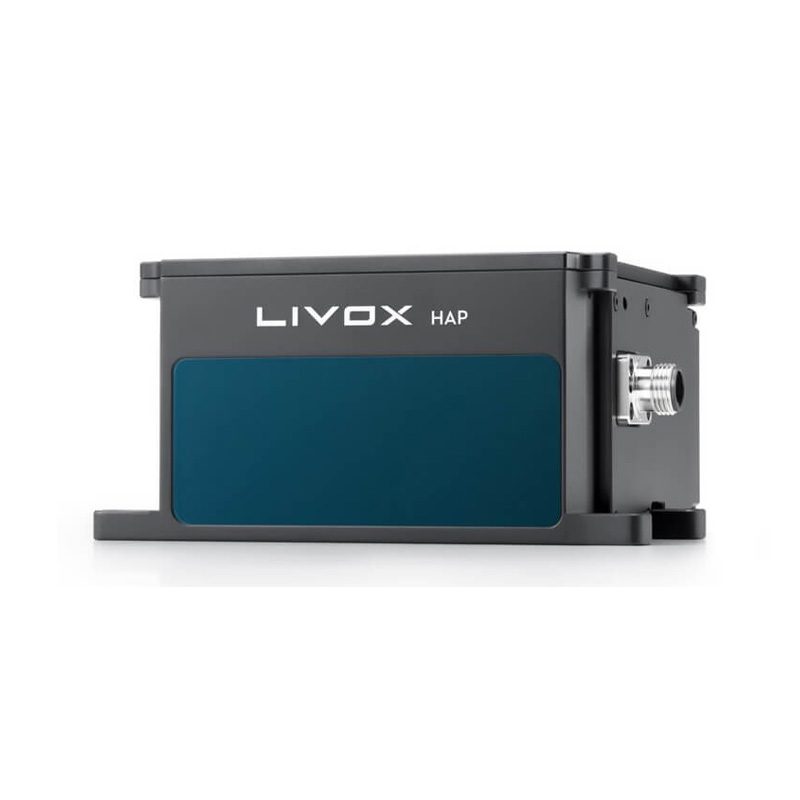

Livox Horizon HAP Automotive LiDAR Sensor Module, 150m Range, 120°x25° FOV, 452k pts/s, IP67/IPX9K
The Livox Horizon HAP is an automotive-grade LiDAR sensor module designed for ADAS and autonomous vehicle applications, featuring a 150m detection range, a wide 120° x 25° field of view, and high-speed 452,000 points/second data output. It interfaces via 100BASE-T1/TX Ethernet and operates from a 9-18V DC supply, meeting stringent IP67/IPX9K environmental standards.
Features
- Automotive-grade LiDAR with 150m detection range for long-range obstacle identification.
- Wide 120° horizontal x 25° vertical field of view (FOV) for comprehensive environmental coverage.
- High-resolution 0.18° x 0.23° angular resolution and 452,000 points/second data rate.
- Rugged IP67 and IPX9K protection rating, validated through 70+ automotive reliability tests.
- Low 12W typical power consumption with 9-18V DC input and 100BASE-T1/TX Ethernet interface.
Out of stock
The Livox Horizon HAP employs a multi-beam scanning LiDAR principle to generate a dense, real-time 3D point cloud, equivalent to a 144-line system. Its 905 nm laser and advanced optics deliver precise distance measurement and object classification, critical for path planning and collision avoidance in dynamic driving environments.
Engineered for automotive integration, the module operates across an extreme temperature range of -40°F to 185°F (-40°C to 85°C) and features robust sealing against dust and high-pressure water jets. The integrated gPTP synchronization ensures precise timing alignment in multi-sensor arrays, while the compact, lightweight housing facilitates installation in vehicle rooflines or bumpers.
Additional Information
| Weight | 1.12 kg |
|---|---|
| Dimensions | 10.5 × 13.16 × 6.5 cm |
