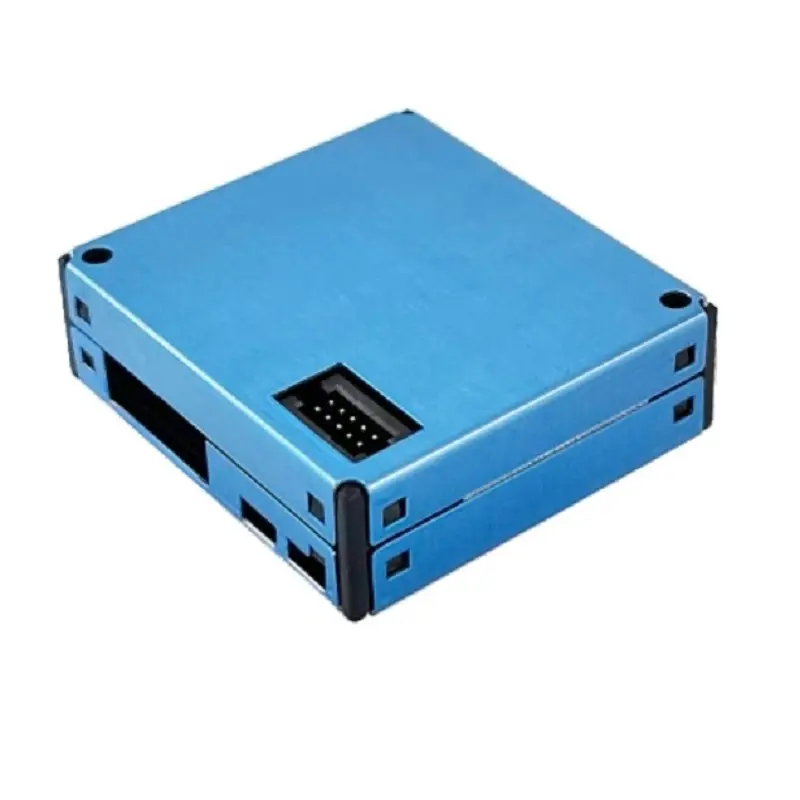

MemsFrontier MPM11-AD Laser PM Sensor Module - Side Air Inlets/Outlets, 10-Pin, UART/I2C/PWM Output
The MemsFrontier MPM11-AD is a laser-based particulate matter sensor module with side-mounted air inlets/outlets, designed for precise monitoring of PM1.0, PM2.5, and PM10 concentrations. It provides flexible digital output via UART, I2C, or PWM interfaces, making it compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi for air quality monitoring applications.
Features
- Laser scattering principle for high-accuracy PM1.0, PM2.5, and PM10 detection.
- Flexible digital output options: UART, I2C, or PWM signal.
- Compact 10-pin module with side-mounted air inlets/outlets for versatile integration.
- Fast power-on settling time of less than 10 seconds for real-time data.
- Wide operating temperature range from -10°C to +60°C.
Out of stock
The MPM11-AD sensor utilizes a laser scattering detection method to measure particulate matter concentrations in the air with a high degree of accuracy. Its side-mounted airflow design ensures reliable sampling in various orientations and environments. The module outputs precise mass concentration data for PM1.0, PM2.5, and PM10 particles within a range of 0 to 1000 µg/m³, with a resolution of 1 µg/m³.
Engineered for stability, the sensor features a robust construction suitable for continuous monitoring. It operates on a 5V DC supply with a typical current draw under 85mA, making it suitable for portable and fixed installations. The digital interfaces allow for seamless integration into environmental monitoring systems, HVAC controls, and industrial air quality assessment platforms.
Additional Information
| Weight | 0.028 kg |
|---|---|

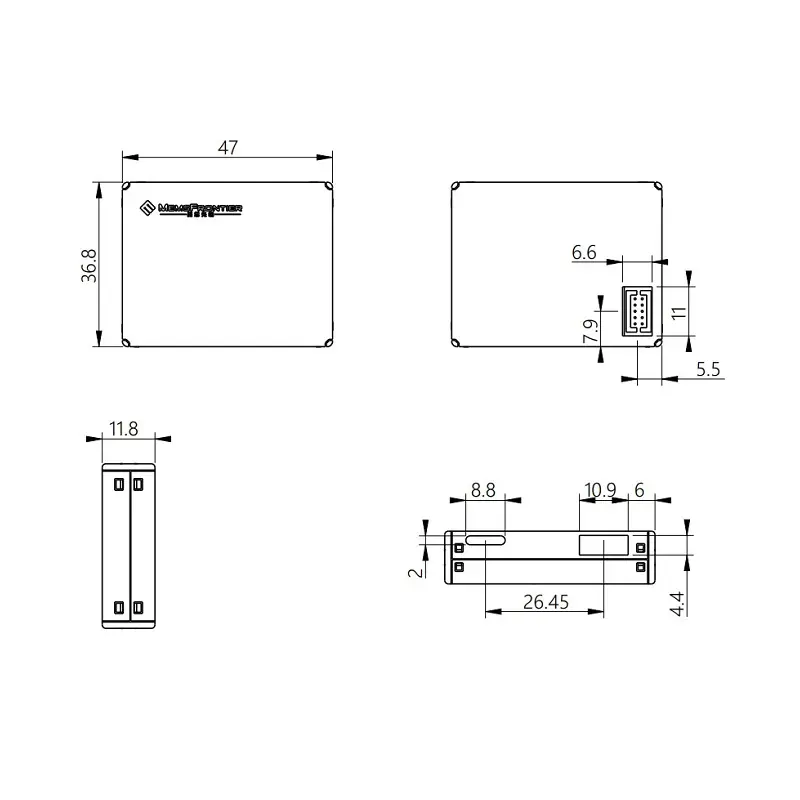

| Dimensions | 4.7 × 3.68 × 1.18 cm |
