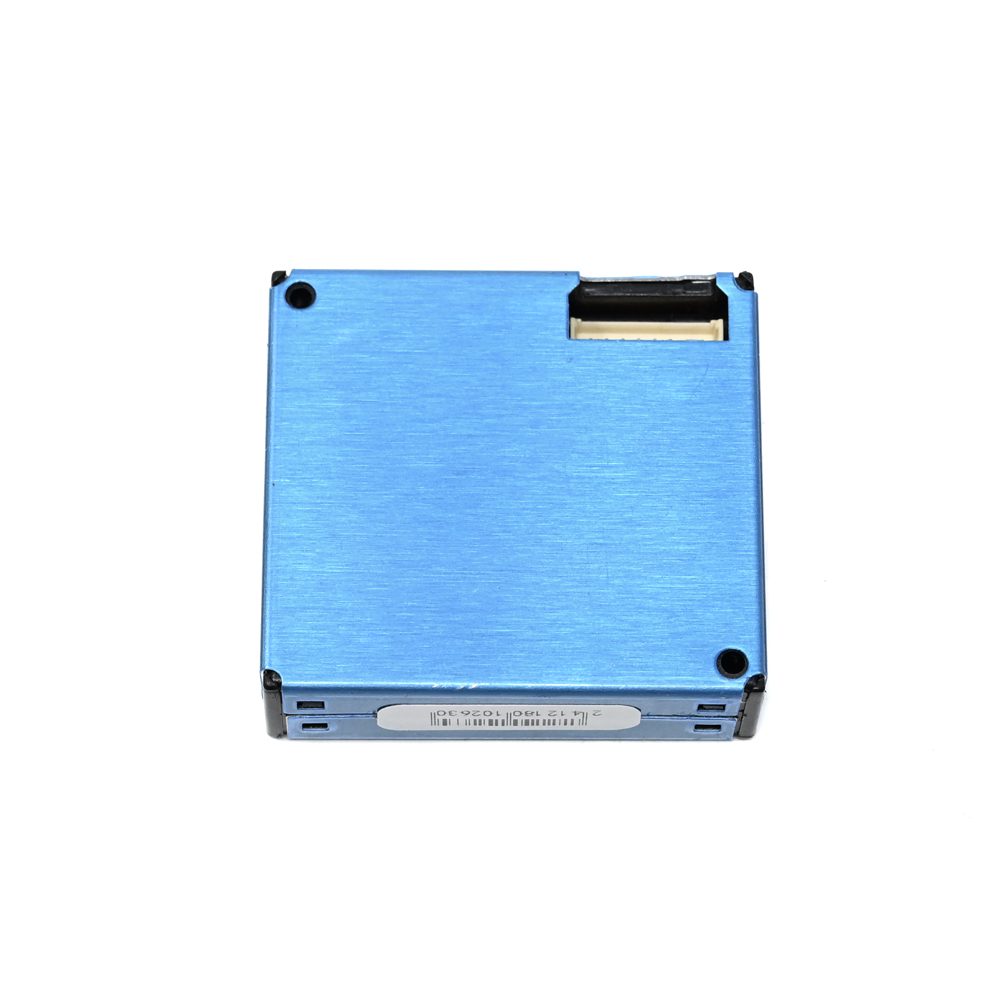

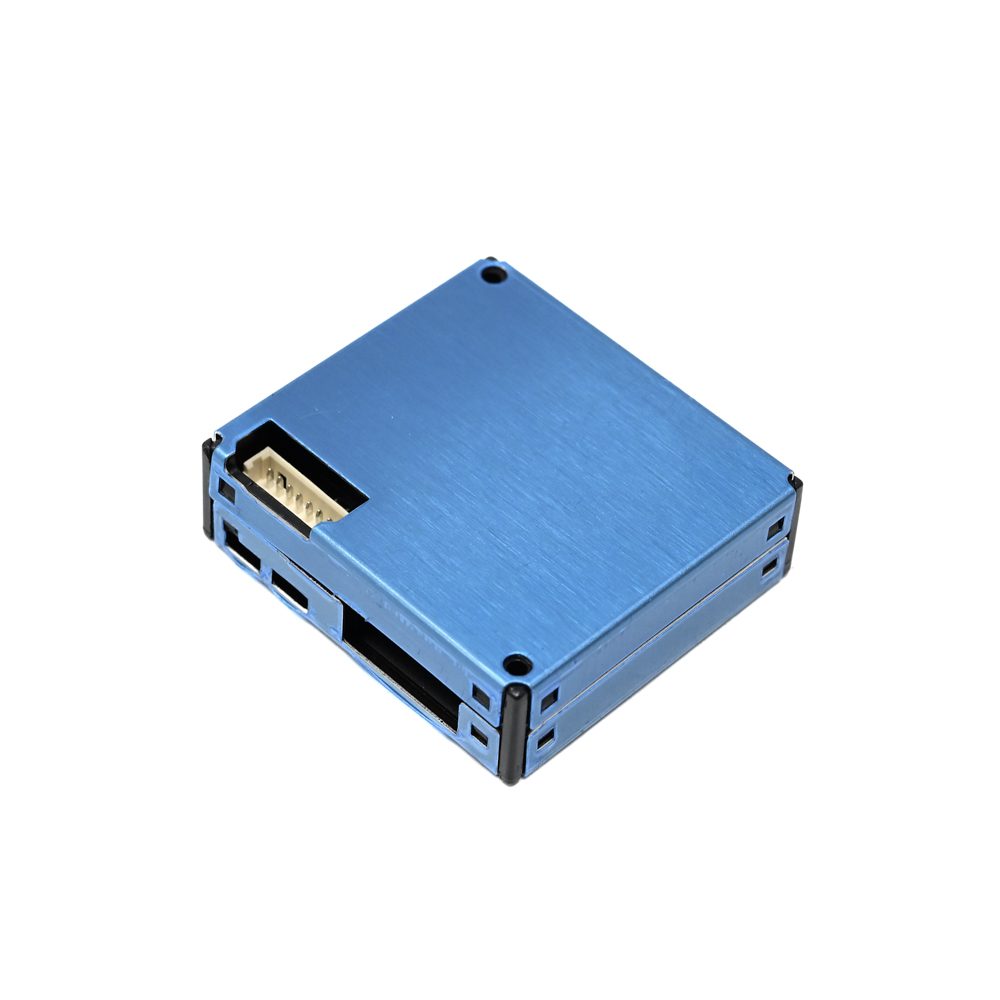

MemsFrontier MPM10-AS Laser PM Sensor - Side Air Inlet/Outlet, 8-Pin, UART/I2C/PWM
The MemsFrontier MPM10-AS is a laser-based particulate matter sensor designed for precise air quality monitoring, measuring PM1.0, PM2.5, and PM10 concentrations. It features a side-mounted airflow design and offers flexible digital output via UART, I2C, or PWM, making it compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi for environmental monitoring systems.
Features
- Laser scattering principle for PM1.0, PM2.5, and PM10 detection (0-1000 µg/m³).
- Flexible digital interface: UART, I2C, or PWM output for easy system integration.
- High accuracy: ±15 µg/m³ or ±15% reading under standard conditions (25°C, 50% RH).
- Compact, side-inlet/outlet design (37.8 x 34.8 x 11.8 mm) for versatile mounting.
- Low power consumption with ≤85 mA operating current and fast <10s startup time.
Out of stock
The MPM10-AS utilizes a laser scattering detection principle to accurately quantify particulate matter concentrations in the air. Its optical system is engineered for stability, providing reliable measurements of PM1.0, PM2.5, and PM10 within a range of 0 to 1000 micrograms per Cubic Sensor meter. The sensor’s side-mounted air inlet and outlet design promotes consistent airflow and sampling, reducing dead zones for more representative readings.
Designed for integration into professional monitoring networks, the module outputs calibrated data through user-selectable digital protocols (UART, I2C, or PWM). It operates from a single 5V DC supply and is built to withstand environmental conditions from -10°C to +60°C with 0-95% RH (non-condensing), ensuring durability in both indoor and outdoor applications. The compact form factor and 8-pin header facilitate installation in air quality stations, HVAC systems, and portable monitoring devices.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 3.78 × 3.48 × 1.18 cm |
