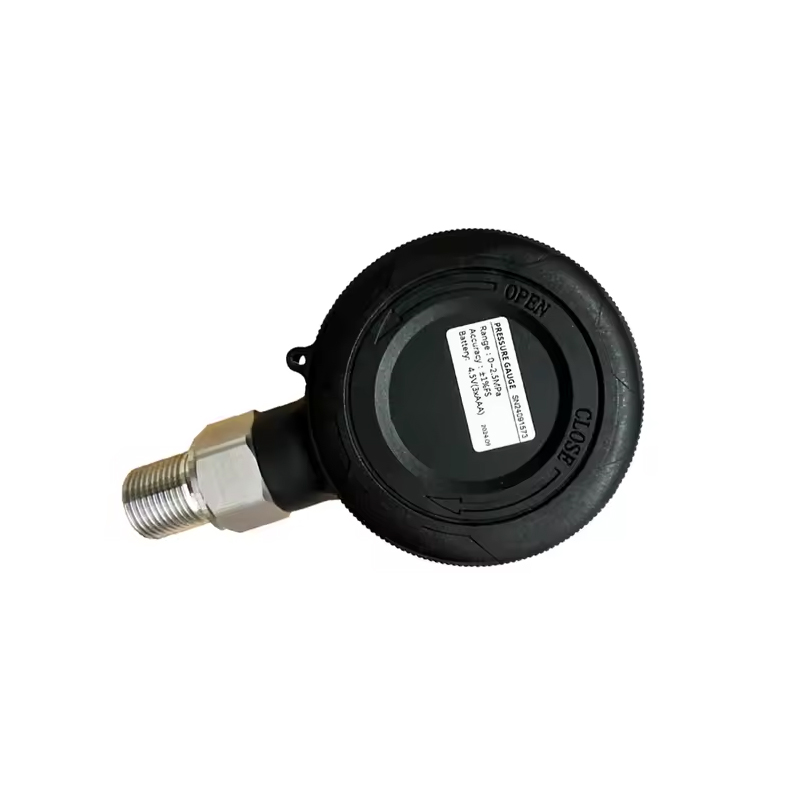

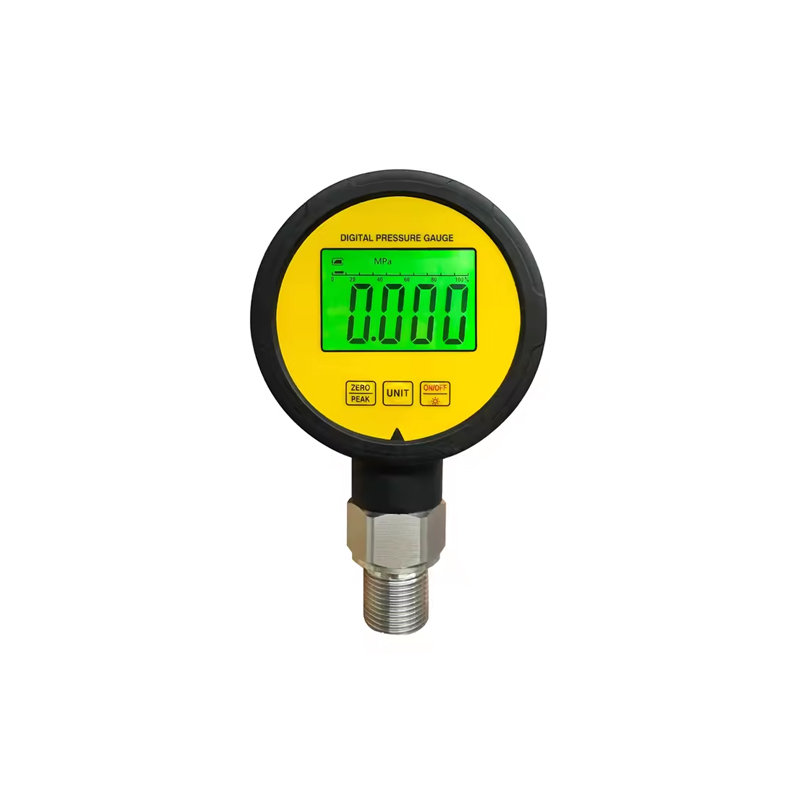

ME260P 4-20mA Battery Powered Digital Pressure Gauge - IP65, 0-100MPa, NPT 1/4"
The ME260P is a battery-powered digital pressure gauge featuring a 4-20mA analog output for direct integration into industrial control loops, PLCs, and data acquisition systems. It provides precise pressure measurement up to 100 MPa with a clear backlit LCD display and rugged IP65-rated housing for field use.
Features
- High-precision 0-100 MPa measurement range with stainless steel sensor
- Loop-powered 4-20mA analog output for real-time process monitoring
- Rugged IP65-rated ABS housing with NBR seals for harsh environments
- Backlit LCD display with unit switching (MPa, bar, psi) and min/max logging
- Long battery life with low-power alert and 3.6V supply operation
Out of stock
The ME260P digital pressure gauge utilizes a robust stainless steel pressure sensor coupled with a 24-bit ADC and industrial-grade microcontroller to deliver accurate and stable readings across its full 0-100 MPa range. Its 4-20mA current loop output provides a noise-immune signal ideal for long-distance transmission to PLCs, SCADA systems, or data loggers, ensuring reliable integration into industrial monitoring networks.
Designed for field service and harsh environments, the unit features a durable ABS housing with an IP65 rating, protecting against dust ingress and low-pressure water jets. The backlit LCD ensures clear visibility of pressure values, selected units, battery status, and captured minimum/maximum readings, facilitating maintenance and calibration tasks in varied lighting conditions.
Additional Information
| Weight | 0.233 kg |
|---|---|
| Dimensions | 14 × 8 cm |
