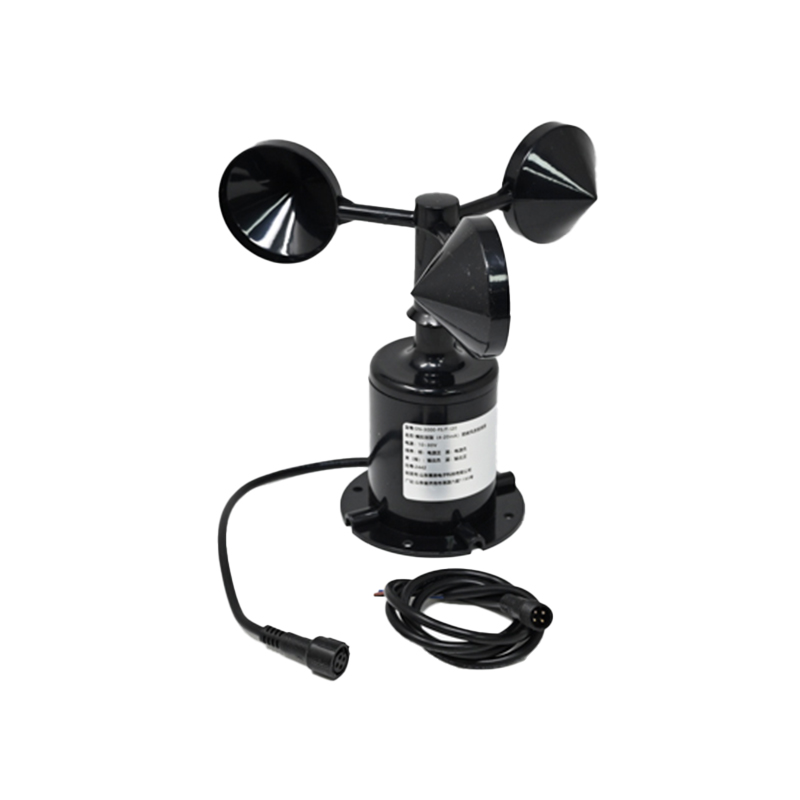

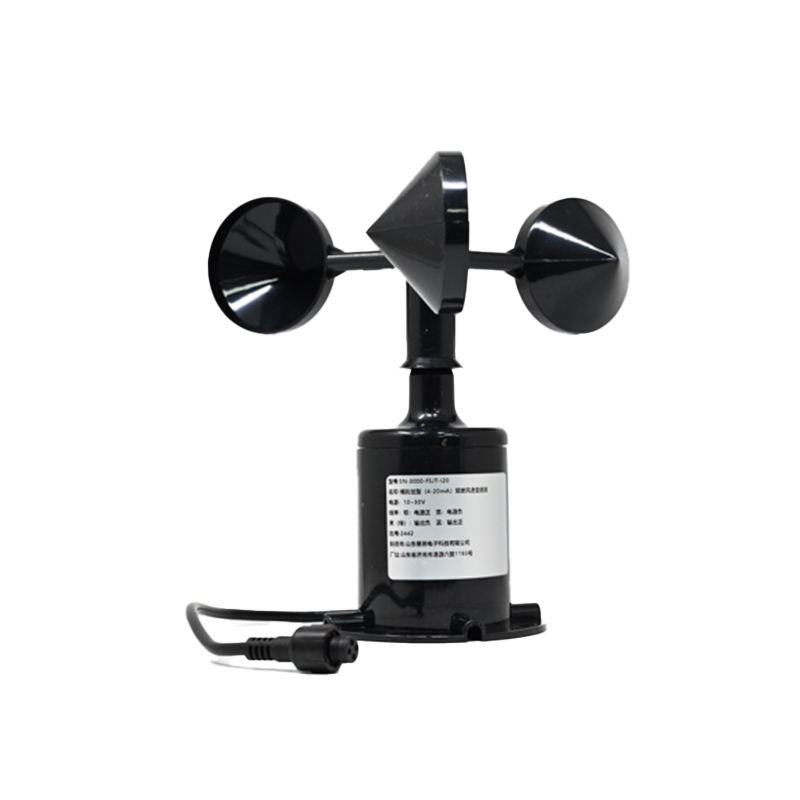

Pro-Range SN-3000-FSJT-I20 Wind Speed Sensor 0-70 m/s, 4-20mA Output, Polycarbonate Shell
The Pro-Range SN-3000-FSJT-I20 is a robust 4-20mA output wind speed sensor designed for industrial and meteorological applications. Featuring a corrosion-resistant polycarbonate shell and a precision three-cup anemometer design, it provides reliable wind speed data from 0 to 70 m/s for integration with PLCs, SCADA systems, and data loggers.
Features
- Wide measurement range from 0 to 70 m/s with high 0.0875 m/s resolution.
- Outputs a standard 4-20mA analog signal for direct PLC and industrial controller interfacing.
- Constructed with durable, corrosion-resistant polycarbonate composite housing for long-term outdoor use.
- Features a low-startup threshold of ≤0.2 m/s and high-performance imported bearings for sensitive, accurate response.
- Powered by a wide 12-24V DC supply, compatible with standard industrial power systems.
Out of stock
The SN-3000-FSJT-I20 wind speed sensor employs a classic three-cup anemometer design, where cup rotation speed is directly proportional to wind velocity. This mechanical motion is converted into a precise 4-20mA current loop signal, providing a noise-immune output ideal for long-distance transmission in industrial environments. The sensor’s internal high-performance bearings ensure minimal rotational resistance and consistent accuracy across its operational lifespan.
Engineered for harsh environments, its polycarbonate shell offers excellent resistance to UV radiation, corrosion, and mechanical impact. The bottom cable outlet design eliminates common failure points associated with top-mounted connectors, enhancing long-term weatherproof integrity. This sensor is a critical component for accurate wind speed monitoring in applications demanding reliability and precision.
Additional Information
| Weight | 0.317 kg |
|---|---|
| Dimensions | 18 × 18 × 20 cm |
