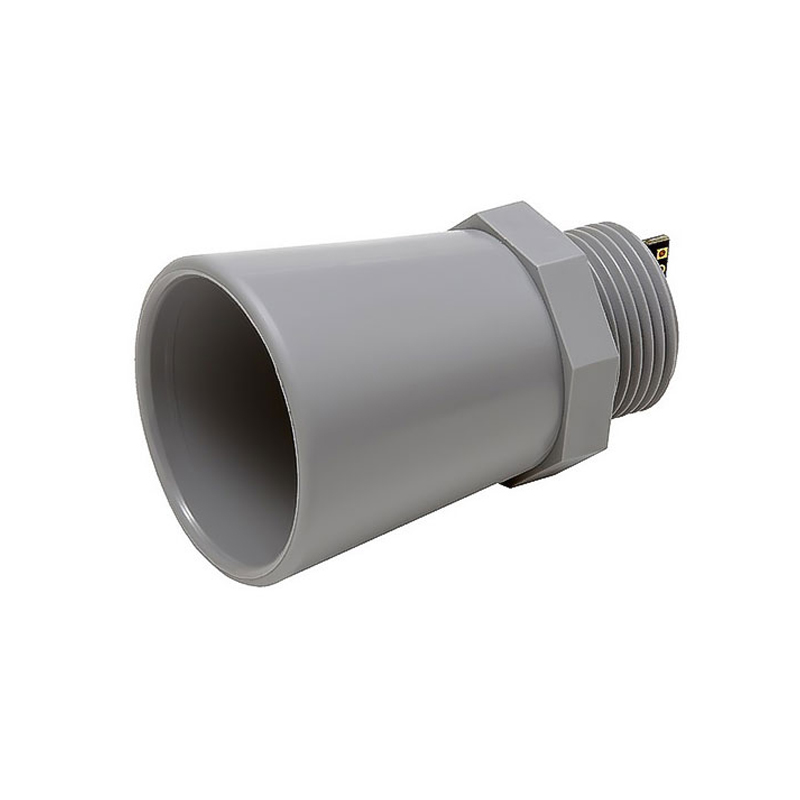

MaxBotix MB7388 HRXL-MaxSonar-WRMLT Multi-Layer Ultrasonic Sensor - IP67 PVC Housing
The MaxBotix MB7388 HRXL-MaxSonar-WRMLT is a high-resolution, weather-resistant ultrasonic distance sensor offering pulse-width, analog voltage, and TTL serial outputs. Designed for reliable outdoor and industrial applications, it features advanced multi-layer target filtering and operates from 2.7V to 5.5V for compatibility with microcontrollers and PLCs.
Features
- High-resolution 1mm distance measurement from 500mm to 10 meters.
- Advanced multi-layer target detection prioritizes the largest or closest acoustic return.
- IP67-rated PVC housing with standard 3/4-inch pipe threads for robust outdoor installation.
- Triple output options: Pulse-width, analog voltage, and TTL serial for flexible system integration.
- Low power consumption at 2.9mA average current with internal temperature compensation.
Out of stock
The MB7388 utilizes a 42kHz ultrasonic transducer paired with sophisticated firmware to deliver precise, noise-immune distance readings. Its real-time automatic calibration accounts for voltage fluctuations, humidity, and ambient acoustic noise, ensuring stable performance in dynamic environments. The sensor’s continuously variable gain and waveform signature analysis provide excellent clutter rejection, making it ideal for applications with multiple or irregular targets.
Engineered for harsh conditions, the sensor operates across an industrial temperature range of -40°C to +65°C. The compact PVC housing is sealed to IP67 standards, protecting against dust and temporary water immersion. This combination of precision, durability, and flexible electrical interfacing makes the MB7388 a premier choice for tank level monitoring, bin filling, robotics, and outdoor ranging systems.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 9 × 6 × 4 cm |
