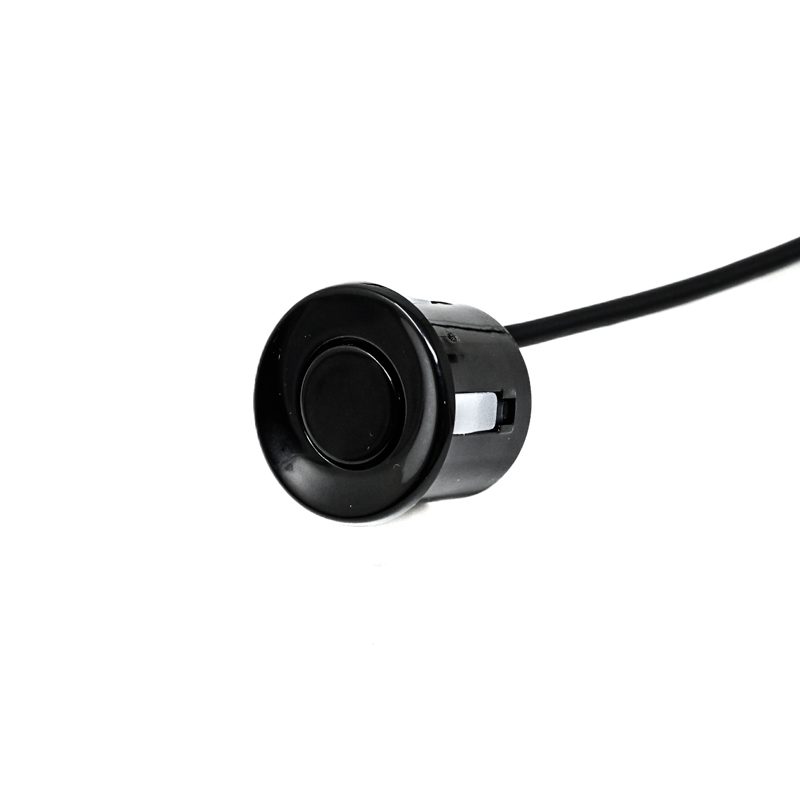

DYP-A06BLYU-V1.1 Ultrasonic Distance Sensor 30-200cm - UART Auto Output IP67 Waterproof

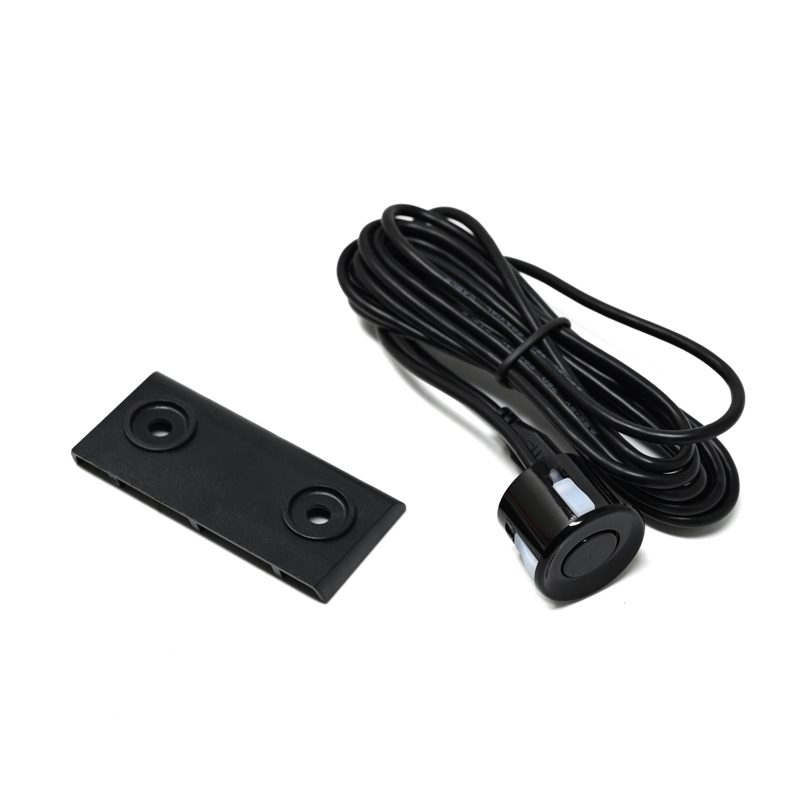

DYP-A06BLYU-V1.1 Ultrasonic Distance Sensor 30-200cm - UART Auto Output IP67 Waterproof - Image 2
DYP-A06BLYU-V1.1 Ultrasonic Distance Sensor 30-200cm - UART Auto Output IP67 Waterproof - Image 3
SKU: SENS-4015
📋 GST Invoice Available

DYP-A06BLYU-V1.1 Ultrasonic Distance Sensor 30-200cm - UART Auto Output IP67 Waterproof

₹799.00 (Inclusive of all taxes)
Out of Stock

The DYP-A06BLYU-V1.1 is an IP67 waterproof ultrasonic transceiver sensor module with a 30-200cm ranging capability. It features a UART auto-output interface for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, providing precise distance measurement for automation and robotics projects.

Features

  • Ultrasonic transceiver with 30 cm to 200 cm measurement range.
  • UART auto-output interface for direct serial communication.
  • IP67 waterproof rating for reliable operation in harsh or outdoor environments.
  • Wide operating voltage range from 3.3V to 5.0V DC.
  • Integrated temperature compensation for stable performance from -15°C to +60°C.

Out of stock

Description

The DYP-A06BLYU-V1.1 utilizes ultrasonic time-of-flight (ToF) principles to deliver accurate, non-contact distance measurements. Its integrated transceiver design and onboard signal processing provide a clean, digital UART output, simplifying system integration and reducing microcontroller overhead.

Engineered for durability, the sensor’s IP67-rated housing protects against dust ingress and temporary water immersion, making it suitable for outdoor automation, robotics navigation, and industrial object detection. The built-in temperature compensation ensures measurement stability across its specified -15°C to +60°C operating range.

Key Features

  • High-Precision Ranging: Delivers millimeter-level resolution for accurate object detection and positioning.
  • Versatile Digital Interface: UART auto-output provides straightforward serial communication with most development boards and industrial controllers.
  • Robust Environmental Protection: IP67 waterproof and dustproof construction ensures reliable long-term operation in challenging conditions.
  • Broad Power Compatibility: Operates from a 3.3V to 5.0V DC supply, compatible with both 3.3V and 5V logic systems.
  • Integrated Signal Conditioning: Onboard processing outputs stable digital data, minimizing external circuit requirements.
  • Temperature-Compensated Performance: Internal compensation algorithm maintains accuracy across the full -15°C to +60°C temperature span.
  • Optimized Power Profile: Designed for low power consumption, suitable for battery-powered or energy-sensitive applications.
  • Durable Mechanical Design: High-value build with a rugged housing for sustained use in industrial and automation environments.

Applications

  • Robotics navigation and obstacle avoidance systems.
  • Industrial automation for object presence detection and bin level monitoring.
  • Outdoor vehicle and AGV (Automated Guided Vehicle) proximity sensing.
  • Parking assistance and vehicle reverse aid systems.
  • Smart agriculture equipment for crop monitoring and machinery guidance.

Technical Specifications

Model NumberDYP-A06BLYU-V1.1
Measurement Range30 cm to 200 cm
Output InterfaceUART (Auto)
Operating Voltage3.3V to 5.0V DC
Operating Temperature-15°C to +60°C
Ingress Protection (IP)IP67
Shipping Weight0.057 kg
Shipping Dimensions16 × 13 × 4 cm

Frequently Asked Questions

What is the output format of the DYP-A06BLYU-V1.1 sensor?

The sensor provides a digital UART (Universal Asynchronous Receiver-Transmitter) auto-output. It transmits distance data as serial data packets, which can be directly read by a microcontroller's UART port without requiring additional signal conversion or complex timing calculations.

What is the power supply requirement for this ultrasonic module?

The module operates on a DC voltage range from 3.3V to 5.0V. This wide range makes it compatible with most common development platforms like 5V Arduino boards and 3.3V systems such as Raspberry Pi or ESP32. Ensure your power source can provide stable current within this range.

Can this sensor be used outdoors or in wet conditions?

Yes, the DYP-A06BLYU-V1.1 is rated IP67, meaning it is dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for outdoor applications, robotics in damp environments, and industrial settings where exposure to dust or water spray is possible.

How do I connect and communicate with this sensor using an Arduino?

Connect the sensor's VCC to Arduino 5V, GND to GND, and the TX pin of the sensor to a dedicated RX pin on the Arduino (e.g., pin 0). Use the Arduino's Serial library to read the incoming UART data packets. The sensor outputs pre-formatted distance values, simplifying the code required for measurement.

Package Includes

  • 1 x DYP-A06BLYU-V1.1 Ultrasonic Sensor Module

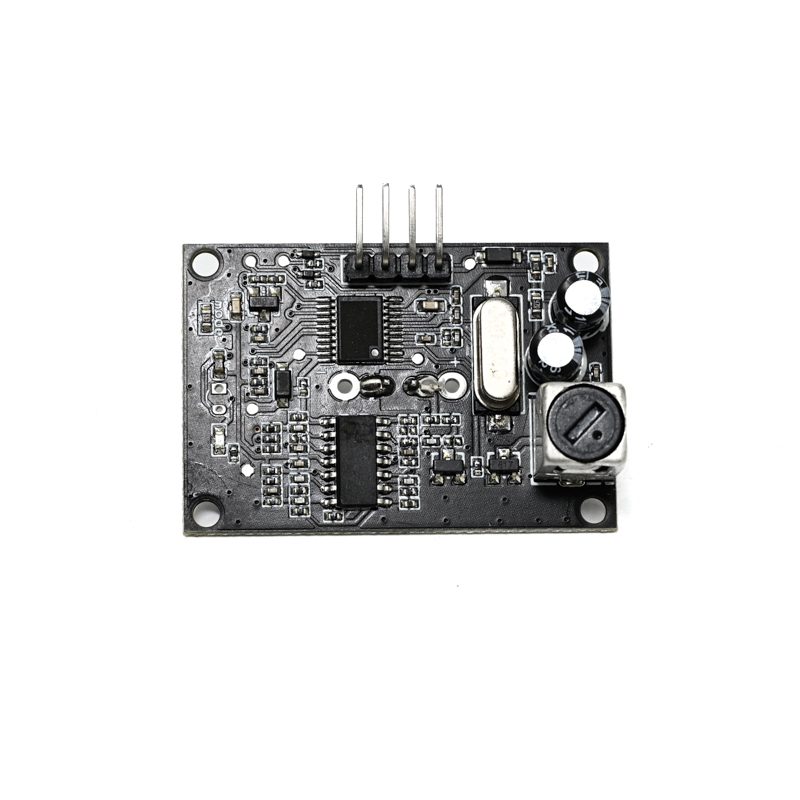

  • 1 x Driver Board

Additional Information

Weight 0.057 kg
Dimensions 16 × 13 × 4 cm
