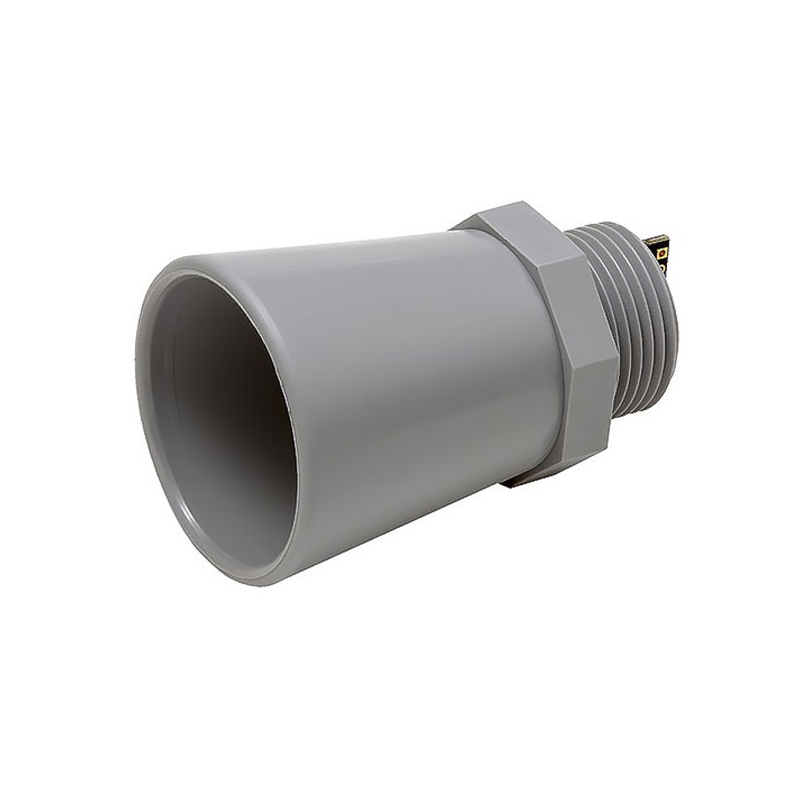

MaxBotix MB7369 HRXL-MaxSonar-WRM Ultrasonic Sensor - RS232, Analog, PWM Output
The MaxBotix MB7369 HRXL-MaxSonar-WRM is a high-performance, IP67-rated ultrasonic distance sensor offering RS232 serial, analog voltage, and pulse-width outputs. Designed for outdoor and industrial environments, it provides reliable, noise-filtered ranging from 300mm to 5000mm with 1mm resolution, compatible with 3.3V/5V microcontrollers and PLCs.
Features
- Long-range ultrasonic sensor with 300mm to 5000mm (5m) detection capability.
- Provides three output formats: RS232 serial, analog voltage, and pulse-width for flexible system integration.
- IP67-rated PVC housing designed for outdoor use and compatible with standard 3/4-inch PVC pipe fittings.
- Advanced filtering algorithms prioritize the largest acoustic return, ideal for tank/binn level measurement in cluttered environments.
- Low power operation at 2.7-5.5V DC with an average current draw of just 2.9mA.
Out of stock
The MB7369 from MaxBotix’s HRXL-MaxSonar-WR series is engineered for robust, long-distance ranging in challenging conditions. Its 42kHz ultrasonic transducer, combined with real-time waveform analysis and variable gain control, delivers stable, noise-resistant distance readings even in the presence of acoustic interference. The sensor is factory-calibrated for a narrow beam pattern, enhancing target discrimination.
This module employs sophisticated signal processing to report the distance to the largest acoustic return, effectively ignoring smaller targets and clutter. If the primary target is removed, it seamlessly switches to the next largest detectable object. This makes it exceptionally reliable for continuous monitoring applications where consistent detection of a primary object is critical, such as in bulk material level sensing.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 15 × 8 × 6 cm |
