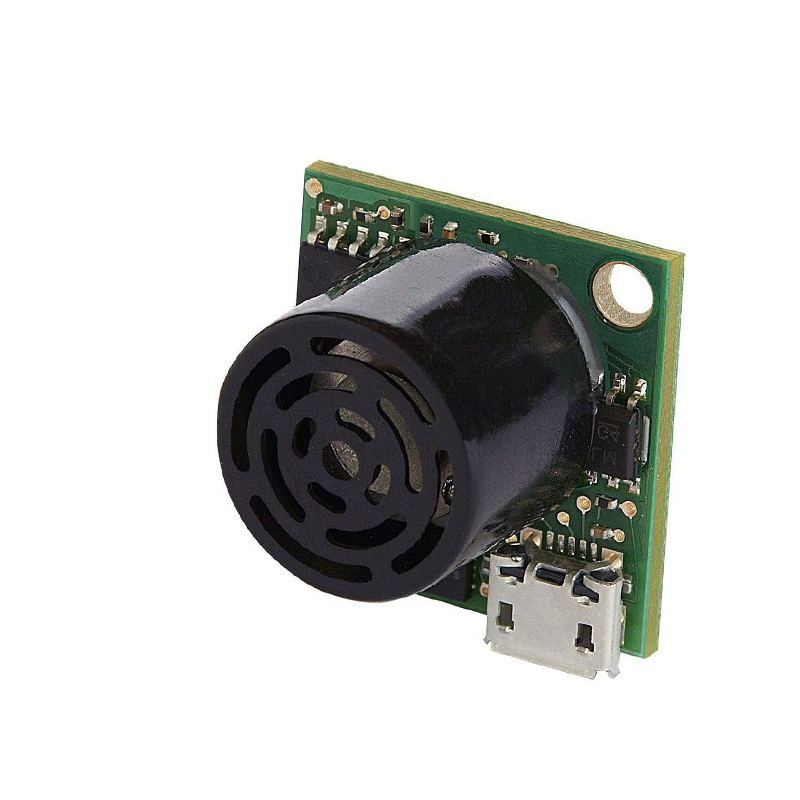

MaxBotix MB1423 HRUSB-MaxSonar-EZ2 Ultrasonic Sensor
The MaxBotix MB1423 HRUSB-MaxSonar-EZ2 is a high-resolution ultrasonic distance sensor module offering 1mm resolution and a range of 300mm to 5000mm. It provides a USB serial interface for direct connection to PCs or microcontrollers, making it suitable for robotics, industrial automation, and precision measurement applications.
Features
- High-resolution ultrasonic ranging with 1mm resolution and a 5-meter maximum range.
- USB serial interface for direct plug-and-play connectivity to computers and development systems.
- Advanced noise rejection algorithms and automatic calibration for stable, reliable readings.
- Compact, board-level module with integrated mounting holes for easy mechanical integration.
- Operates at a 4Hz read rate (~250ms between readings) for responsive distance tracking.
Out of stock
The MB1423 HRUSB-MaxSonar-EZ2 ultrasonic sensor utilizes a 42kHz transducer to provide precise, non-contact distance measurements. It employs high-output acoustic power, continuously variable gain, and real-time waveform signature analysis to deliver virtually noise-free readings, even in acoustically challenging environments. The sensor’s design offers an excellent compromise between sensitivity and side object rejection.
This compact module, measuring less than one Cubic Sensor inch, is engineered for straightforward integration into a wide array of projects and products. Its USB interface outputs serial data, simplifying communication with systems like Raspberry Pi, industrial PCs, or data acquisition units without requiring additional signal conditioning circuitry.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 7 × 8 × 4 cm |
