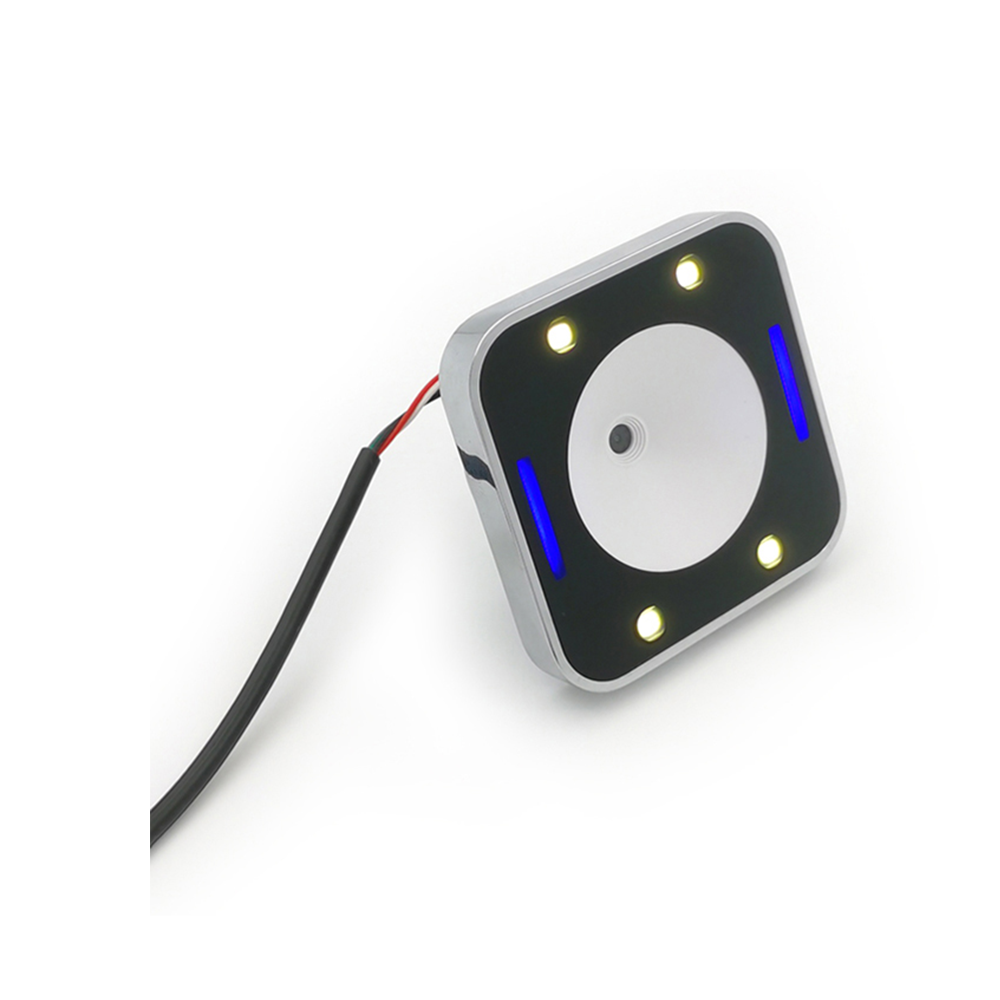

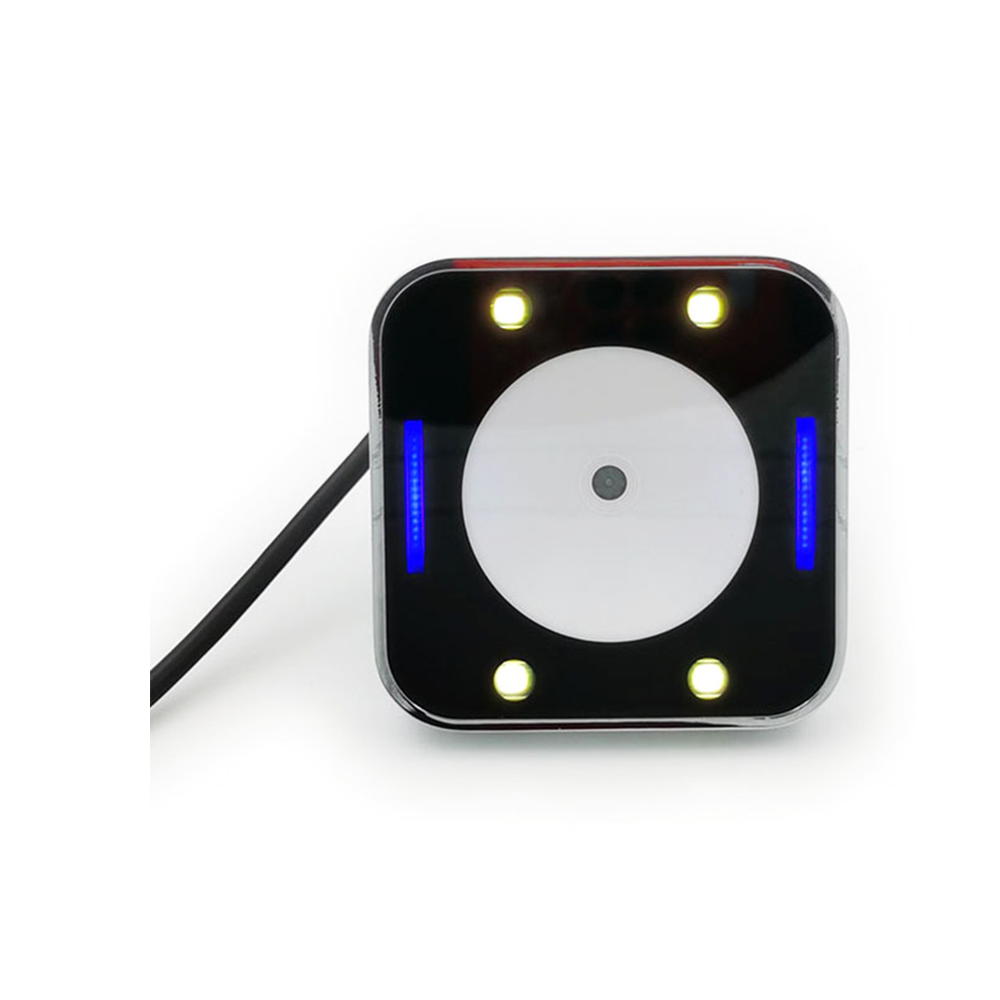

Grow GM810-L Barcode Scanner Module - CMOS Sensor, UART/USB Interface, 7-50cm Range
The Grow GM810-L is a versatile CMOS-based barcode scanner module supporting both UART and USB interfaces, designed for integration into embedded systems, POS terminals, and industrial automation. It reads a comprehensive range of 1D and 2D codes, including QR and Data Matrix, with a scanning range of 7 to 50 cm.
Features
- High-resolution CMOS sensor with 640×480 scan mode for accurate 1D/2D code reading.

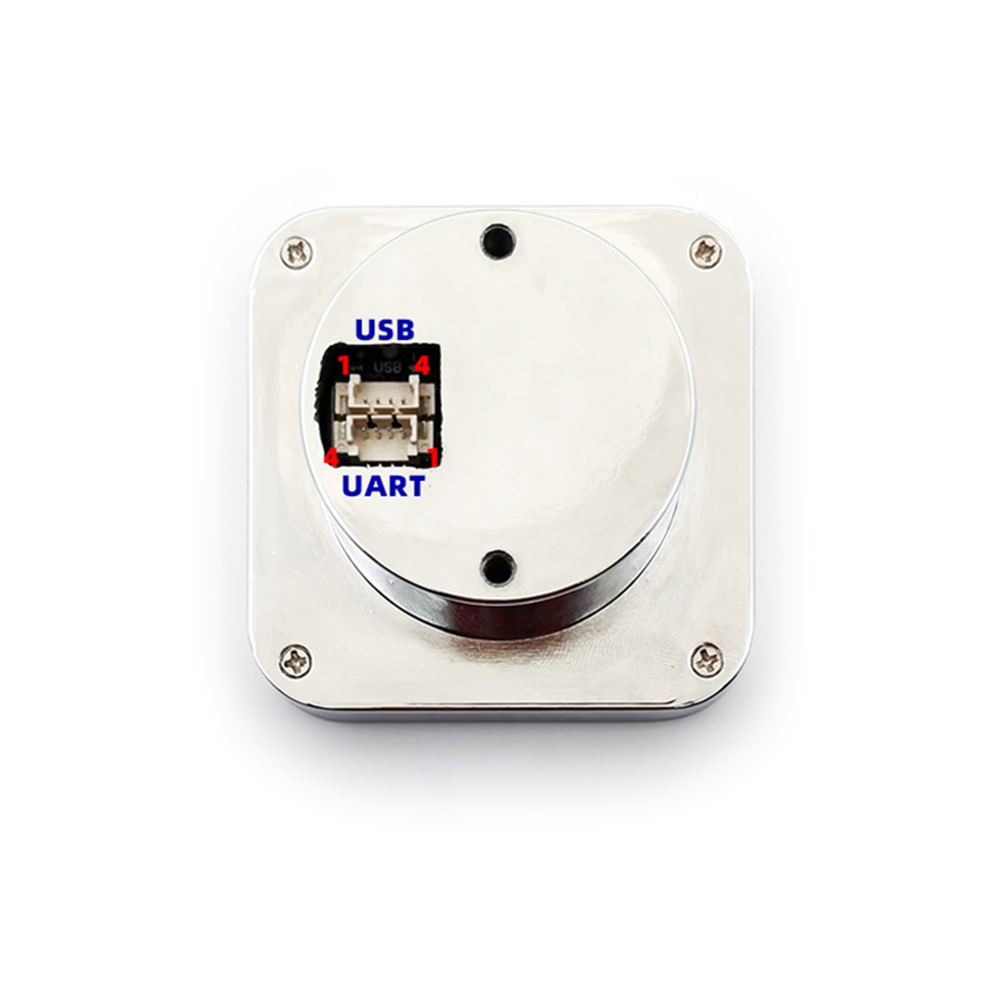

- Dual interface support (UART TTL and USB) for flexible integration with microcontrollers and PCs.
- Extended reading distance of 7-50 cm (GM810-L variant) with white LED illumination and blue collimation light.
- Comprehensive code support including EAN-13, UPC-A, Code 128, Code 39, QR Code, Data Matrix, and PDF417.
- Provides user feedback via integrated buzzer and LED indicator for scan confirmation.
Out of stock
The GM810-L Barcode Scanner Module employs a high-sensitivity CMOS imaging sensor to capture and decode a wide array of 1D linear and 2D Matrix barcodes. Its optical system combines white LED lighting for general illumination with a precise blue LED collimation light to enhance edge detection and decoding accuracy, especially under varying ambient light conditions.
Operating at a standard 5V DC supply, the module outputs decoded data via selectable UART (TTL-level) or USB interfaces, making it compatible with Arduino, Raspberry Pi, ESP32, and industrial PLC systems. The robust housing and integrated feedback mechanisms (buzzer and LED) ensure reliable operation in point-of-sale, inventory management, and automated logistics applications.
Additional Information
| Weight | 0.14 kg |
|---|---|

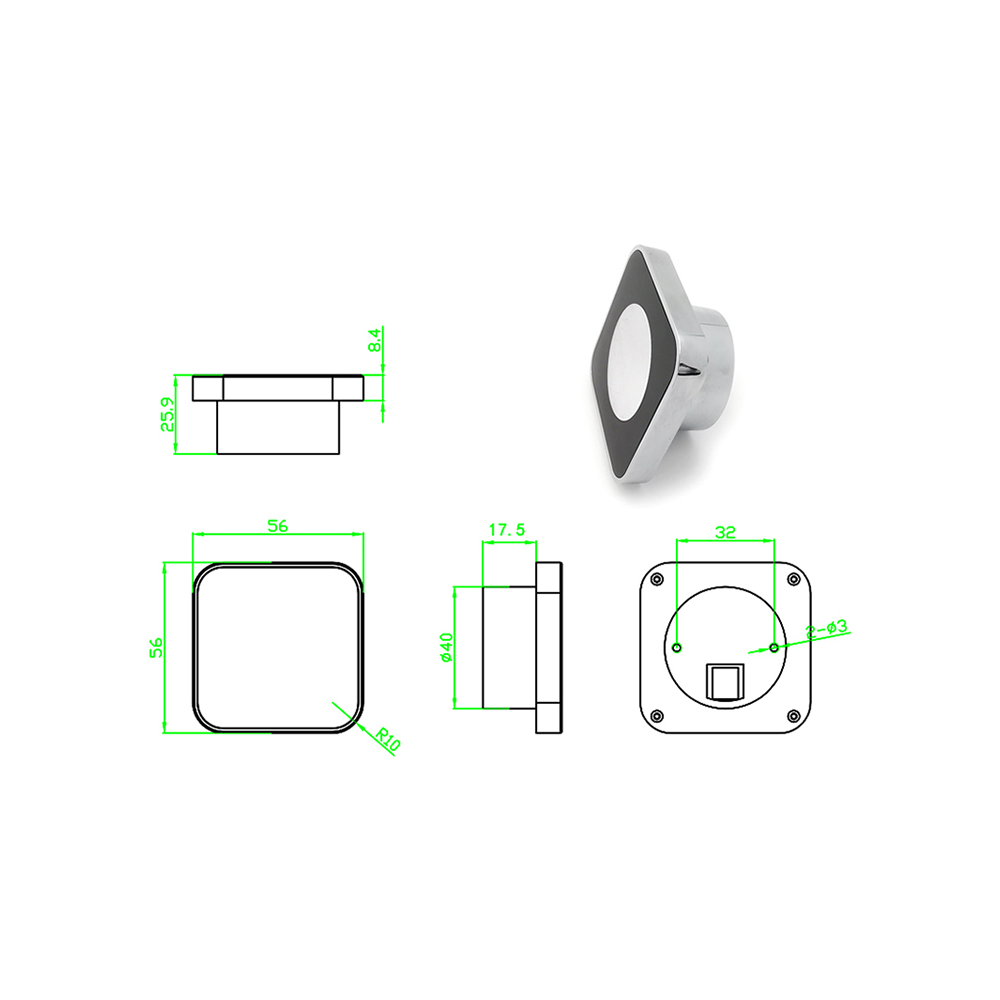

| Dimensions | 17 × 14 × 3 cm |
