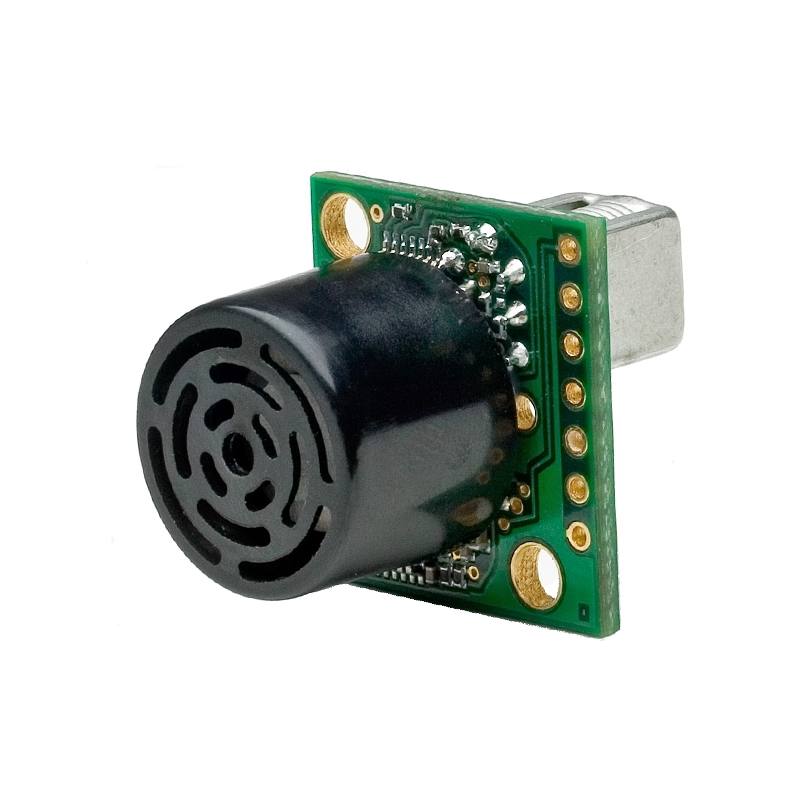

MaxBotix MB1200 XL-MaxSonar-EZ0 High-Performance Ultrasonic Sensor Module
The MaxBotix MB1200 XL-MaxSonar-EZ0 is a high-performance ultrasonic ranging sensor module designed for indoor applications, offering a 25-765 cm detection range with a 42 kHz operating frequency. It provides multiple output options (Analog Voltage, RS232 Serial, Pulse Width) for seamless integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- High-performance ultrasonic sensor with a 25 cm to 7.65 meter (300-inch) indoor ranging capability.
- Triple-output interface: Analog Voltage, RS232 Serial (TTL), and Pulse Width for flexible system integration.
- Features real-time automatic calibration for voltage, humidity, and ambient noise, ensuring stable readings.
- Virtually no dead zone; objects closer than 25 cm are reported as 25 cm.
- Wide, sensitive 42 kHz acoustic beam pattern optimized for small target and people detection.
Out of stock
The MB1200 XL-MaxSonar-EZ0 utilizes advanced ultrasonic time-of-flight (ToF) measurement with a 42 kHz transducer. Its high-output acoustic power, combined with a hardware gain of 4000 and sophisticated firmware algorithms—including real-time waveform signature analysis and clutter rejection—delivers virtually noise-free distance readings even in electrically noisy environments.
Designed for reliability with a rated MTBF exceeding 200,000 hours, this sensor is engineered for continuous indoor operation. The module includes onboard mounting holes on its compact PCB for easy installation. Its automatic background calibration continuously adjusts for changes in supply voltage and environmental conditions, maintaining measurement accuracy without user intervention.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2 × 2.25 cm |
