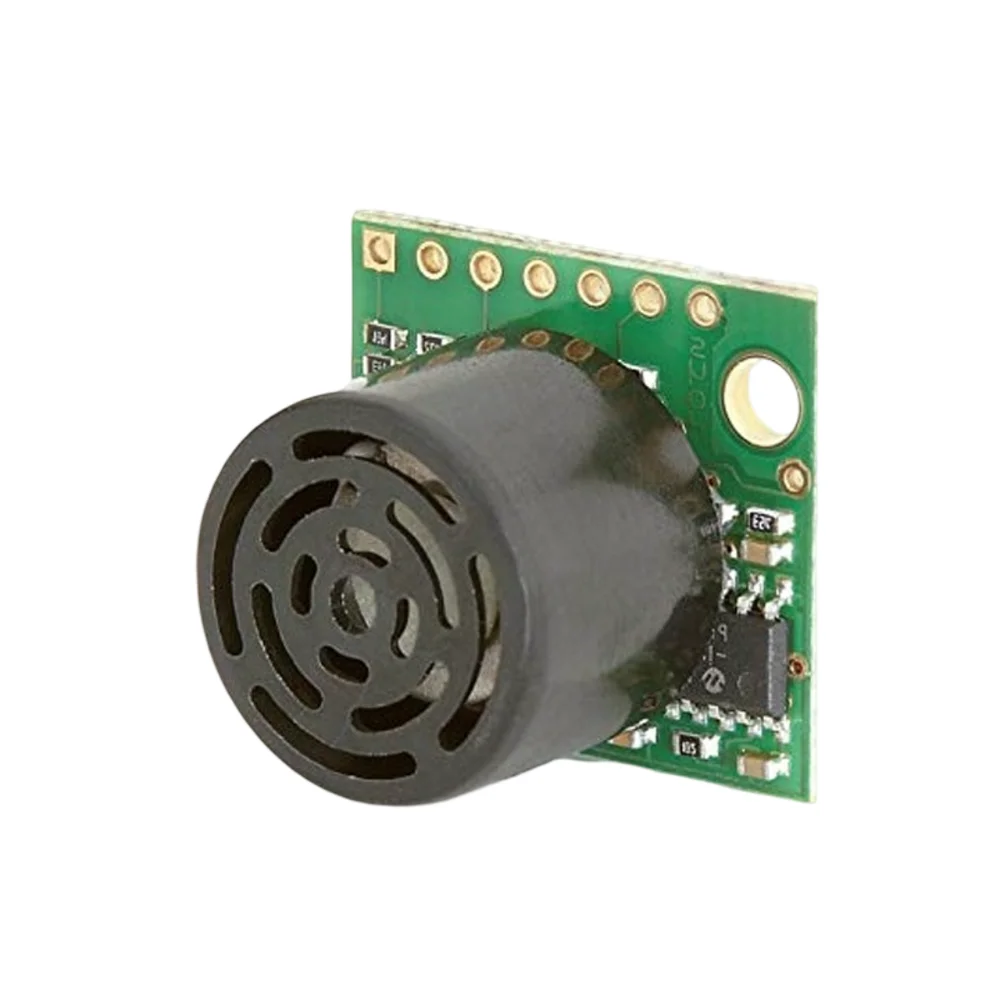

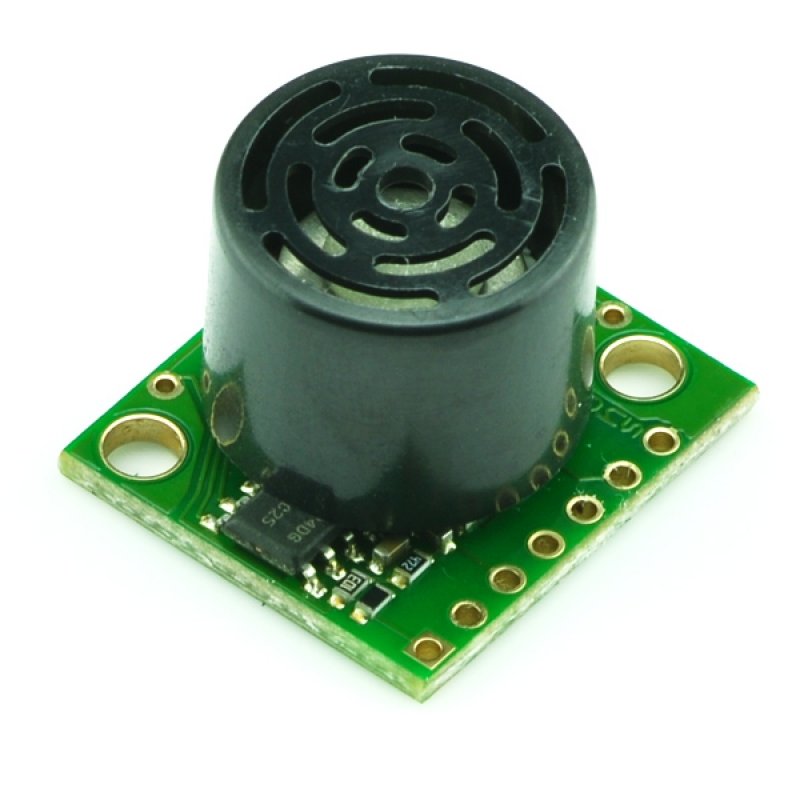

MaxBotix MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Module
The MaxBotix MB1010 LV-MaxSonar-EZ1 is a low-voltage ultrasonic rangefinder module offering three simultaneous output formats (analog voltage, RS232 serial, and pulse width) for flexible integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs. It provides reliable indoor distance measurement from 15 cm to 645 cm with a 42 kHz operating frequency.
Features
- Triple Output Interface: Simultaneous analog voltage, RS232 serial, and pulse width outputs for versatile system integration.
- Wide Indoor Sensing Range: Accurately measures distances from 15 cm to 645 cm (254 inches) with a resolution of 2.5 cm.
- Low Power & Voltage Operation: Operates from 2.7V to 5.5V DC with an average current draw of just 2 mA.
- High Update Rate: Provides stable, real-time data with a 20 Hz read rate for responsive sensing applications.
- Minimal Dead Zone: Features virtually no sensor dead zone, reliably detecting objects as close as 15 cm (6 inches).
Out of stock
The MB1010 LV-MaxSonar-EZ1 utilizes advanced ultrasonic time-of-flight (ToF) technology to deliver precise, non-contact distance measurements. Its 42 kHz transducer and proprietary filtering algorithms ensure stable performance in various indoor environments, effectively ignoring fixed background clutter through its adaptive ringdown learning feature.
Designed for easy integration, the module includes onboard mounting holes and provides three concurrent output signals, eliminating the need for external signal conditioning. This makes it directly compatible with a wide range of 3.3V and 5V logic systems, from hobbyist prototyping platforms to embedded industrial controls.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2 × 2.25 cm |
