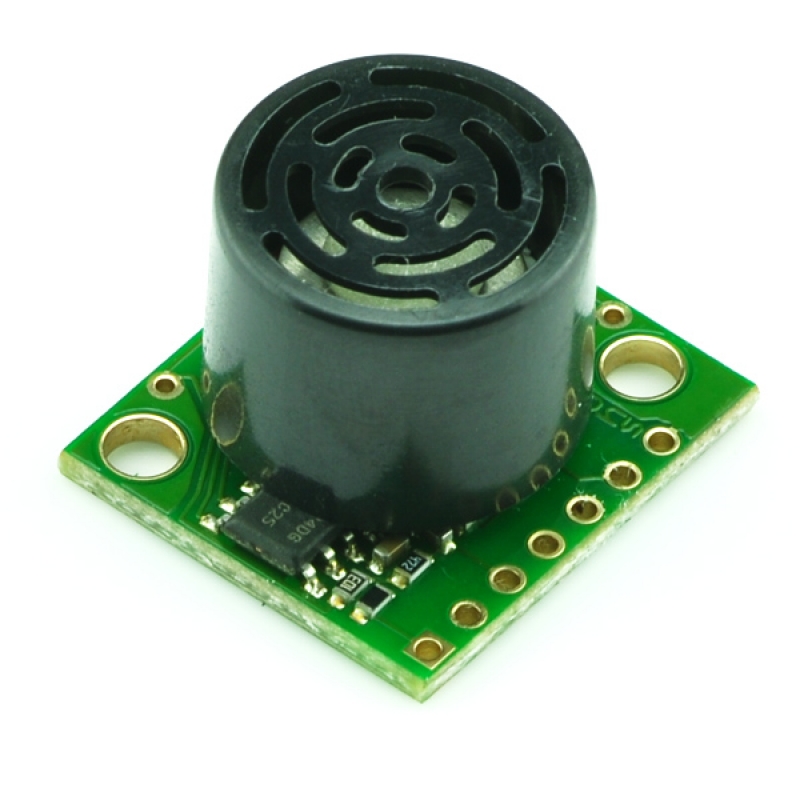

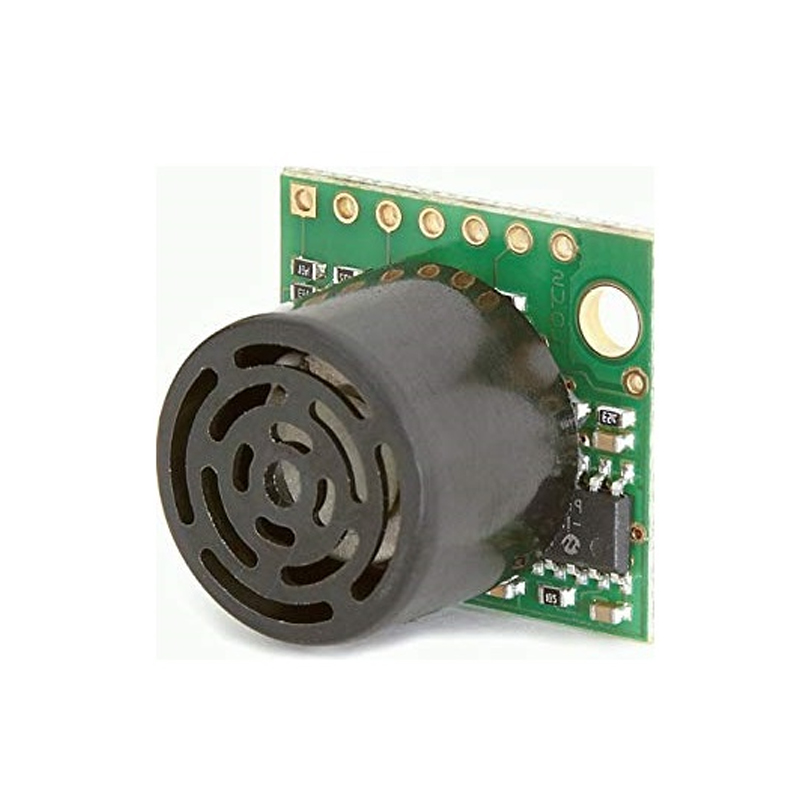

MaxBotix MB1000 LV-MaxSonar-EZ0 Ultrasonic Sensor Module - 645cm Range, 20Hz Read Rate
The MaxBotix MB1000 LV-MaxSonar-EZ0 is a high-performance ultrasonic distance sensor module offering a 15-645 cm range with 2.5 cm resolution. It provides three simultaneous output formats—pulse-width, analog voltage, and RS232 serial—for seamless integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- Wide 42 kHz ultrasonic beam pattern optimized for high-sensitivity detection and people sensing applications.
- Triple-output interface: Pulse-width, 0-Vcc analog voltage, and RS232 serial data for maximum system compatibility.
- Virtually no dead zone with reliable close-range detection down to 15 cm (6 inches).
- Low power operation at 2.5-5.5V DC with an average current draw of only 2 mA.
- Compact PCB design (22.5 x 20 mm) with integrated mounting holes for easy installation.
Out of stock
The MB1000 LV-MaxSonar-EZ0 utilizes advanced ultrasonic ranging technology with a 42 kHz transducer to provide precise, non-contact distance measurements. Its wide beam pattern offers superior coverage for applications requiring detection over broad areas, such as occupancy sensing. The sensor features internal temperature compensation and a ringdown learning algorithm that adapts to its environment, enhancing stability and ignoring static obstacles present at startup.
Designed for indoor use, this module outputs real-time distance data through three concurrent interfaces, allowing direct connection to analog inputs, digital pins, or serial ports on most development platforms and data acquisition systems. Its robust electrical design supports a wide 2.5-5.5V supply range, making it compatible with both 3.3V and 5V logic systems commonly found in embedded electronics and prototyping.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2 × 2.25 cm |
