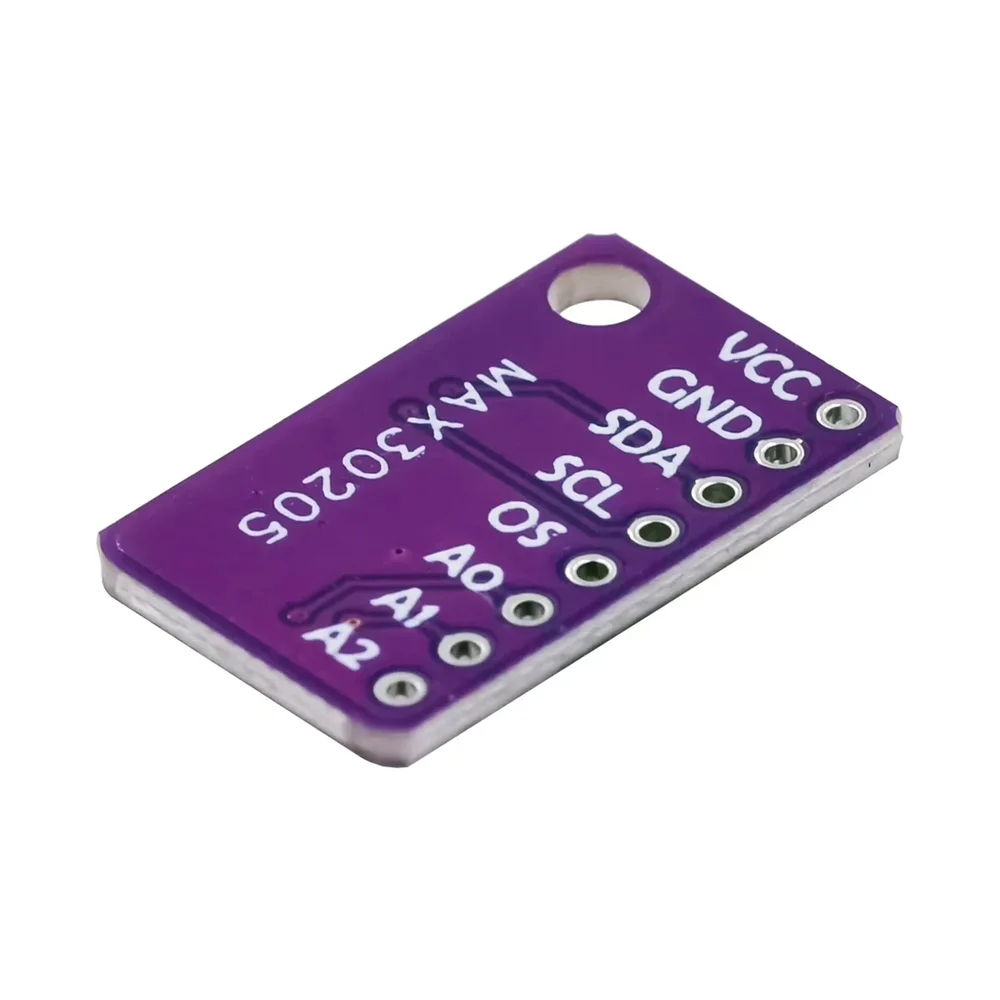

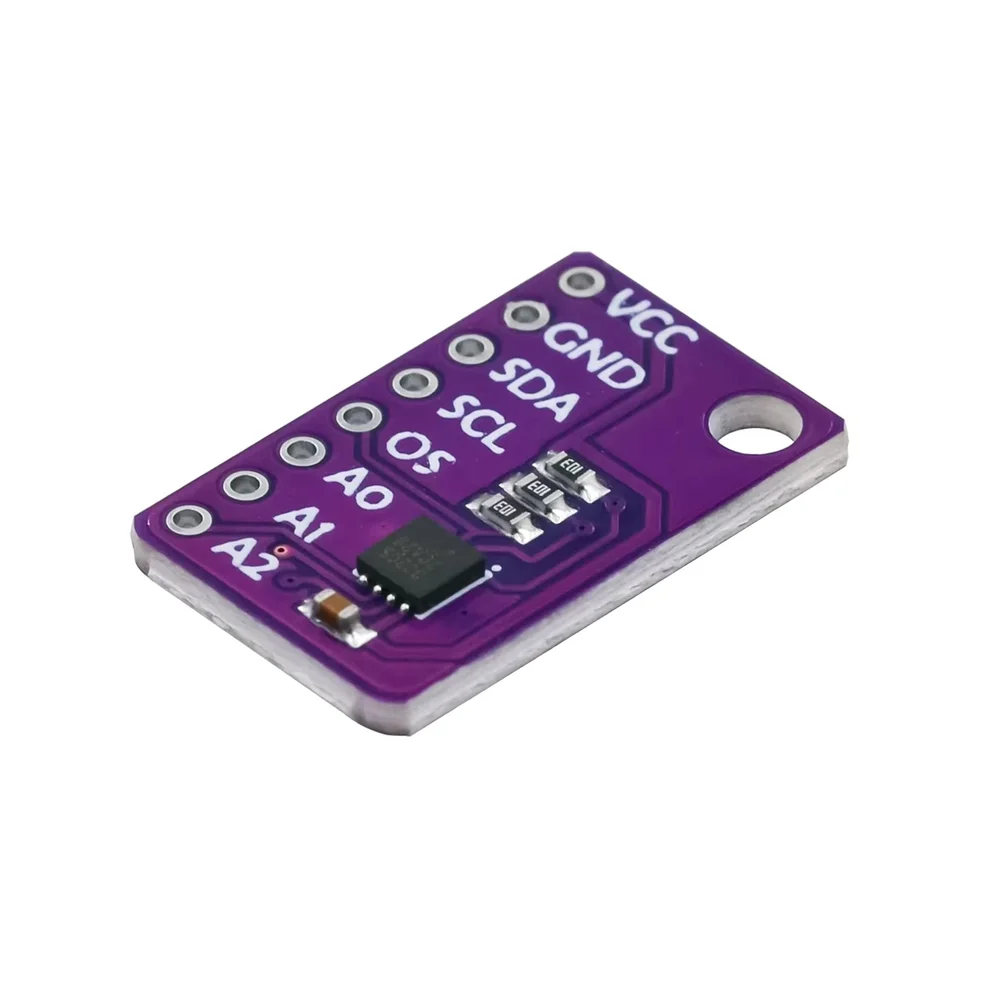

MAX30205MTA Human Body Temperature Sensor Module - I2C Interface
The MAX30205MTA sensor module provides clinical-grade digital body temperature measurement via a 16-bit I2C interface, compatible with Arduino, ESP32, and Raspberry Pi for wearable health and medical monitoring applications.
Features
- High-accuracy digital temperature sensor with ±0.1°C clinical-grade precision in the 37°C–39°C range.
- I2C-compatible interface with configurable addresses for easy integration with microcontrollers and SBCs.
- Low power consumption of 600µA typical, ideal for battery-powered wearable and portable medical devices.
- 16-bit resolution provides a temperature resolution of 0.00390625°C for detailed monitoring.
- Features an open-drain over-temperature alarm output for configurable threshold alerts.
Out of stock
The MAX30205MTA module is built around the Maxim Integrated MAX30205 IC, a high-precision digital temperature sensor engineered for medical-grade body temperature measurement. It converts thermal readings directly into a 16-bit digital value via an integrated sigma-delta ADC, ensuring high resolution and accuracy critical for clinical and health monitoring applications.
Operating from a 2.7V to 3.3V supply, the module is designed for low-power embedded systems and wearable devices. Its I2C communication protocol supports multiple selectable addresses, enabling multi-sensor setups in a single system. The integrated open-drain interrupt output can be configured as a thermostat or over-temperature alarm, providing a hardware-triggered alert mechanism.
Additional Information
| Weight | 0.004 kg |
|---|---|

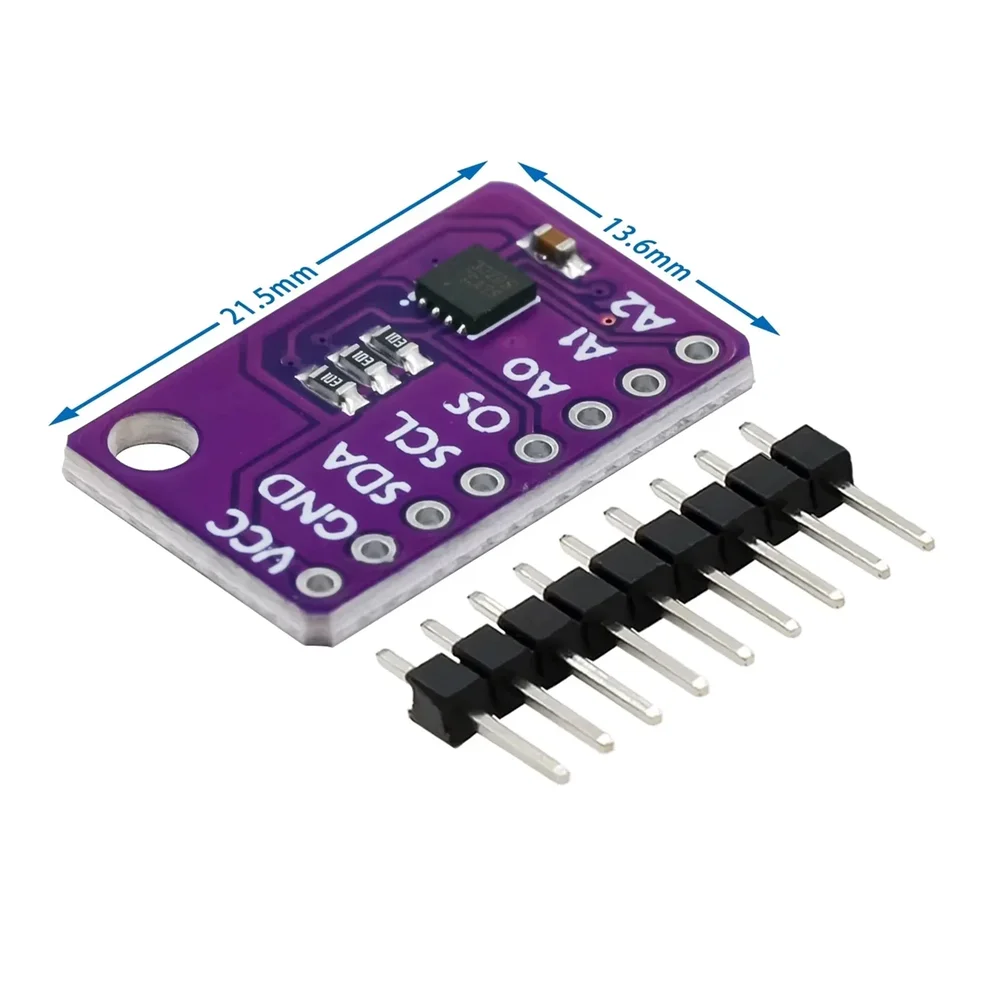

| Dimensions | 2.15 × 1.36 cm |
