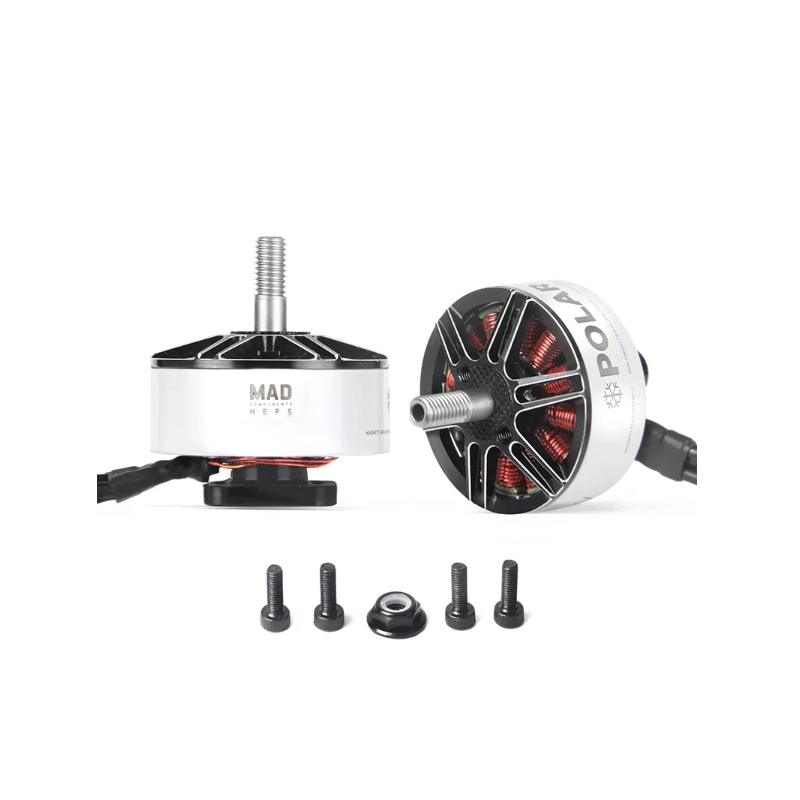

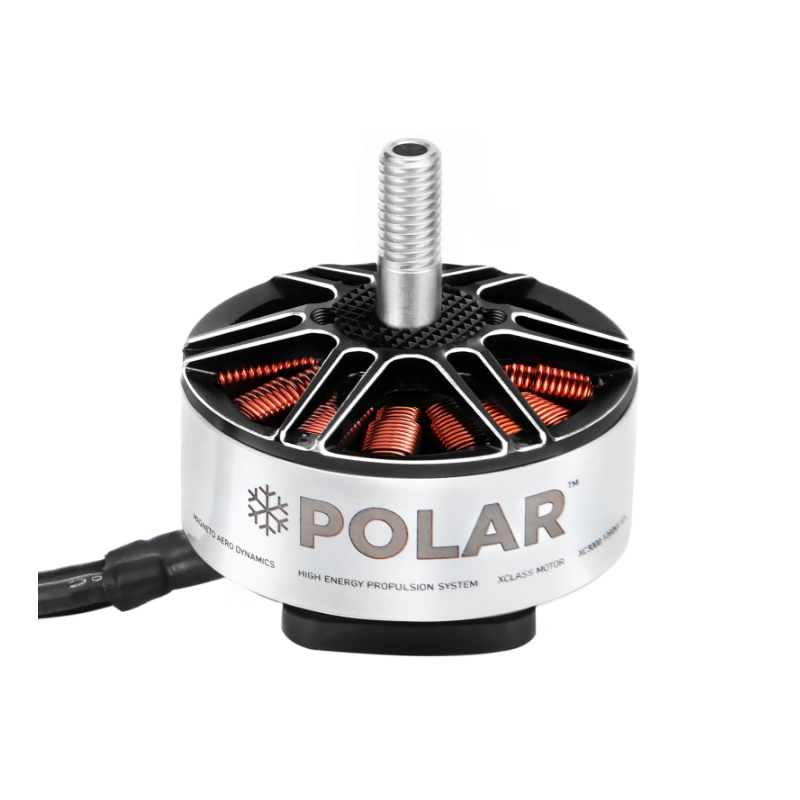

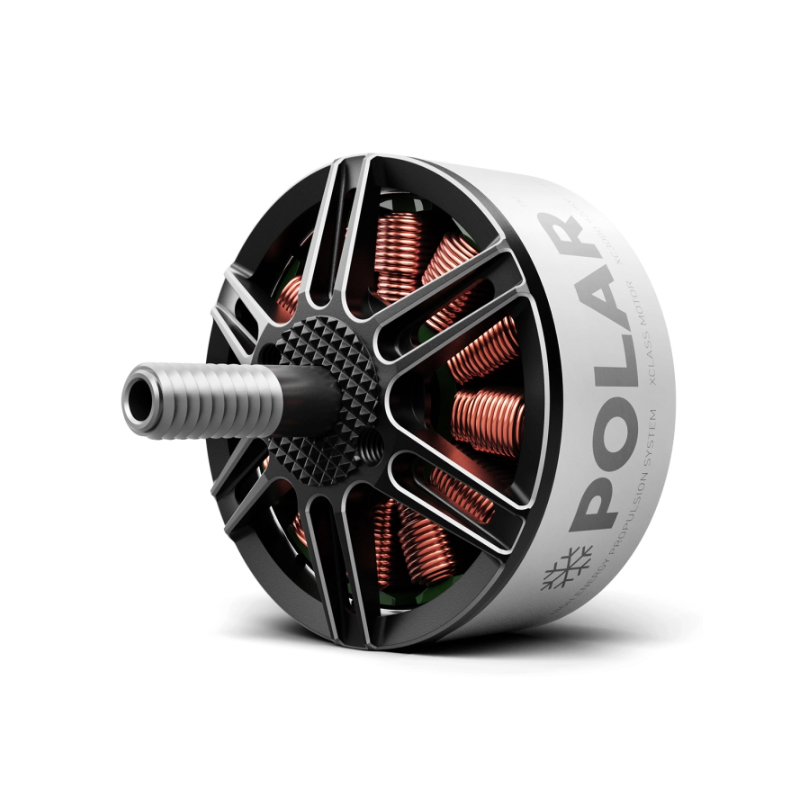

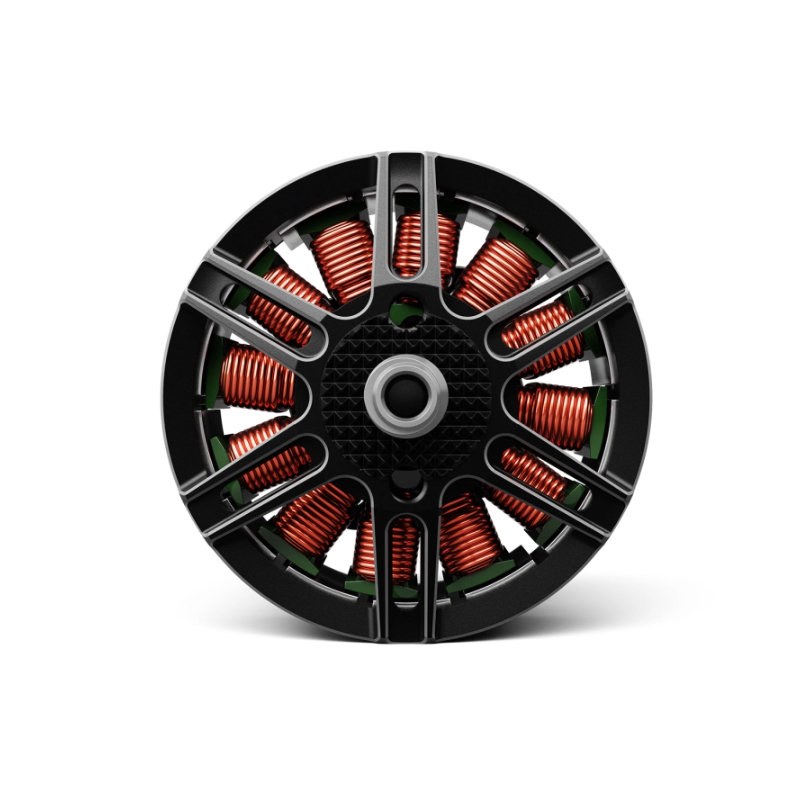

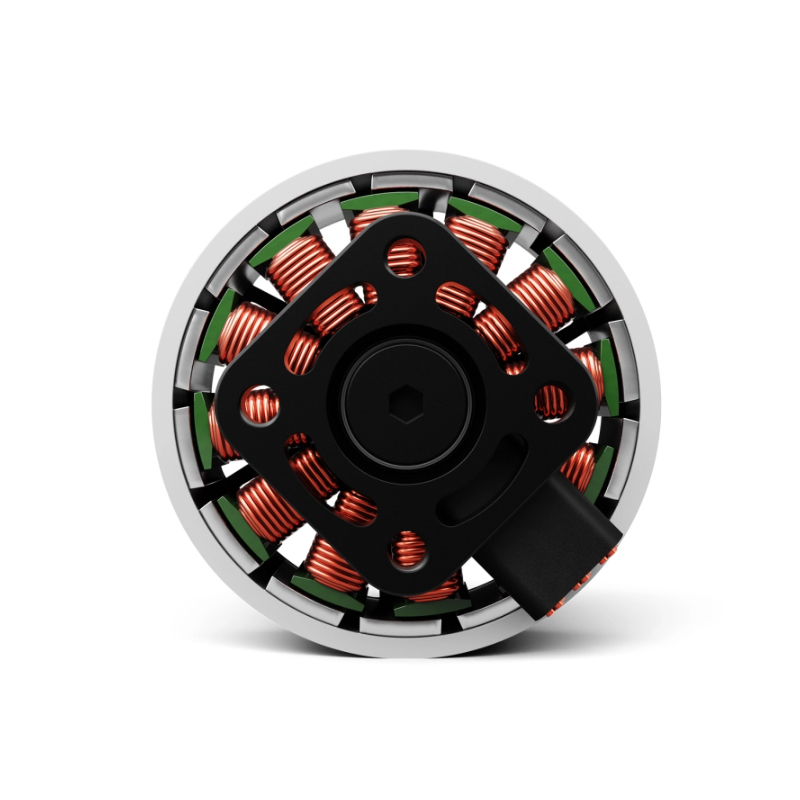

MAD Components Components XC3000 POLAR Brushless Motor 650KV (Pack of 4)
The MAD Components Components XC3000 POLAR is a high-performance 650KV brushless outrunner motor engineered for 6S to 12S LiPo systems, delivering up to 2.8 kgf of thrust per motor. Its optimized thermal design and 14-pole construction provide reliable power for cinematic drones and heavy-lift UAVs.
Features
- High-performance 650KV brushless outrunner motor for 6S-12S LiPo systems.
- Delivers up to 2.8 kgf of maximum thrust per motor with a peak power of 1330W.
- Low 112mΩ internal resistance for enhanced efficiency and reduced heat generation.
- Robust thermal resilience with an operating temperature range of -20°C to 129°C.
- Lightweight 70g design with a 4mm shaft diameter, compatible with 7×4.5×3 to 10×4.5 propellers.
Out of stock
The MAD Components Components XC3000 POLAR brushless motor is engineered for demanding UAV applications requiring sustained high power and thermal stability. Its 650KV rating and 14-pole outrunner design are optimized for efficient operation on 6S to 12S LiPo battery packs, making it suitable for platforms where extended flight time and consistent thrust are critical.
Constructed with a focus on thermal management, the motor features a low internal resistance of 112mΩ, which minimizes electrical losses and heat buildup under high loads. The lightweight 70-gram frame houses a durable 4mm shaft, providing a reliable interface for large-diameter propellers ranging from 7 to 10 inches. This combination of specifications makes the XC3000 POLAR a versatile choice for professional-grade cinematic drones, mapping UAVs, and other medium-to-heavy-lift multirotor platforms.
Additional Information
| Weight | 0.541 kg |
|---|---|
| Dimensions | 11.5 × 11.5 × 9 cm |
