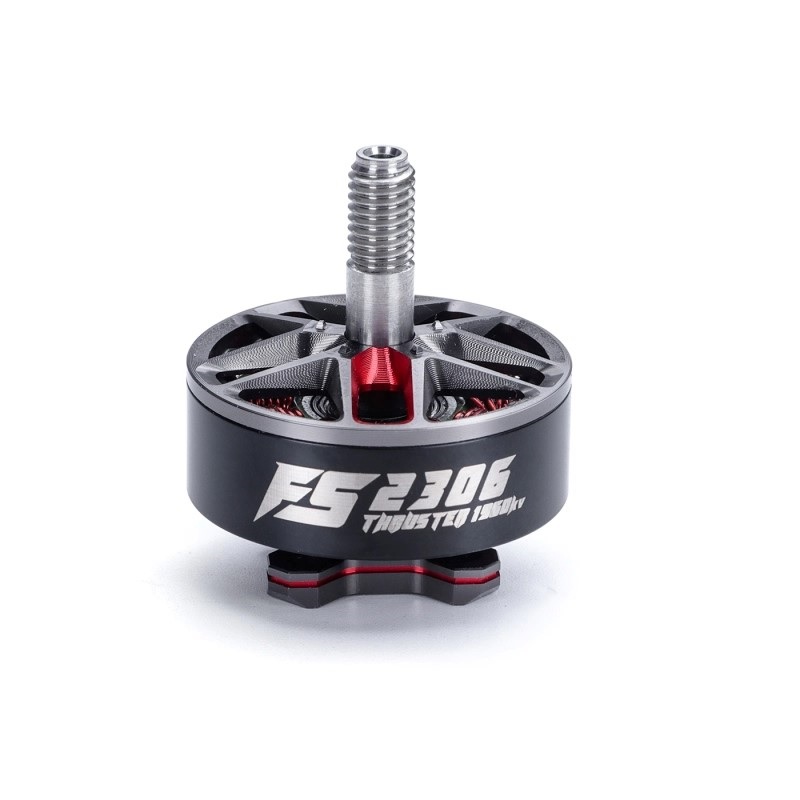

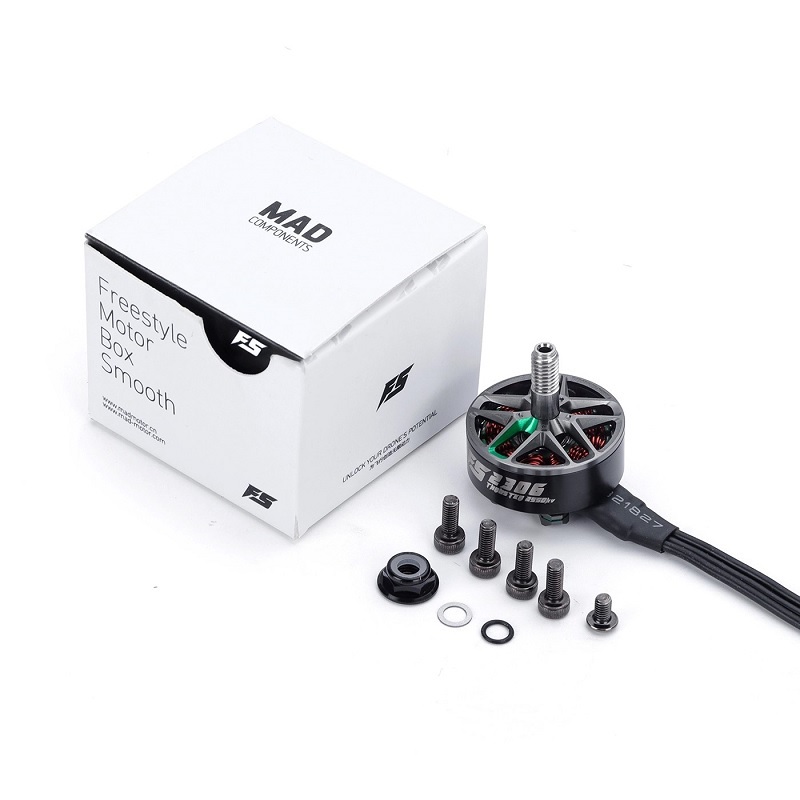

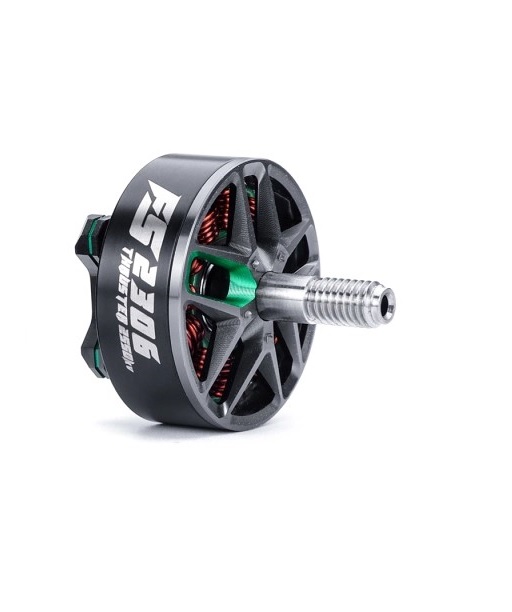

MAD Components Components FS 2306 Thruster FPV Motor 2550KV - Green
The MAD Components Components FS 2306 Thruster is a 2550KV brushless motor engineered for high-performance 4S FPV racing and freestyle drones, delivering a balance of power, efficiency, and agility for dynamic flight control.
Features
- 2550KV rating optimized for 4S LiPo battery performance.
- 12N14P stator configuration for enhanced magnetic efficiency and smooth torque.
- Lightweight construction with a 4mm steel shaft and M5 propeller mounting.
- Maximum power output of 634.7W for high-thrust, responsive maneuvers.
- Precision rotor balancing (≤5mg) ensures stable, vibration-free flight.
Out of stock
The FS 2306 Thruster motor from MAD Components Components is engineered for pilots demanding a precise balance of power and agility. Its 12N14P stator-magnet configuration provides efficient magnetic flux, translating to smooth, consistent torque across the throttle range. The motor is built with high-grade materials and a robust 4mm shaft to withstand the physical stresses of aggressive racing and freestyle flying.
Thermal management is addressed through an optimized winding pattern and efficient stator design, allowing it to handle peak currents up to 38.7A while maintaining operational stability within a -20°C to +80°C range. This makes it a reliable propulsion component for competitive FPV builds where consistent performance is critical.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
