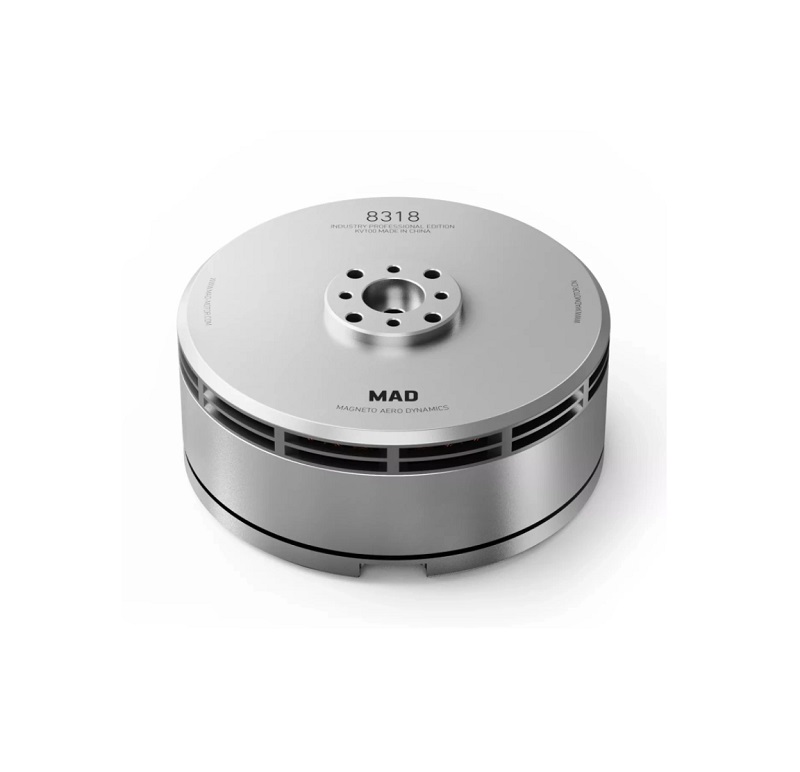

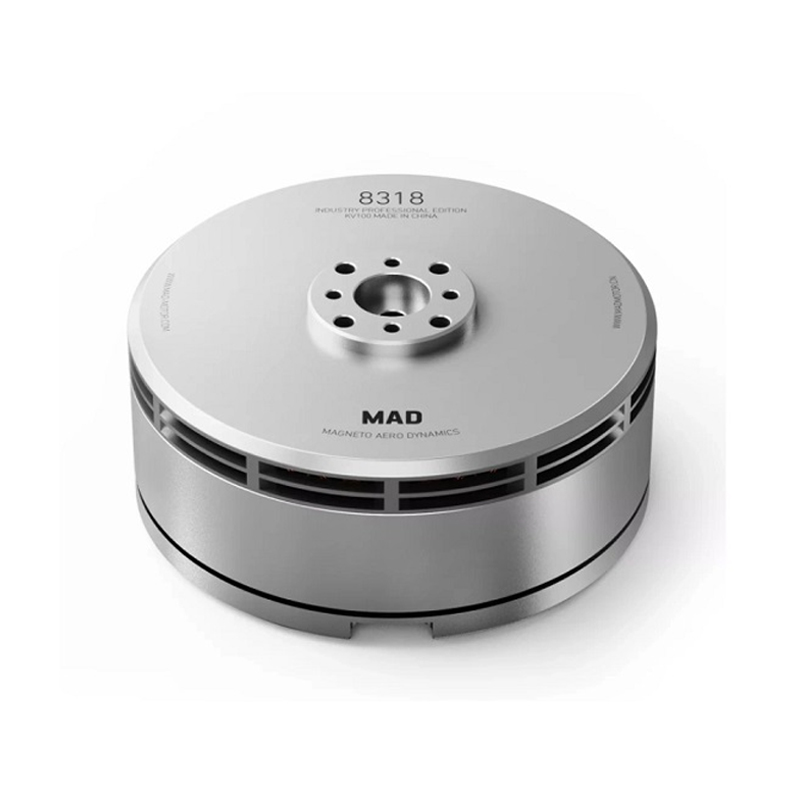

MAD Components Components MAD Components Components 8318 IPE Agriculture Drone Motor 100KV - Silver
The MAD Components Components 8318 IPE is a 100KV brushless motor engineered for heavy-lift agricultural drones, optimized for 12S LiPo power systems and compatible with 28-32 inch propellers to deliver up to 17.5kg of thrust per motor.
Features
- 100KV rating optimized for 12S LiPo (44.4V) battery systems.
- Delivers up to 3224W max power and 6.5Nm torque for demanding agricultural payloads.
- Features IP35-rated dust and water protection for operation in harsh field conditions.
- Silver anodized housing provides improved thermal dissipation in sunny environments.
- Engineered for 28-32 inch propellers, generating up to 17.5kg of maximum thrust.
Out of stock

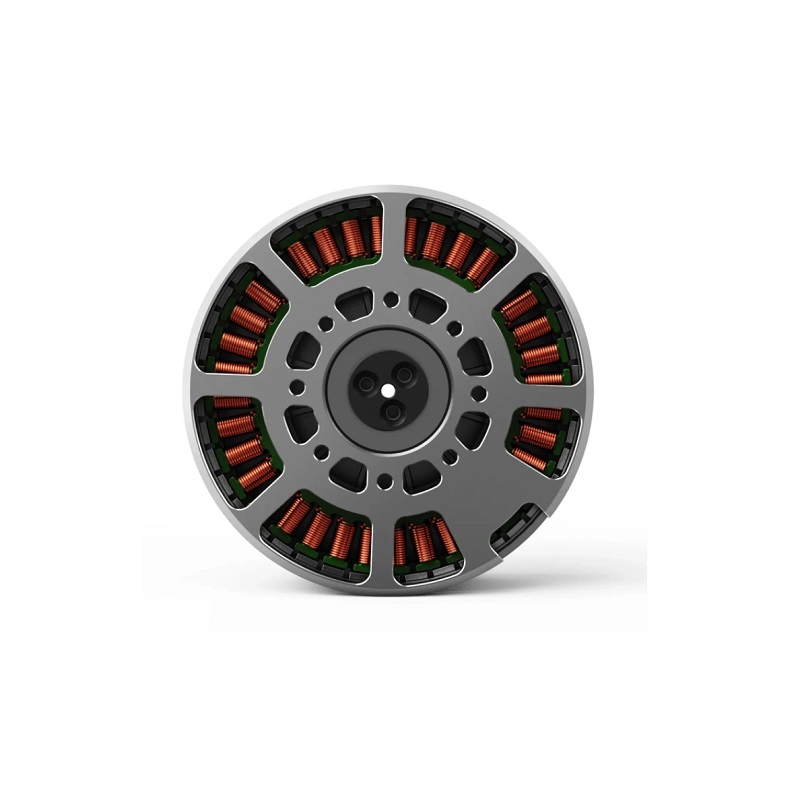

The MAD Components Components 8318 IPE motor is built for the rigorous demands of professional agricultural drone platforms. Its robust stator design and low 100KV rating are tailored for high-torque, low-RPM operation essential for lifting heavy spray systems and sensors while maintaining efficient flight times on 12S LiPo packs.
Constructed with an IP35 ingress protection rating, the motor is shielded from dust and water spray, ensuring reliability during crop-dusting and field-mapping missions. The silver anodized finish enhances heat rejection, a critical factor for sustained operation under direct sunlight, while oversized bearings contribute to long-term durability under continuous load.
Additional Information
| Weight | 0.97 kg |
|---|---|
| Dimensions | 17 × 17 × 8 cm |
