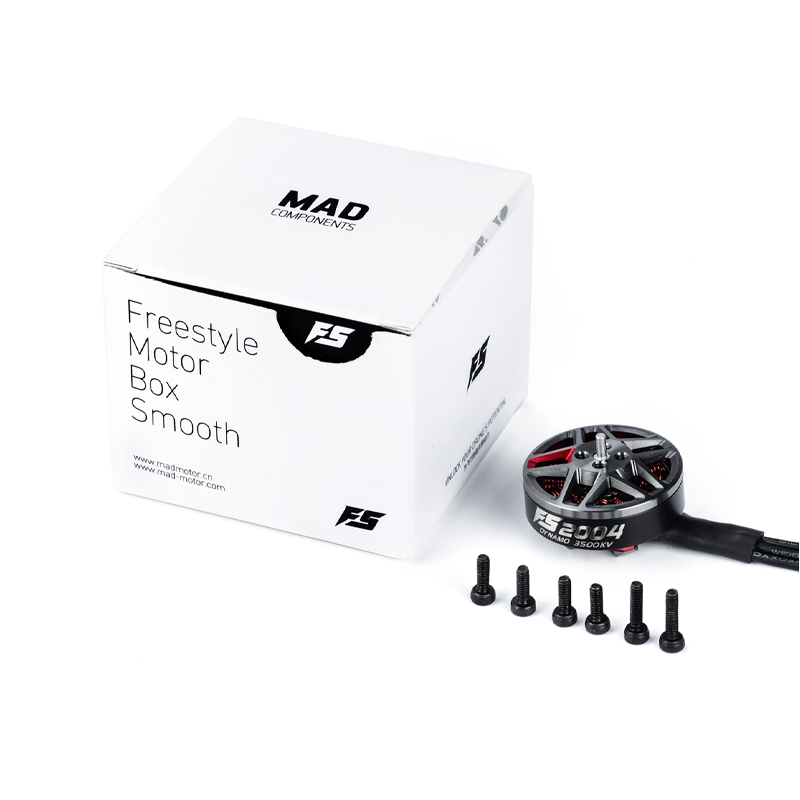

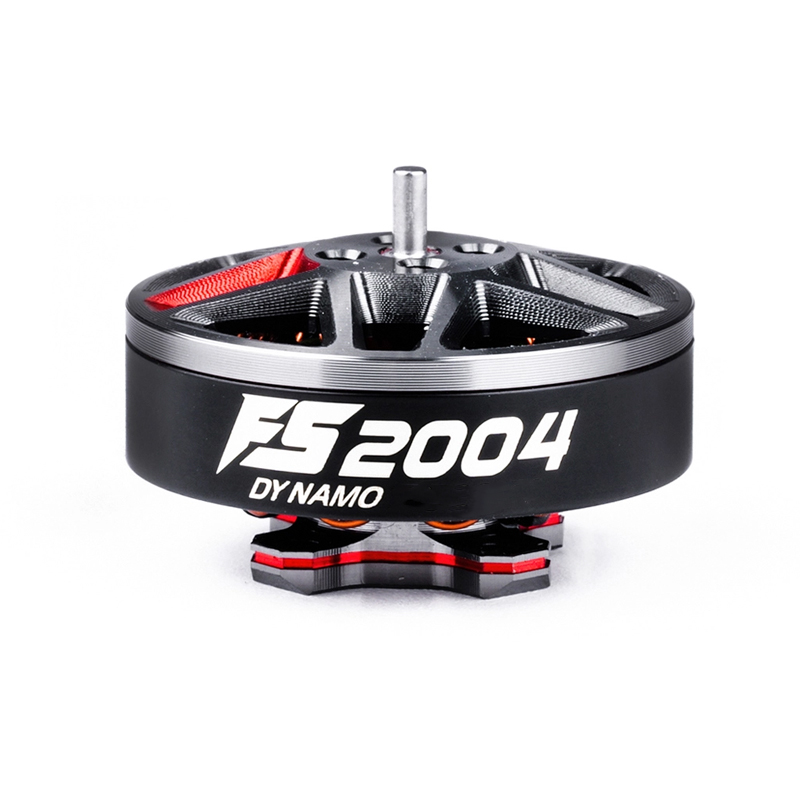

MAD Components Components FS 2004 DYNAMO FPV Drone Motor 2950KV - Green

This motor is optimized for 6S LiPo battery systems (22.2V nominal). Its 2950KV rating and electrical design provide high RPM performance ideal for aggressive freestyle and cinematic flying on this voltage. Using lower voltage (e.g., 4S) will significantly reduce power output, while exceeding 6S may risk exceeding the motor's maximum current and thermal limits.

For 6S operation, this motor is typically paired with smaller, high-pitch propellers in the 3-inch to 4-inch range (e.g., 3020, 4023). The exact prop choice depends on your desired flight style—lower-pitch props for efficiency and smoother video, higher-pitch for maximum thrust and agility. Always bench-test with a current sensor to ensure you stay within the 31A continuous current rating.

Yes, the MAD Components FS 2004 motor features a titanium shaft with a 1.5mm diameter. This is a common size for motors in this stator class, ensuring compatibility with a wide range of propeller adapters, collets, and nuts designed for micro and sub-250g FPV drone builds.

The specified internal resistance of 65.8 mOhm is relatively low for a motor of this size and KV, contributing to higher electrical efficiency. Lower resistance reduces I²R heating losses, allowing the motor to convert more battery power into mechanical work, which improves throttle response, reduces heat buildup, and can extend flight time under high-load conditions.
