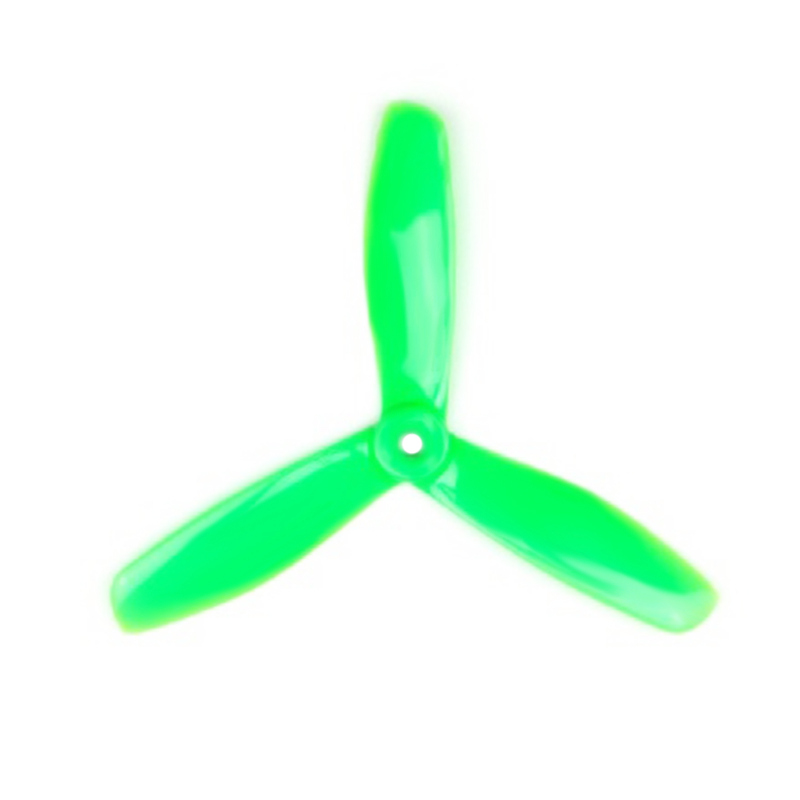

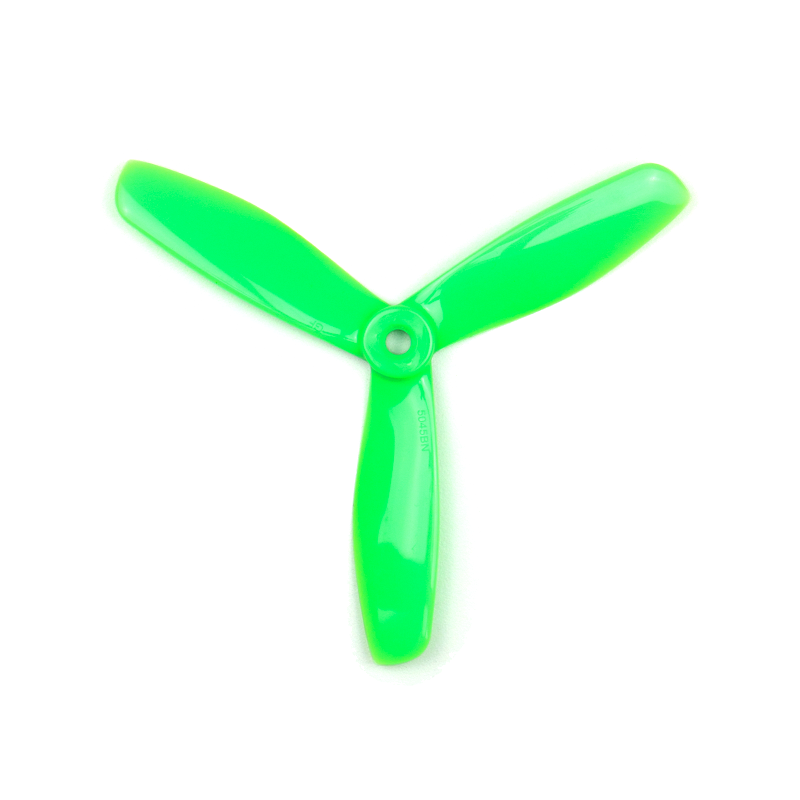

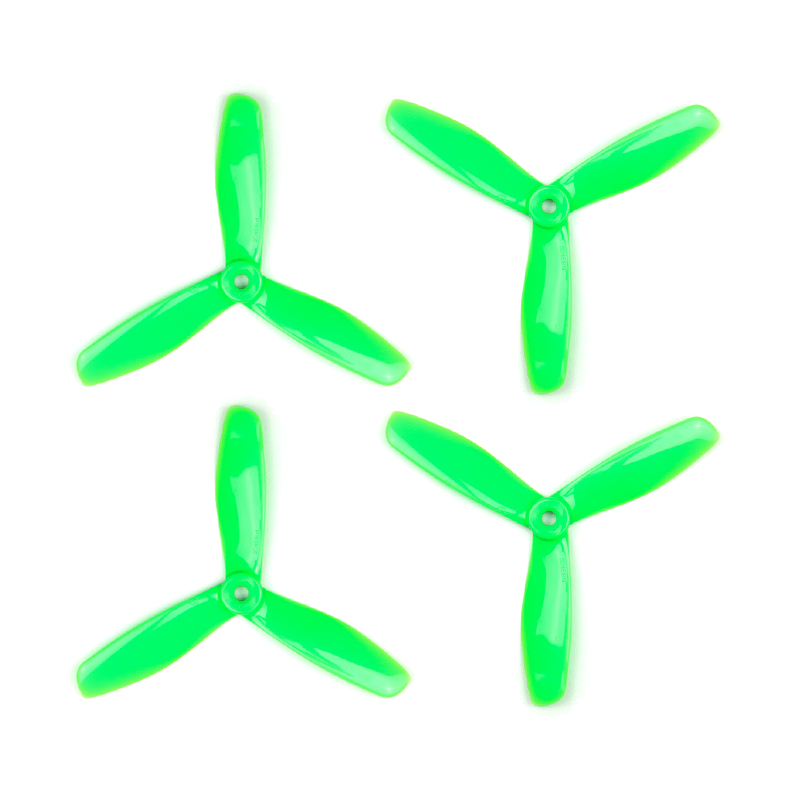

OrangeRX HD Propellers 5045 (5x4.5) Tri-Blade Bullnose Polycarbonate 2CW+2CCW - Green

Name: OrangeRX HD Propellers 5045 (5x4.5) Tri-Blade Bullnose Polycarbonate 2CW+2CCW - Green
Brand: OrangeRX
SKU: DRFC-1479
Price: 231.00 INR
Availability: OutOfStock

₹231.00 (Inclusive of all taxes)

Out of Stock

The OrangeRX HD 5045 tri-blade bullnose propellers are 5-inch polycarbonate blades designed for multirotor and FPV drone applications, offering a balanced combination of thrust and efficiency for 3-6S LiPo builds.

Features

5-inch diameter (5045) tri-blade bullnose design for high thrust and responsive control.
Constructed from durable polycarbonate for a rigid, lightweight, and impact-resistant build.
Includes a complete 2CW + 2CCW set (2 pairs) for immediate installation on any quadcopter.
Features a 5mm shaft bore for secure mounting on standard M5 motor threads.
Optimized aerofoil profile aims to improve aerodynamic efficiency and flight stability.

Out of stock

Get Notified When Available

Description

The OrangeRX HD 5045 propellers utilize a tri-blade bullnose configuration to maximize thrust density and low-speed responsiveness, ideal for aggressive freestyle and racing maneuvers. The polycarbonate material provides the necessary rigidity to maintain blade shape under high RPM loads while offering good resistance to minor impacts.

Designed with a focus on aerodynamic efficiency, the blade profile aims to reduce vortex drag and improve overall flight stability. This makes them a suitable upgrade for 5-inch FPV drones seeking enhanced punch-outs and tighter cornering without a significant penalty to flight time on common 4S and 6S power systems.

Key Features

Tri-blade bullnose design for high thrust output and aggressive flight characteristics.
Polycarbonate construction ensures a high strength-to-weight ratio and durability.
Precision-molded blades with consistent weight and balance for smooth operation.
5mm central bore ensures a secure, concentric fit on standard motor shafts.
Epoxy resin cover on the hub for added strength and resistance to cracking.
Includes a balanced set of clockwise (CW) and counter-clockwise (CCW) rotation propellers.

Applications

5-inch FPV racing and freestyle quadcopters requiring high thrust and quick acceleration.
Mid-range multirotor builds for cinematic flying where stable, responsive handling is desired.
DIY drone projects utilizing 2207 or similar sized brushless motors on 4S to 6S LiPo batteries.
Upgrade replacement for standard two-blade propellers on 5-inch frames to improve low-end punch.

Technical Specifications

Brand	OrangeRX
Model	HD 5045
Diameter	5 inch (125 mm)
Pitch	4.5 inch
Blade Count	3 (Tri-Blade)
Design	Bullnose
Material	Polycarbonate
Color	Green
Shaft Diameter	5 mm
Rotation Direction	2CW + 2CCW
Approx. Weight (per prop)	25-27 g
Package Quantity	4 Propellers (2 Pairs)

Frequently Asked Questions

What is the shaft diameter for these OrangeRX 5045 propellers?

These propellers feature a 5mm central bore, designed to fit securely onto standard M5 threaded motor shafts common in 5-inch FPV drone builds. Always ensure the propeller is fully seated and use a matching M5 lock nut or cap for safe operation.

Are these propellers suitable for 6S LiPo batteries?

Yes, the polycarbonate construction of the OrangeRX HD 5045 propellers provides sufficient rigidity and strength for high-RPM applications typical of 6S power systems. Ensure your motors and ESCs are also rated for 6S operation to handle the increased load and current draw.

What is included in the package?

The package contains a complete set of four propellers: two clockwise (CW) rotation and two counter-clockwise (CCW) rotation blades. This 2CW+2CCW configuration provides exactly what is needed to equip a standard quadcopter.
