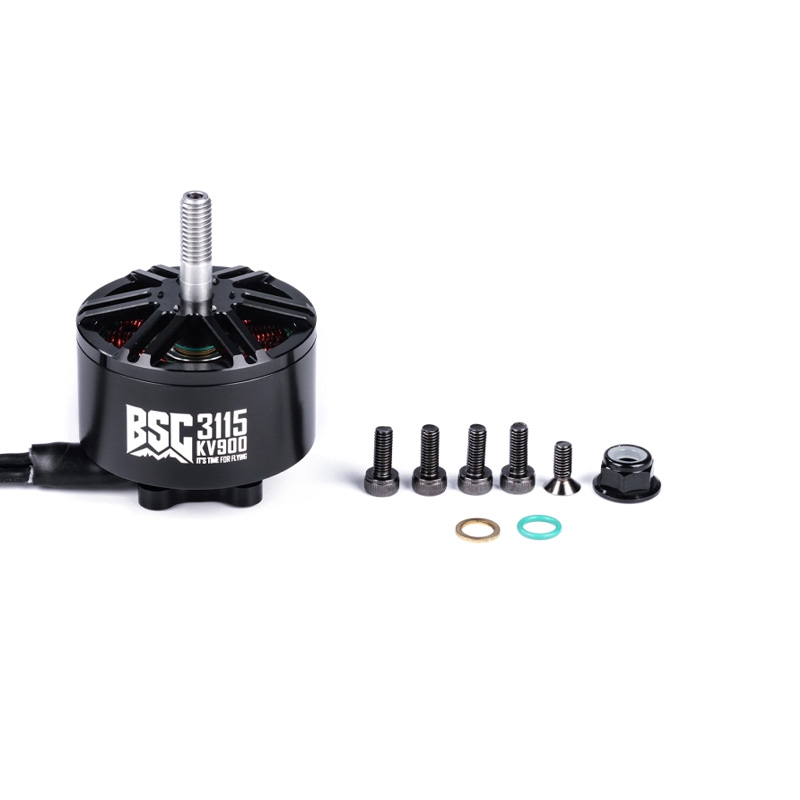

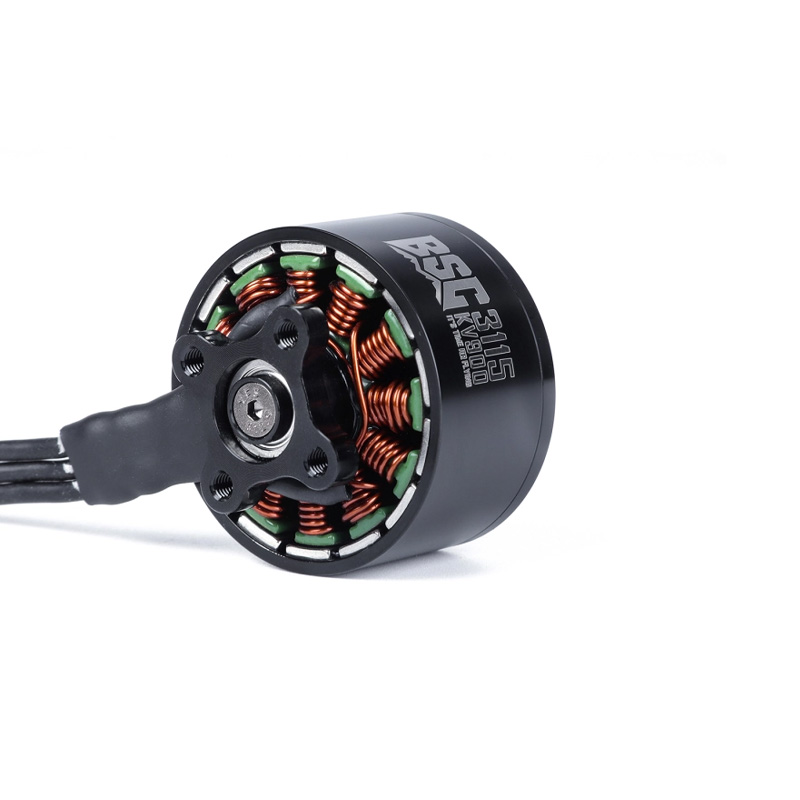

MAD Components Components BSC 3115 V1.0 FPV Drone Motor 900KV-6S

The MAD Components BSC 3115 with a 900KV rating is specifically optimized for 6S LiPo battery packs (nominal 22.2V). Operating it within the 6S voltage range ensures optimal performance, efficiency, and thermal management. Using lower voltage (e.g., 4S) will significantly reduce power output, while exceeding 6S may risk damaging the motor windings.

On 6S power, this motor is well-matched with larger, higher-pitch propellers common on 5-inch to 7-inch quadcopters. Typical pairings include 5x4.3x3 tri-blade or 6x4.5x2 bi-blade propellers for a balance of thrust and efficiency. Always test new propellers while monitoring motor temperature to ensure they are within the motor's 63.8A continuous current limit.

The product title and specifications specify an M5 threaded shaft for propeller mounting, but do not list the bolt pattern for attaching the motor to a frame. You will need to verify the specific bolt hole circle diameter (e.g., 16x19mm or 25x25mm) from the motor's base or official documentation to ensure compatibility with your drone frame.

Yes, its high-efficiency design featuring low internal resistance (35.8 mΩ) and a 12N14P configuration makes it a strong candidate for endurance-focused builds. When paired with appropriately sized, efficient propellers on a 6S system, it can provide excellent flight times for long-range exploration or aerial photography platforms.
