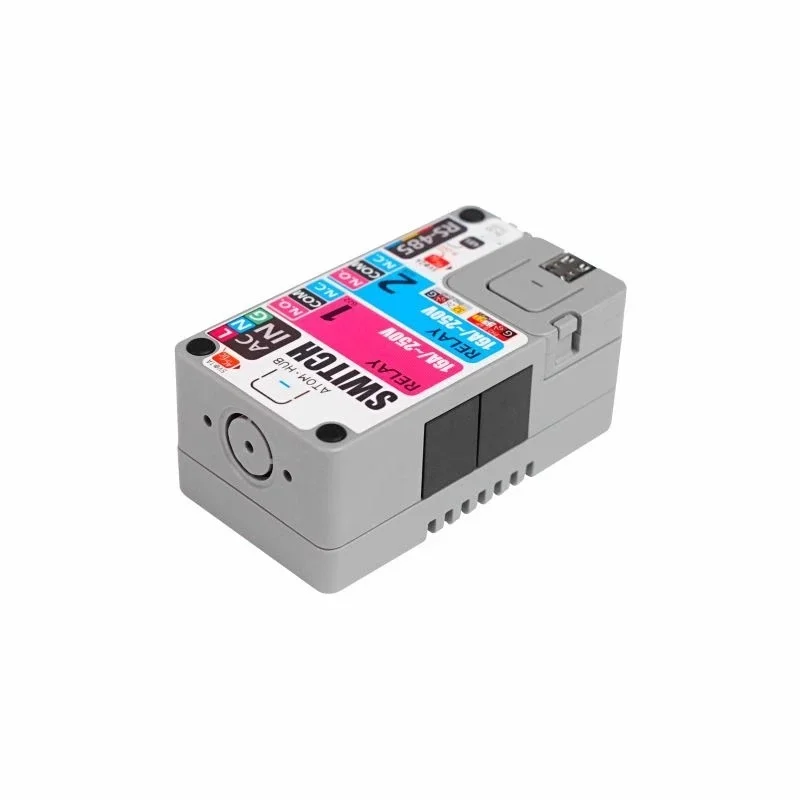

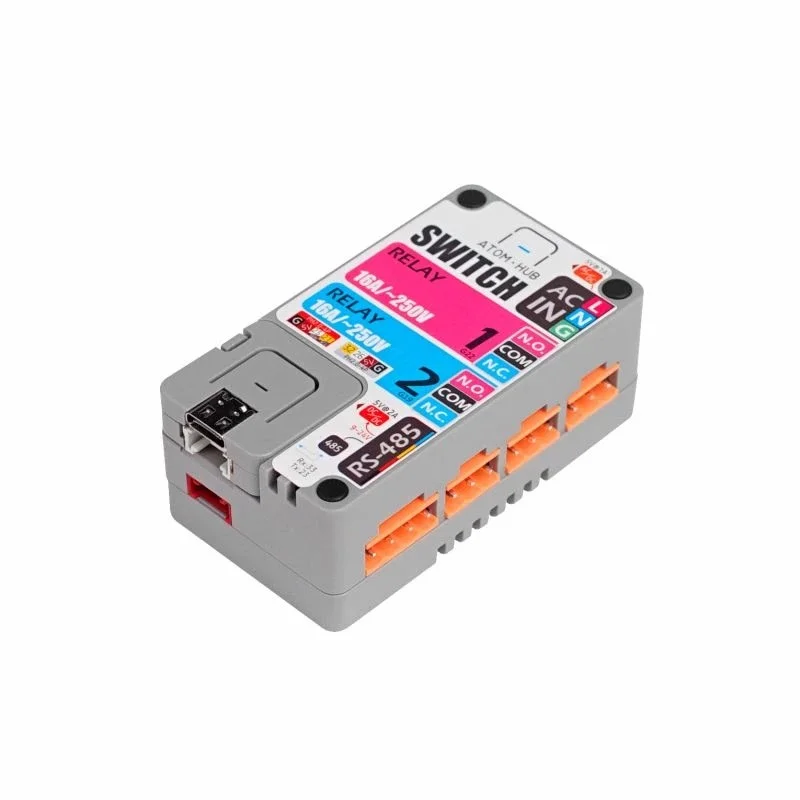

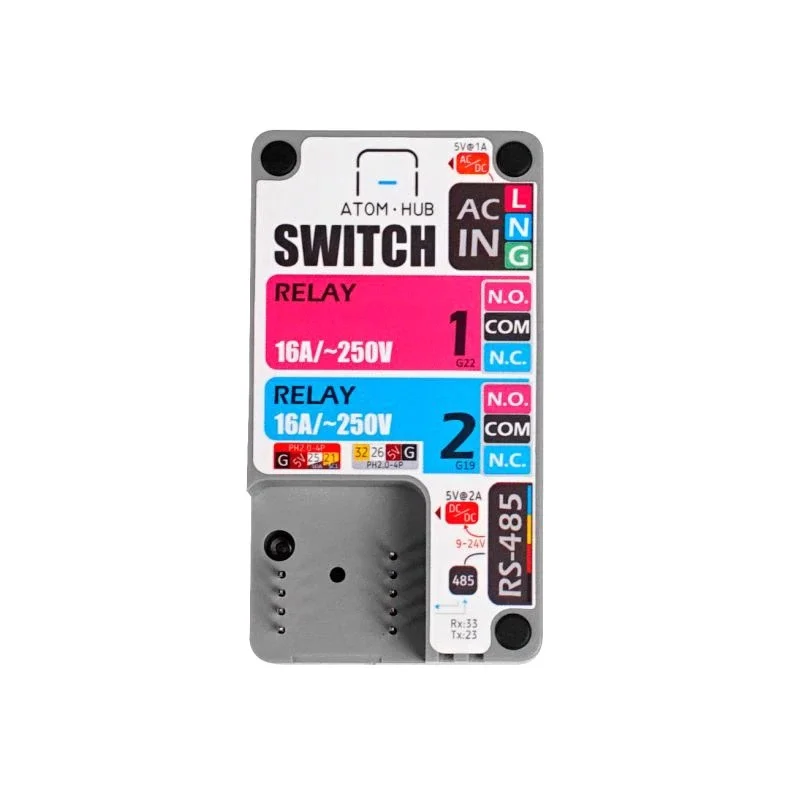

M5Stack ATOM HUB AC/DC Remote Control Switch Kit
The M5Stack ATOM HUB Switch Kit is a programmable remote control switch for the M5ATOM platform, integrating dual relays for AC/DC load control, an RS485 interface with Modbus support, and a built-in AC-DC power supply for IoT automation via Wi-Fi, Bluetooth, or RS485.
Features
- Integrates with M5ATOM Lite/Matrix for Wi-Fi & Bluetooth remote control of AC/DC loads up to 250V/10A via two onboard relays.
- Built-in RS485 interface with SP485EE level converter supports Modbus protocol for industrial automation and daisy-chaining multiple units.
- Onboard AC-DC step-down module supplies 5V/1A to the ATOM core with over-temperature and short-circuit protection for safe operation.

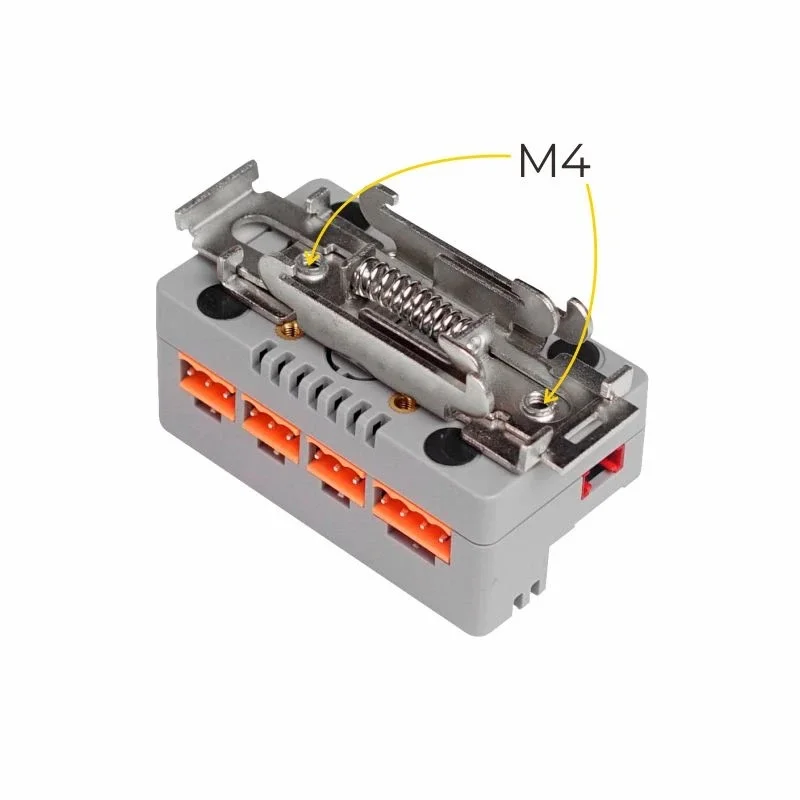

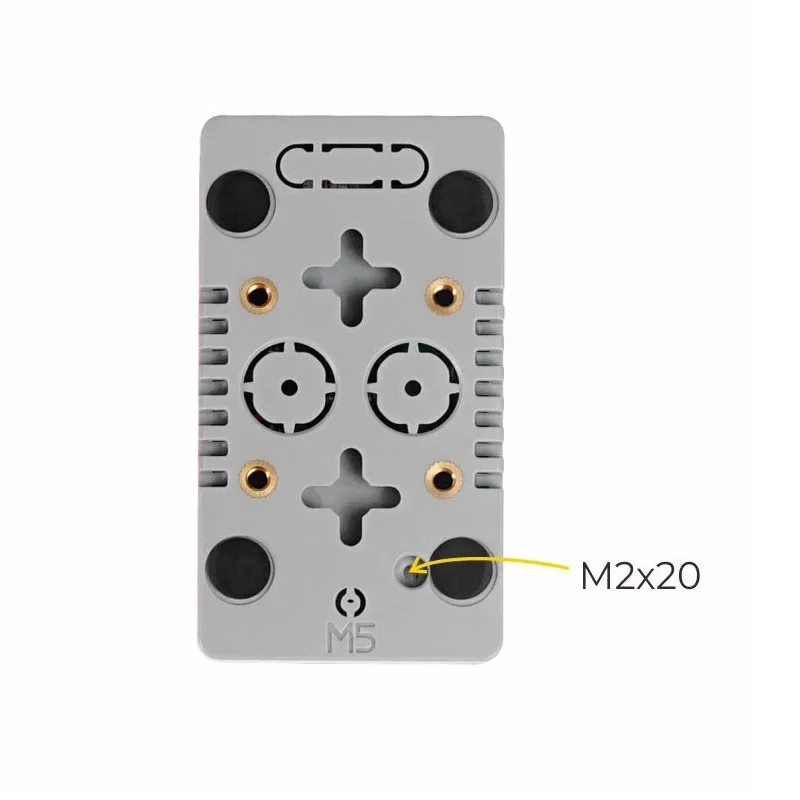

- Includes HY2.0 port for I2C or GPIO expansion and comes with DIN rail mount, magnets, and all necessary connectors for flexible installation.
Out of stock
The M5Stack ATOM HUB Switch is a compact, bi-directional control module designed to pair with the M5ATOM Lite or Matrix core. It serves as a robust interface for remotely switching AC or DC circuits, leveraging the ATOM’s wireless connectivity for smart home and industrial automation. The built-in AC-DC conversion circuitry provides clean 5V power to the microcontroller, while integrated protection mechanisms ensure operational safety.
Engineered for system integration, the board features an industrial-grade RS485 transceiver supporting 9-24V supply, enabling Modbus communication and network expansion. The dual relay outputs handle high inrush currents, making it suitable for controlling motors, lights, and solenoids. The kit’s comprehensive accessory set facilitates mounting on DIN rails, panels, or surfaces, providing a complete solution for deployable IoT switching nodes.
Additional Information
| Weight | 0.134 kg |
|---|---|
| Dimensions | 7.2 × 4 cm |
