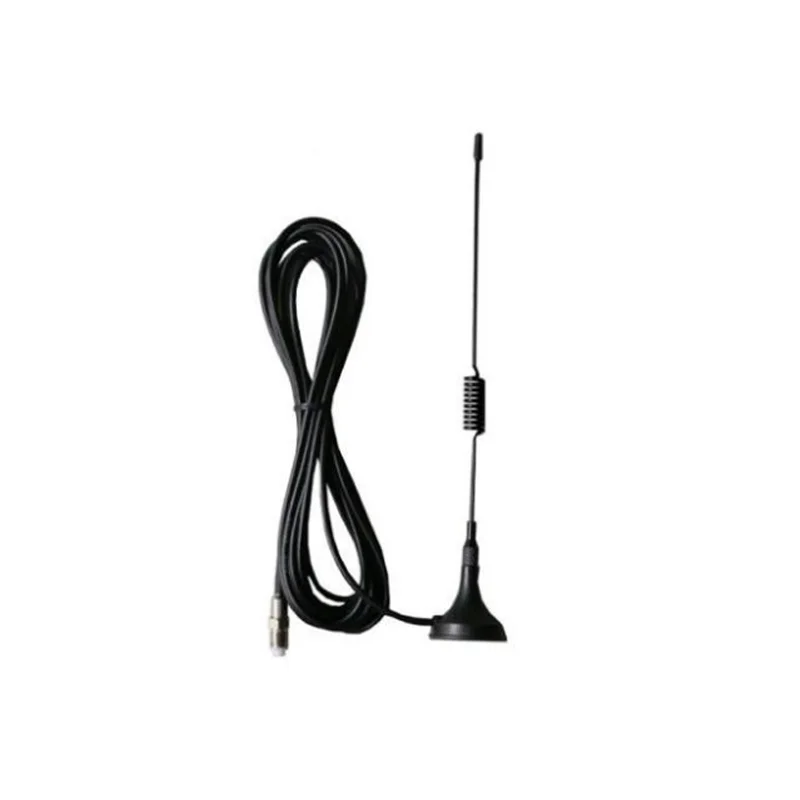

LWC-GSM-MM-06 GSM Antenna, 5.0M RG58 Cable w/ SMA Plug
This LWC-GSM-MM-06 is a 5-meter RG58 coaxial cable assembly with an SMA plug connector, designed for GSM, 2G, and 3G cellular frequency bands (824-960MHz & 1710-2170MHz). It provides a 5/7 dBi gain and 50-ohm impedance for basic RF communication setups, IoT gateways, and remote cellular modules.
Features
- 5-meter RG58 coaxial cable with SMA male plug connector for extended reach.
- Dual-band GSM coverage: 824-960MHz (2G/3G) and 1710-2170MHz (3G/UMTS).
- Provides 5 dBi gain in lower band and 7 dBi in upper band for improved signal strength.
- 50-ohm impedance with VSWR < 2.0 for efficient RF power transfer.
- 10W power handling suitable for standard GSM module transmit power levels.
Out of stock
The LWC-GSM-MM-06 is a practical 5-meter coaxial cable assembly terminating in an SMA plug, engineered for GSM and 3G cellular communication links. Its RG58 cable type offers a balance of flexibility and low loss for installations requiring extended antenna placement from the transceiver module, commonly used in IoT telemetry units, remote monitoring stations, and basic RF test setups.
With a linear polarization and a VSWR under 2.0 across its operational bands, this assembly ensures minimal signal reflection and efficient RF energy transfer. The 10-watt power handling capacity accommodates standard output levels from cellular modems, making it a reliable, low-cost interconnect solution for system integrators and developers deploying GSM-based M2M applications.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 12 × 3 × 2 cm |
