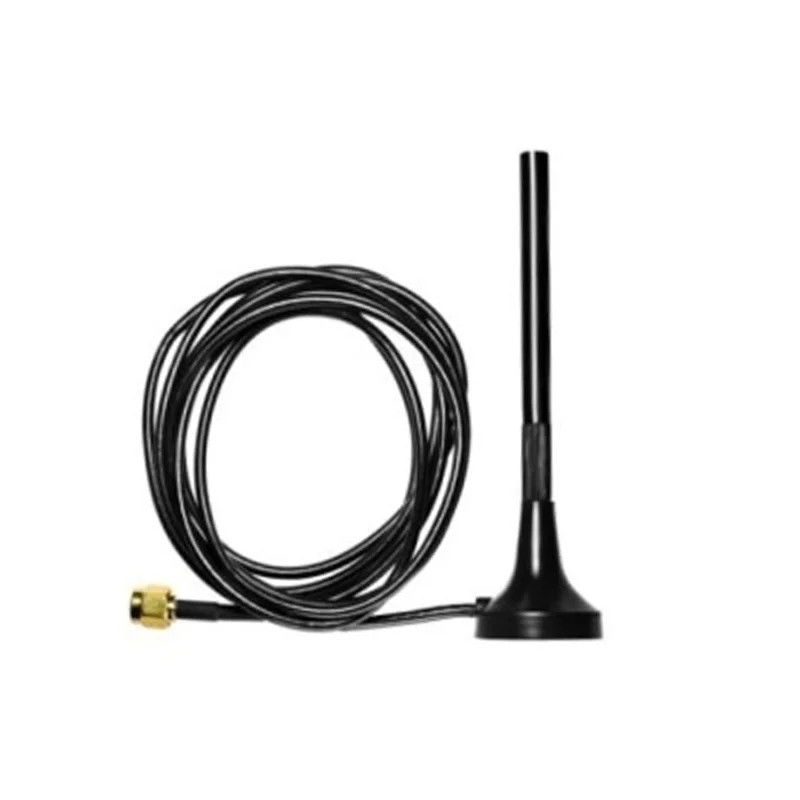

LWC-GSM-MM-03 GSM Antenna w/ 5m RG58 Stub Cable
The LWC-GSM-MM-03 is a linear polarization GSM antenna with a 4 dBi gain, covering 824-960 MHz and 1710-1980 MHz bands, pre-attached to a 5-meter RG58 coaxial stub cable for flexible deployment in 2G/GSM networks.
Features
- Dual-band GSM coverage (824-960 MHz & 1710-1980 MHz) for 2G network compatibility.
- 4 dBi gain with linear polarization for extended range and reliable signal reception.
- Includes a 5-meter RG58 coaxial stub cable (SMA-Plug) for flexible, long-distance installation.
- Robust 10W power handling and VSWR < 2.2 for stable, low-loss RF transmission.
- 50-ohm impedance and 360° horizontal beamwidth for omnidirectional coverage.
Out of stock
The LWC-GSM-MM-03 is a specialized GSM antenna assembly designed for 2G network applications requiring extended cable runs. It integrates a compact, anodized aluminum antenna element with a pre-attached 5-meter RG58 coaxial cable terminated with an SMA-Plug connector. This stub configuration provides the necessary impedance matching and physical flexibility for installations where the antenna must be positioned at a distance from the GSM module or gateway, such as on a mast or outside an enclosure.
Engineered for reliable RF performance, the antenna operates across the primary GSM-850/900 and DCS/PCS bands, delivering a consistent 4 dBi gain. Its linear polarization and omnidirectional horizontal radiation pattern ensure broad coverage for mobile data and SMS telemetry in IoT deployments, asset trackers, and remote monitoring systems. The assembly is built to handle up to 10W of RF power, making it suitable for both low-power sensor nodes and higher-power industrial telemetry units.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 12 × 3 × 2 cm |
