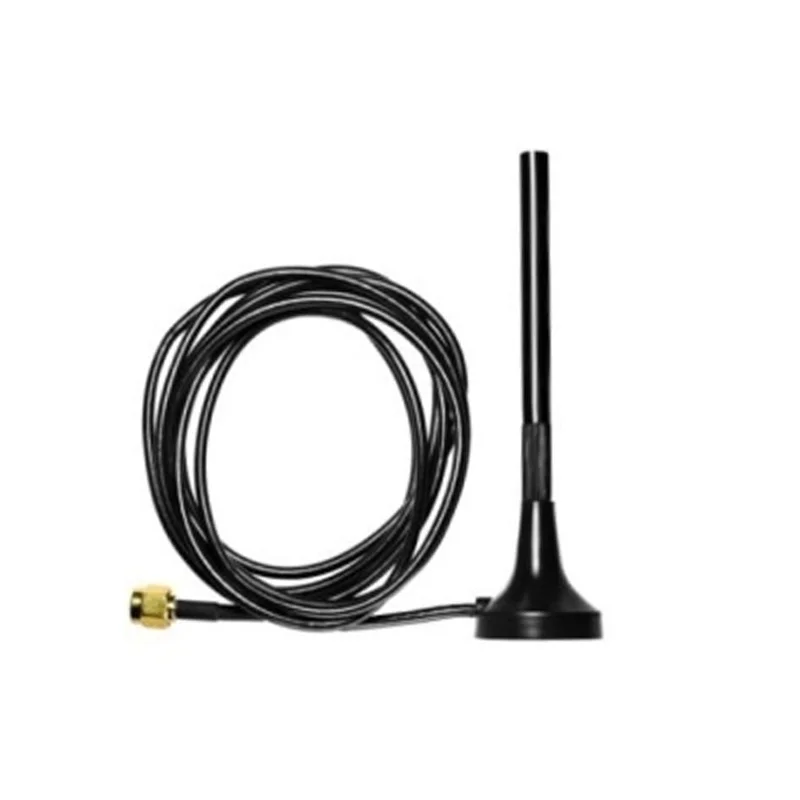

LWC-GSM-MM-03 GSM Antenna Stub Cable (1.0m RG58, SMA)
The LWC-GSM-MM-03 is a 1.0-meter RG58 coaxial cable assembly with an integrated stub, designed for GSM (2G) frequency bands (824-960MHz & 1710-1980MHz). It provides 4 dBi gain and SMA plug termination for impedance matching and flexible integration in cellular IoT setups.
Features
- Dual-Band GSM Coverage: Supports primary 2G bands (824-960MHz & 1710-1980MHz) for reliable cellular IoT connectivity in legacy and M2M networks.
- Integrated Stub Design: The built-in stub section aids in impedance matching and tuning, offering flexibility for optimizing antenna performance in compact RF layouts.
- RG58 Coaxial Construction: Features a 1.0-meter RG58 cable with 50-ohm impedance, ensuring low-loss signal transmission and robust mechanical durability.
- SMA Plug Connector: Terminates with a standard SMA male plug for direct connection to GSM/GPRS modules, routers, or gateways with SMA female jacks.
- Moderate Gain & Power Handling: Delivers 4 dBi gain with a VSWR <2.2 and handles up to 10W RF power, suitable for typical cellular module output levels.
Out of stock
The LWC-GSM-MM-03 is a specialized coaxial cable assembly engineered for GSM RF systems. It combines a 1-meter RG58 cable with an integrated stub section, which serves as a tuning element for impedance matching, helping to fine-tune antenna performance and mitigate mismatch losses in compact device enclosures. This assembly is terminated with an SMA plug, providing a direct, reliable interface for cellular modules and industrial routers.
Constructed with anodized aluminum and standard RG58 coaxial cable, it ensures 50-ohm impedance matching across the dual GSM bands. With a gain of 4 dBi and a power handling capability of 10W, it is built to support continuous operation in IoT telemetry, remote monitoring, and asset tracking applications where stable 2G connectivity is essential.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 12 × 3 × 2 cm |
