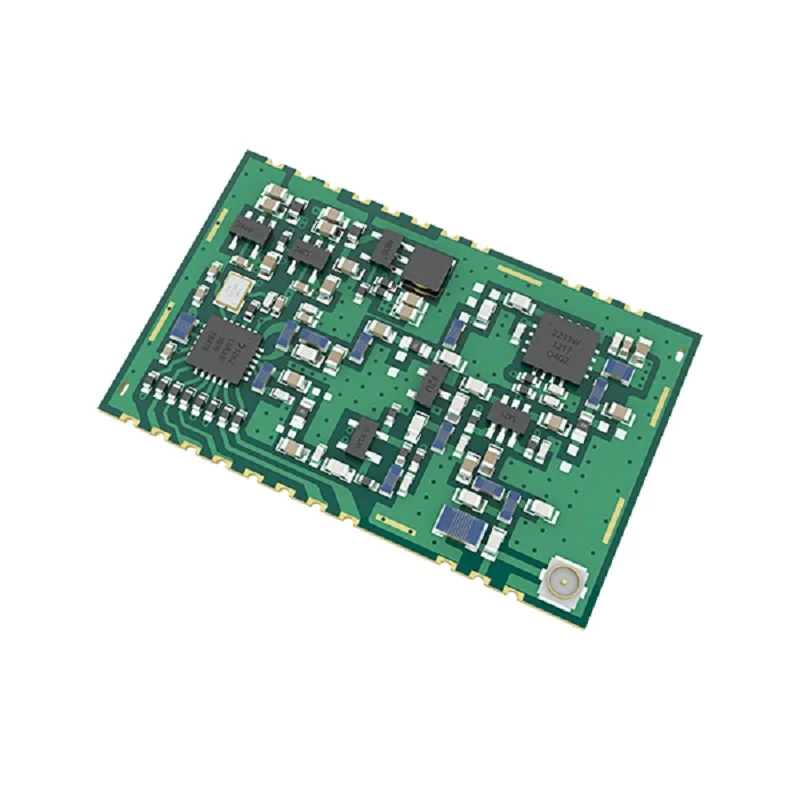

EByte E22-400M33S 433/470MHz 33dBm SX1268 LoRa Transceiver Module
The EByte E22-400M33S is a high-power LoRa transceiver module based on the Semtech SX1268 chip, delivering up to 33dBm (2W) output for long-range wireless links up to 16km. It operates on 433/470MHz bands with a stable 32MHz TCXO and is fully compatible with Arduino, ESP32, and Raspberry Pi platforms via SPI interface.
Features
- High-Power LoRa Transceiver: Features the Semtech SX1268 chip delivering a maximum 33dBm (2W) RF output power for robust, long-range communication up to 16km in open areas.
- Dual-Band Frequency Flexibility: Supports operation on both 433MHz and 470MHz ISM bands, providing regional deployment flexibility for IoT sensor networks and telemetry systems.
- Industrial-Grade Stability: Equipped with a high-precision 32MHz Temperature-Compensated Crystal Oscillator (TCXO) for reliable frequency accuracy across the full -40°C to +85°C operating temperature range.
- Enhanced RF Performance: Integrates an external Low-Noise Amplifier (LNA) and advanced anti-noise circuitry for improved receiver sensitivity (-125dBm) and superior interference resistance in noisy RF environments.

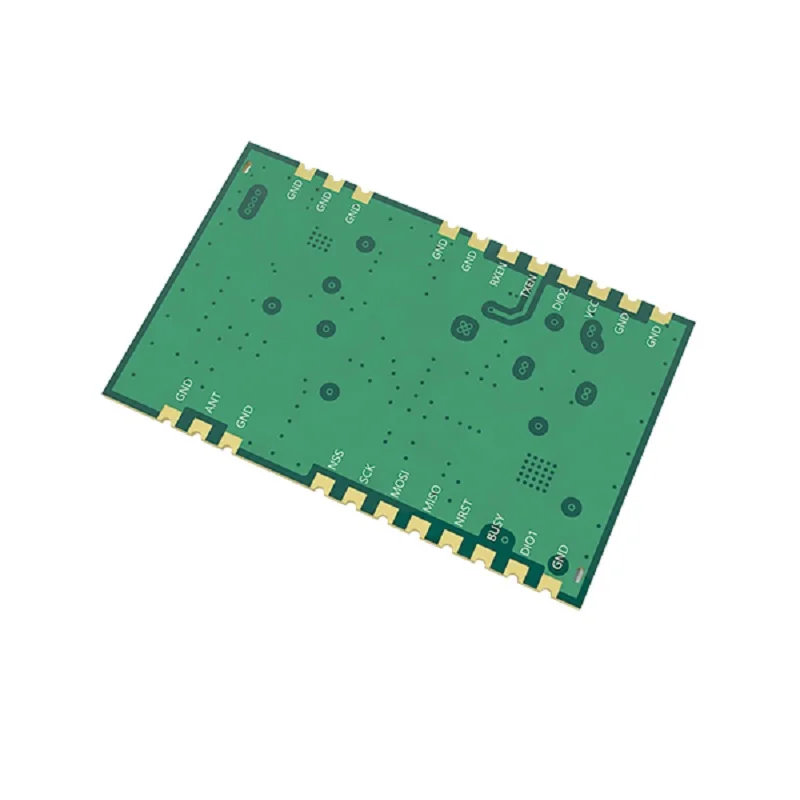

- Developer-Friendly Interface: Provides full IO pin-out with a 3.3V logic SPI interface and IPEX/stamp hole antenna connections, enabling seamless integration and secondary development on popular MCU platforms.
Out of stock
The EByte E22-400M33S is a professional-grade, surface-mount LoRa wireless transceiver module engineered for demanding IoT and industrial telemetry applications. At its core is the latest Semtech SX1268 LoRa chipset, which enables a significant RF transmit power of up to 33dBm (2W), dramatically extending the reliable communication range compared to standard modules. This power is managed efficiently, supporting various output levels to balance range with power consumption.
Designed for stability in harsh conditions, the module incorporates an industrial 32MHz TCXO to maintain precise frequency control despite temperature fluctuations from -40°C to +85°C. Its RF front-end is bolstered with an external LNA and specialized filtering, achieving a receiver sensitivity of -125dBm to pick up weak signals and resist adjacent channel interference. The module communicates via an SPI interface at 3.3V logic levels, making it directly compatible with a vast array of microcontrollers like STM32, ESP32, and Raspberry Pi for rapid prototyping and deployment.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 7 × 7 × 2 cm |
