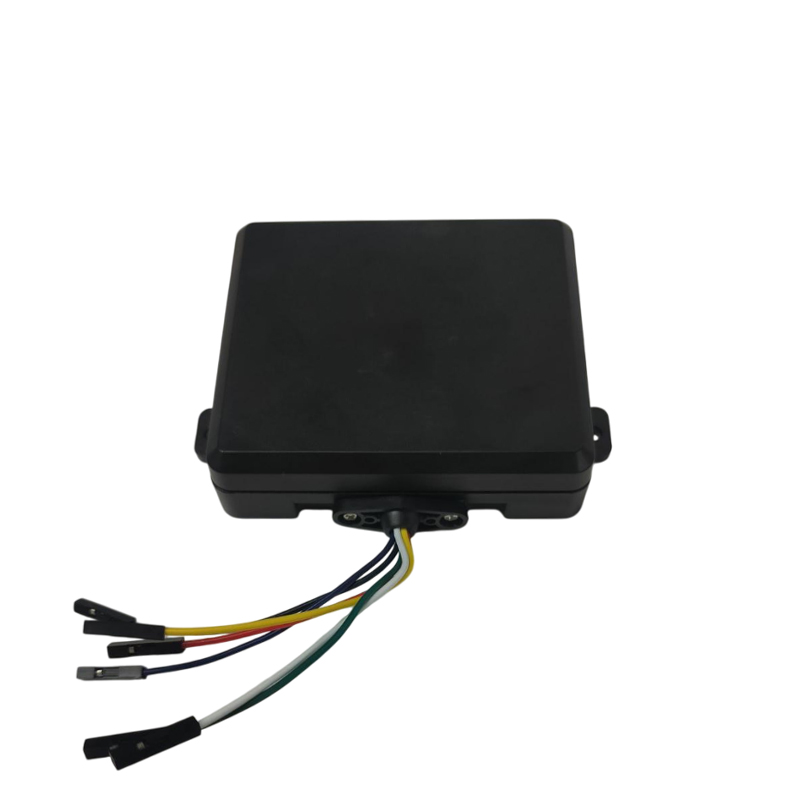

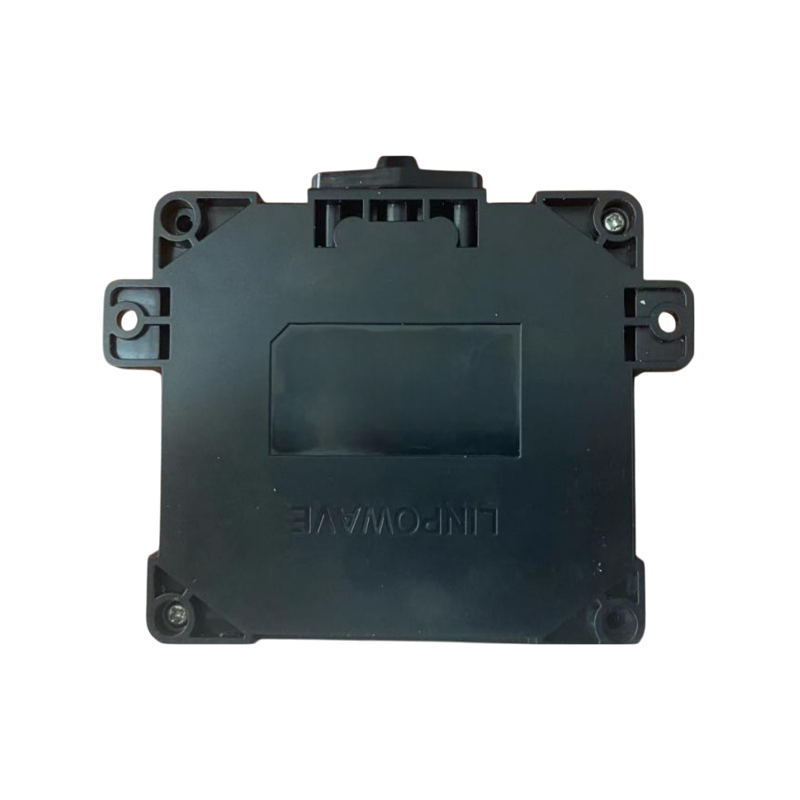

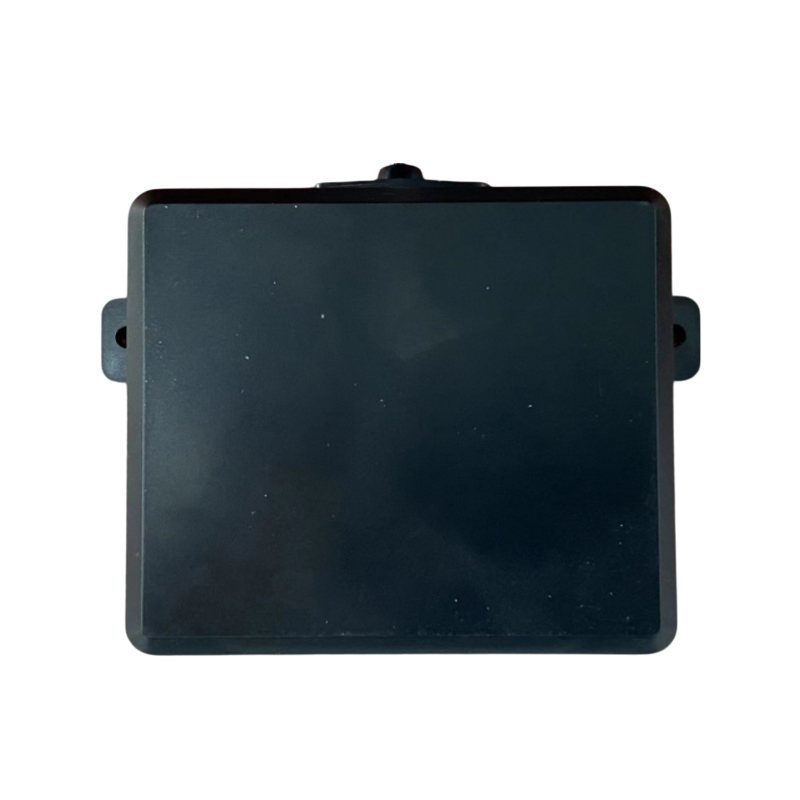

Linpowave V200 4D mmWave Radar Sensor for ADAS - RS-422, 200m Range, UART/CAN
The Linpowave V200 is a high-performance 4D millimeter-wave radar sensor designed for Advanced Driver Assistance Systems (ADAS), autonomous vehicles, and industrial automation. It provides real-time detection of distance, angle, and speed with robust operation in harsh weather conditions, featuring RS-422, UART, and CAN communication interfaces for seamless integration.
Features
- 4D mmWave Radar with 200m maximum detection range and 0.46m resolution.
- Robust all-weather performance, immune to fog, rain, snow, smoke, and dust.
- Dual communication interfaces: TTL serial (UART) and CAN bus for flexible system integration.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Compact and lightweight design (95mm x 80mm) with low power consumption (5V, 1A max).
Out of stock
The Linpowave V200 millimeter-wave radar operates on the 77-81 GHz frequency band, utilizing advanced 4D signal processing algorithms to deliver precise object detection, distance measurement, angle of arrival, and velocity tracking. Its superior performance in adverse weather conditions makes it a critical sensor for safety-critical applications in automotive and industrial sectors.
Engineered for reliability, the sensor features a robust RS-422 interface for long-distance communication alongside standard UART and CAN protocols, enabling direct integration with vehicle ECUs, industrial PLCs, and autonomous system controllers. The compact form factor and wide operating temperature range ensure dependable operation in demanding field deployments.
Additional Information
| Weight | 0.115 kg |
|---|---|
| Dimensions | 9.5 × 8 cm |
