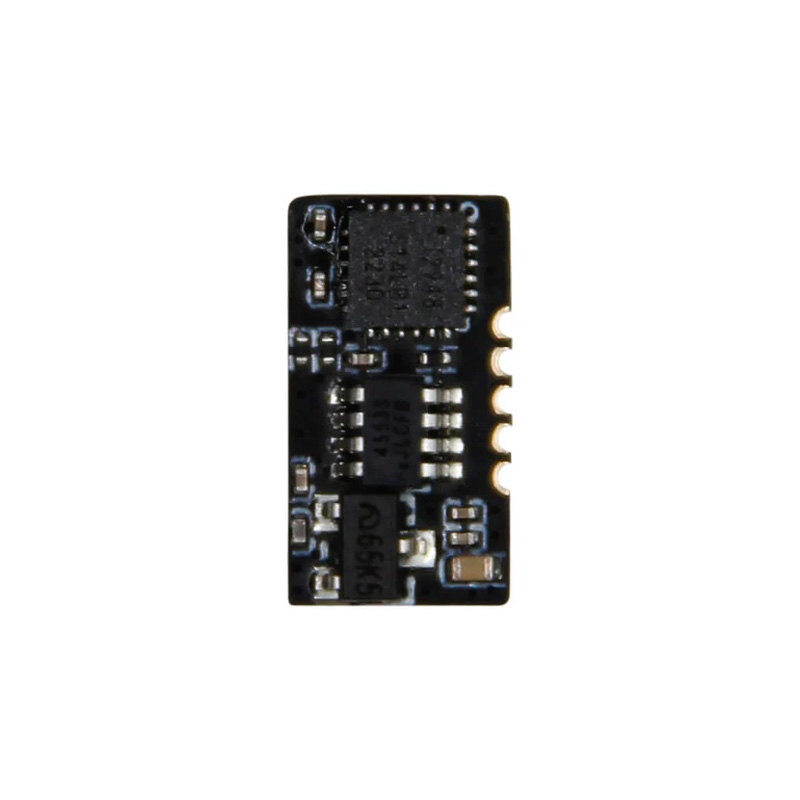

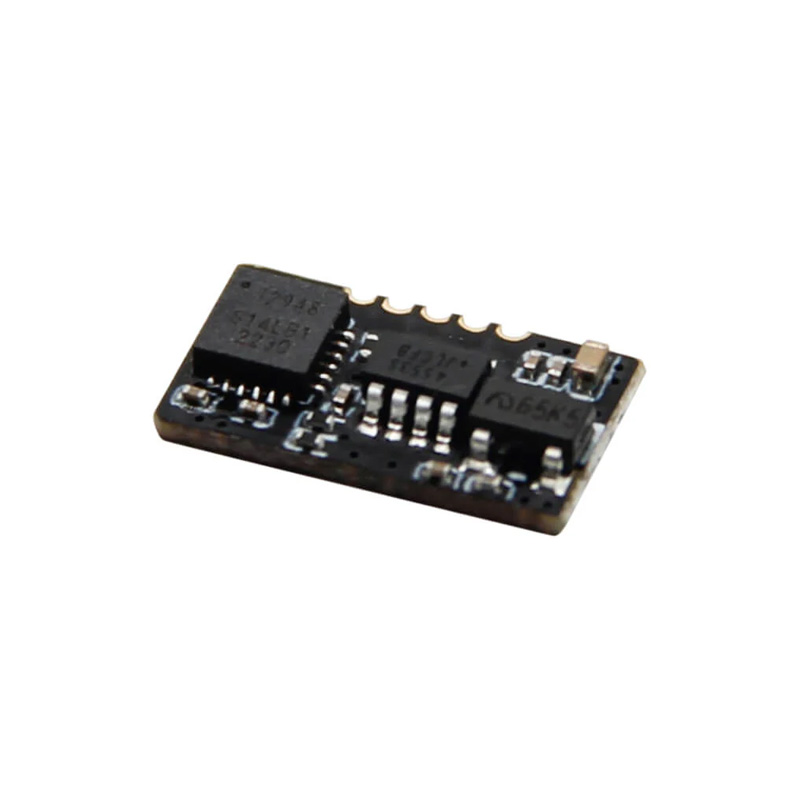

LilyGO T-ICM 9-Axis MEMS MotionTracking™ Sensor Module - I2C/SPI Interface

The LilyGO T-ICM module is typically designed to operate from a 2.4V to 3.6V DC supply. It is crucial to adhere to this range to ensure proper sensor operation and avoid damage. For use with 5V logic systems like Arduino Uno, a logic level converter or a 3.3V regulator is required for the I2C/SPI data lines.

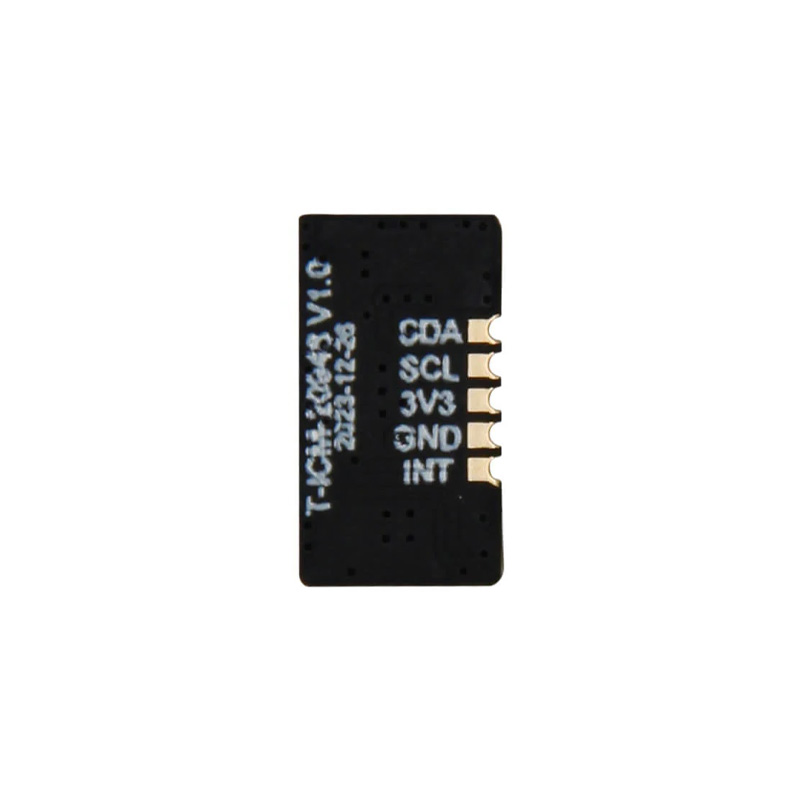

The interface is selected by configuring the module's FSYNC/AD0 pin. Pulling this pin low typically sets the I2C address. SPI is generally preferred for higher data rate applications or when multiple sensors share a bus, while I2C is simpler for projects with limited I/O pins. Both protocols are supported with example libraries available for platforms like Arduino and ESP32.

The onboard DMP runs sensor fusion algorithms, combining raw data from the gyroscope, accelerometer, and magnetometer to compute stable orientation quaternions or Euler angles. This offloads complex mathematical processing from your main microcontroller, provides more accurate attitude data, and simplifies application code by delivering processed motion data directly.

Yes, the module features an auxiliary I2C master interface. This allows the T-ICM's internal DMP to read data from external I2C slave devices, such as barometric pressure sensors, and incorporate that data into its sensor fusion calculations. This creates a more complete inertial navigation system without requiring extra host MCU I2C ports.

Yes, for accurate heading (yaw) calculation, the magnetometer requires calibration to compensate for hard iron and soft iron distortions present in your specific application environment. This typically involves rotating the device through multiple orientations in a figure-eight pattern. Many driver libraries include functions to assist with this calibration process.
