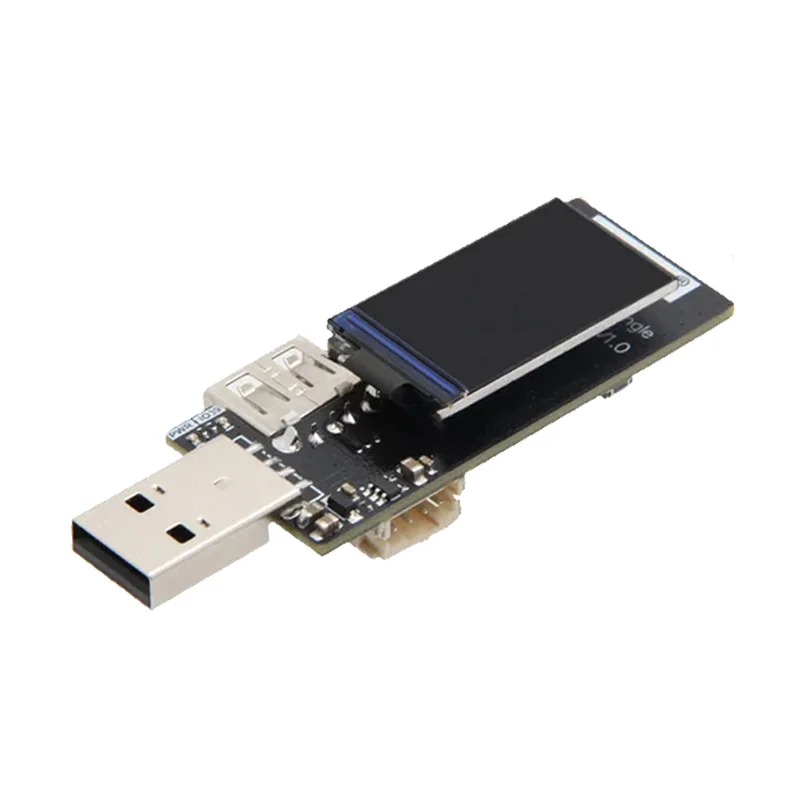

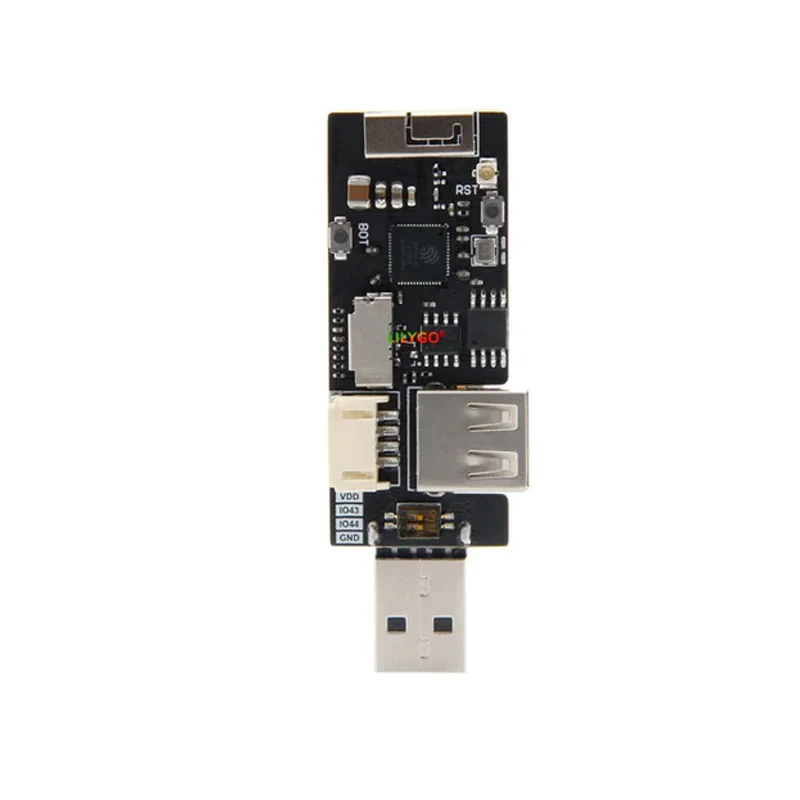

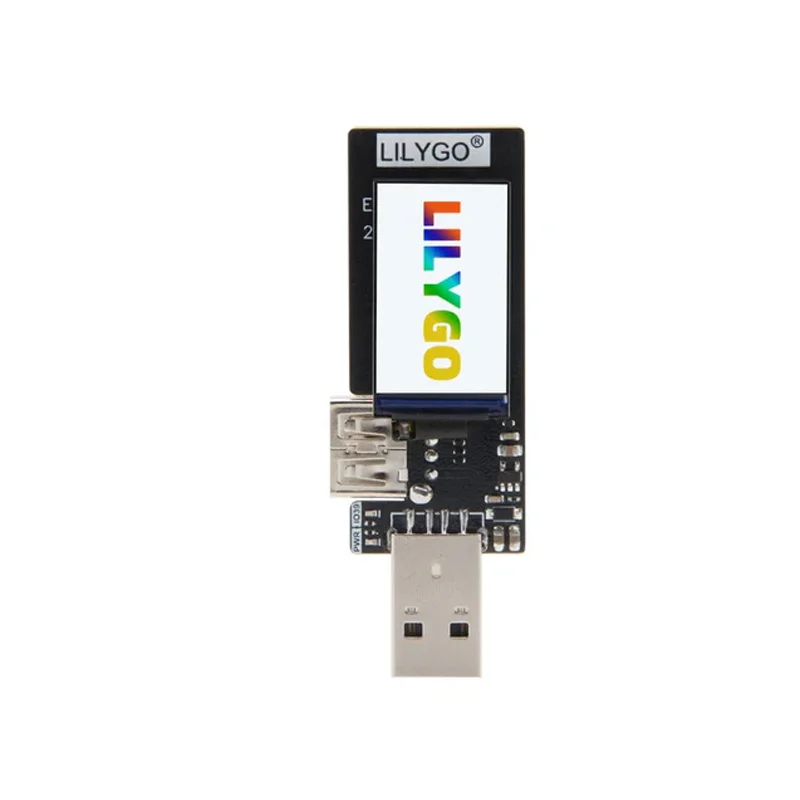

LilyGO T-Dongle ESP32-S2 Dev Board w/ 1.14" LCD & OTG
The LilyGO T-Dongle ESP32-S2 is a compact AIoT development board featuring a 1.14-inch ST7789V LCD, USB OTG interfaces, and integrated Wi-Fi 802.11 b/g/n connectivity, fully programmable via Arduino IDE or VS Code for rapid IoT prototyping.
Features
- ESP32-S2 Xtensa LX7 single-core processor with integrated Wi-Fi 802.11 b/g/n and BLE for robust wireless connectivity.
- Integrated 1.14-inch HD LCD (ST7789V driver) provides a crisp display for user interfaces, sensor data, and debugging without external screens.
- Dual USB OTG interfaces (male and female) offer flexible host/peripheral roles for direct connection to peripherals or acting as a USB device.
- Onboard Grove connector and TF (microSD) card slot enable easy sensor expansion and local data logging capabilities.
- Compact dongle form factor with a built-in 3D WiFi antenna and DIP switch for convenient project deployment and configuration.
Out of stock
The LilyGO T-Dongle ESP32-S2 Development Board is a feature-rich, compact platform designed for embedded developers and makers building connected devices with graphical interfaces. Its core is the ESP32-S2, a cost-optimized single-core Xtensa LX7 processor that delivers reliable Wi-Fi 802.11 b/g/n and Bluetooth Low Energy connectivity, managed by the integrated 3D antenna for stable RF performance.
Beyond wireless capabilities, the board is distinguished by its integrated 1.14-inch ST7789V IPS LCD, providing a sharp display for real-time data visualization, simple GUIs, or status indicators directly on the device. The inclusion of both male and female USB OTG ports offers exceptional flexibility, allowing the board to act as a USB host for keyboards/mice or as a programmable USB peripheral, simplifying integration into various systems.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 7.2 × 6 cm |
