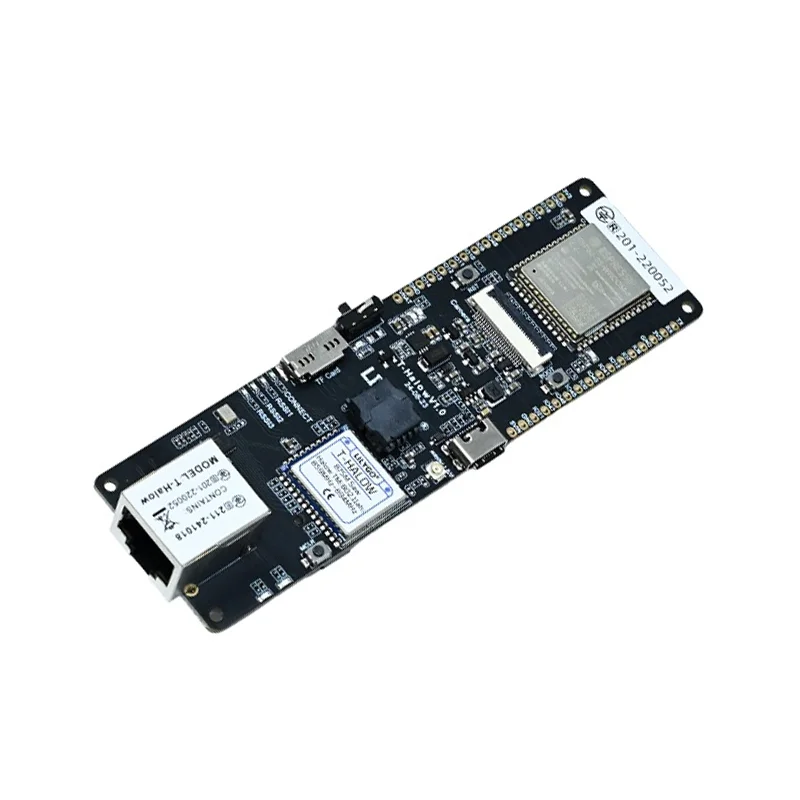

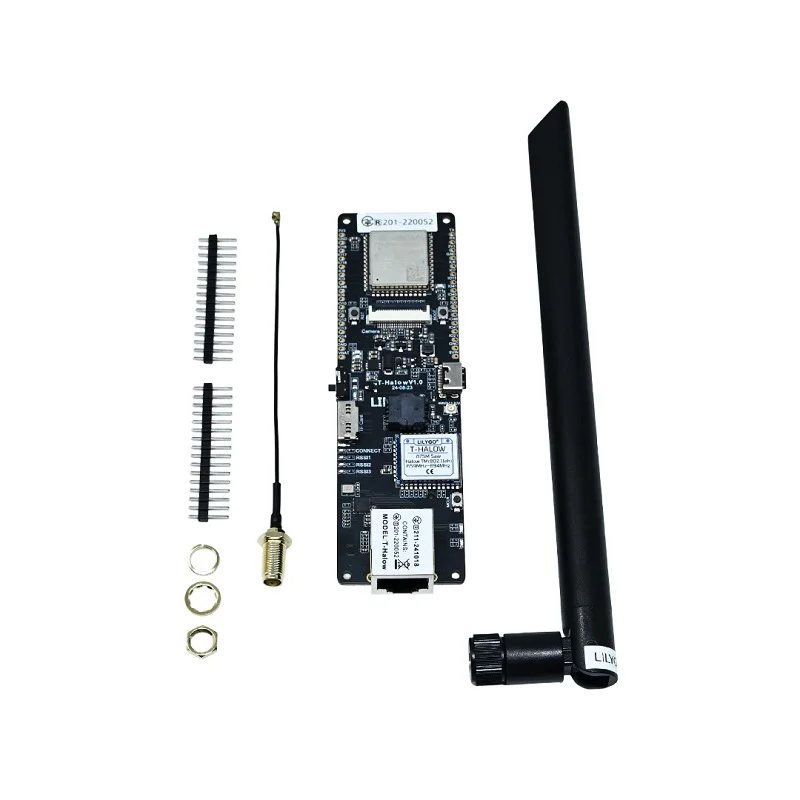

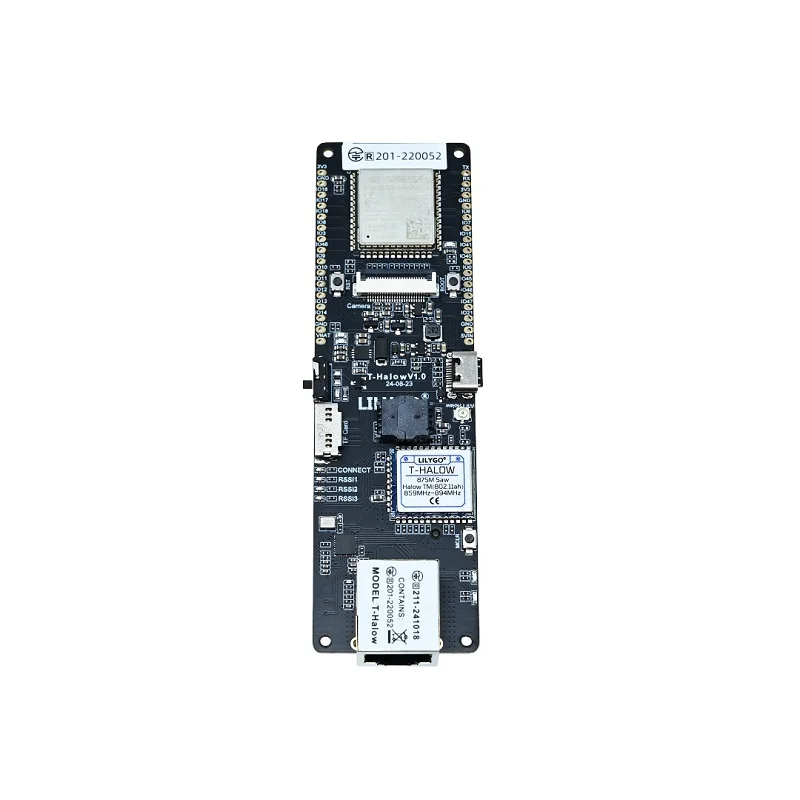

LilyGO T-Halow V1.0 ESP32-S3 859-894MHz SAW Filter Dev Board
The LilyGO T-Halow V1.0 is an ESP32-S3-powered development board featuring a dedicated 859–894MHz sub-GHz transceiver with an 875M SAW filter, designed for long-range, low-power IoT applications and compatible with Arduino IDE, ESP-IDF, and VS Code.
Features
- Dual-band wireless with ESP32-S3 (Wi-Fi/Bluetooth 5 LE) and dedicated 859–894MHz sub-GHz transceiver for long-range links.
- Features an 875M SAW filter for enhanced signal integrity and reduced interference in the target frequency band.
- Powered by a high-performance dual-core Xtensa LX7 MCU with 16MB Flash and 8MB PSRAM for edge AI and data-intensive tasks.
- Includes 18650 lithium battery support for portable, low-power applications and field deployments.
- Offers expanded I/O with a TF-card slot for data logging and is supported by major development platforms like Arduino and ESP-IDF.
Out of stock
The LilyGO T-Halow V1.0 is a specialized IoT development board engineered for robust, long-range wireless communication. It integrates the powerful ESP32-S3 microcontroller, providing 2.4GHz Wi-Fi and Bluetooth 5 LE connectivity, with a dedicated sub-GHz radio transceiver operating in the 859–894MHz band. This dual-radio architecture allows developers to create hybrid networks, using the sub-GHz link for extended-range sensor telemetry and the Wi-Fi/Bluetooth stack for local configuration and gateway connectivity.
At its core, the board leverages the ESP32-S3’s dual-core Xtensa LX7 processor, capable of running at up to 240MHz, and is equipped with substantial 16MB of flash memory and 8MB of PSRAM. This memory configuration supports complex firmware, Over-The-Air (OTA) updates, and buffering for sensor data or lightweight machine learning models. The inclusion of a precise 875MHz SAW (Surface Acoustic Wave) filter on the sub-GHz front-end ensures optimal receiver sensitivity and transmitter spectral purity, which is critical for reliable operation in crowded RF environments.

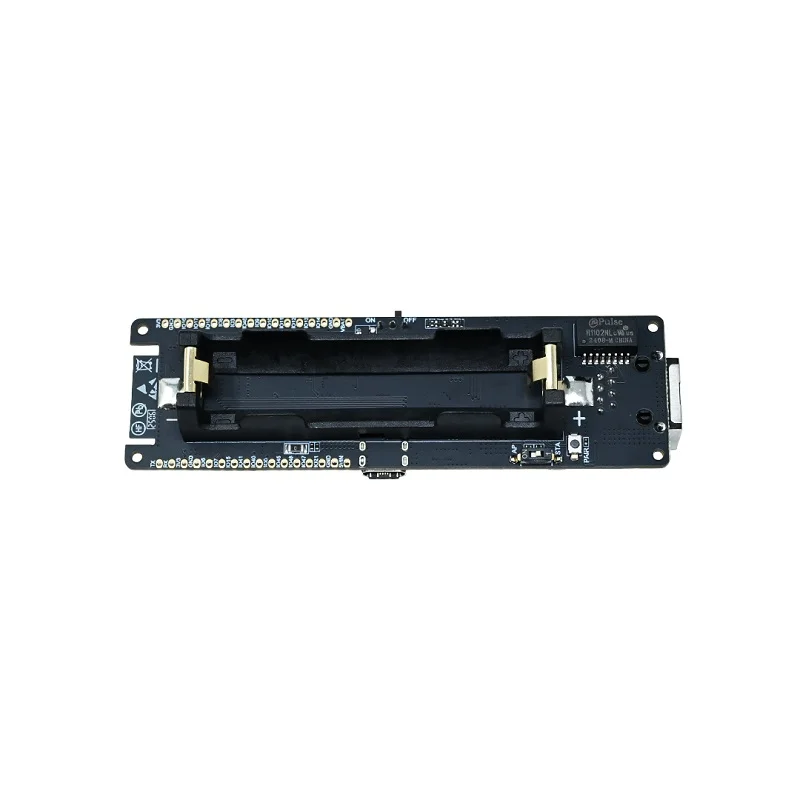

Designed for field deployment, the board supports direct powering from a single 18650 rechargeable lithium cell, simplifying the design of battery-operated remote nodes. Its form factor includes accessible BOOT and Reset buttons for easy firmware flashing, a microSD (TF) card slot for expanded storage, and a layout that exposes the ESP32-S3’s GPIO for sensor and peripheral integration. This makes the T-Halow V1.0 an ideal platform for prototyping LPWAN solutions, Meshtastic networks, industrial telemetry, and smart agriculture systems.
Additional Information
| Weight | 0.032 kg |
|---|---|
| Dimensions | 11.5 × 3.5 cm |
