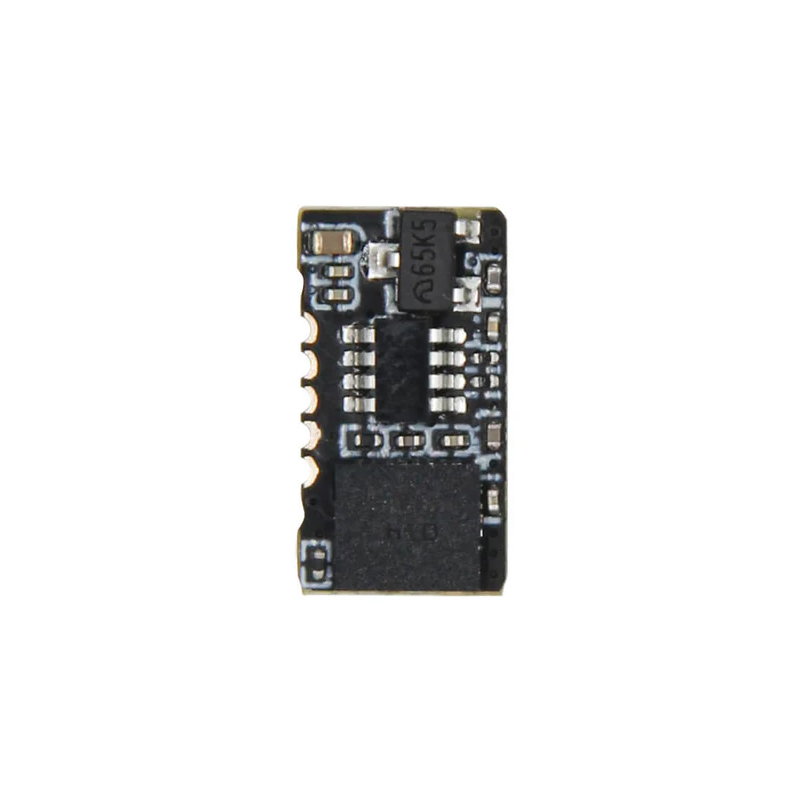

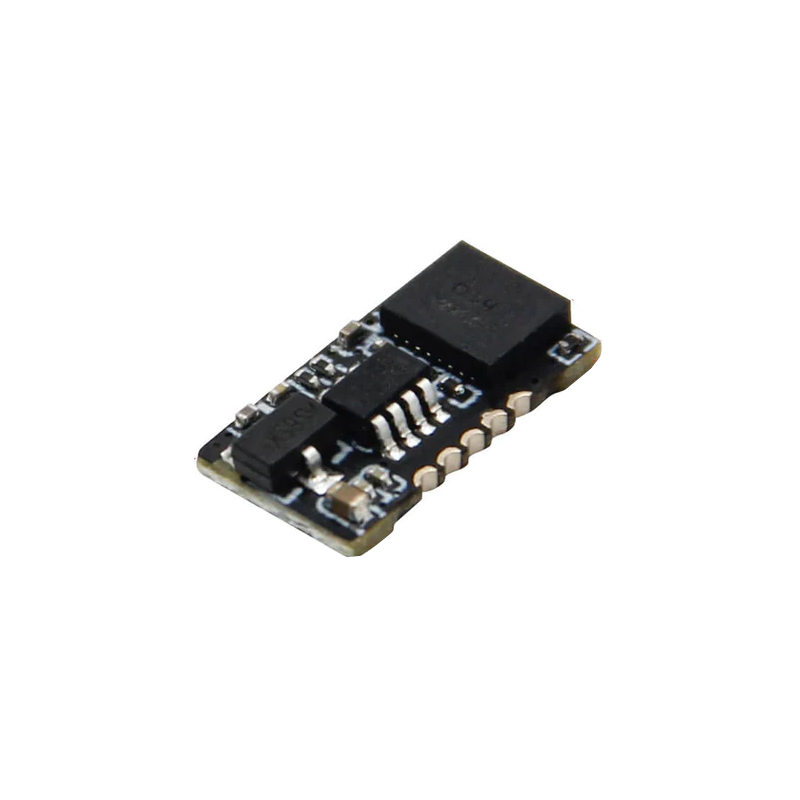

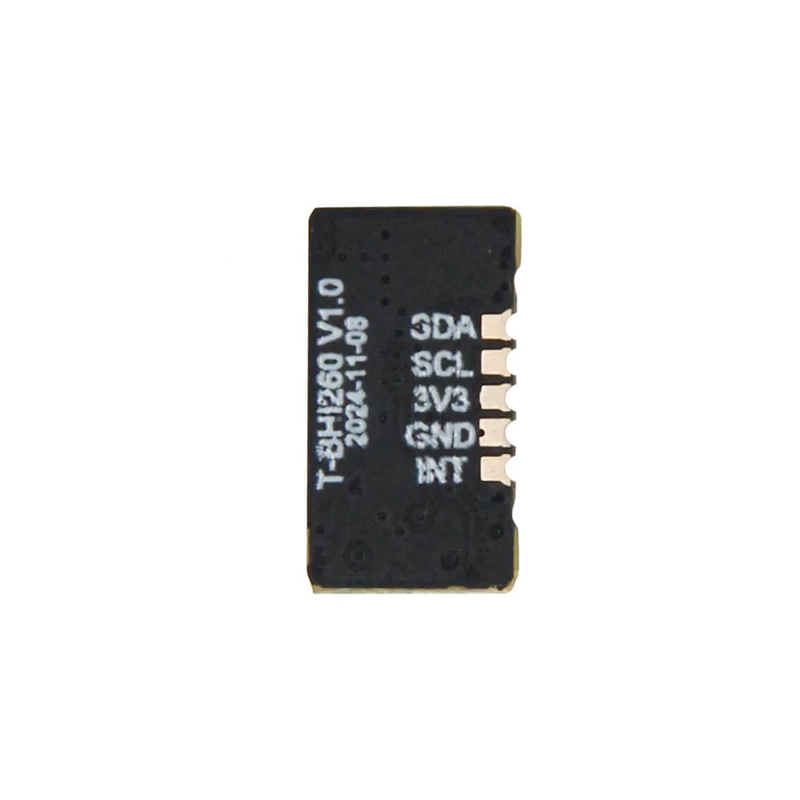

LilyGO T-BHI260AP AI Smart Sensor Module - ESP32 with Bosch BHI260AP IMU
The LilyGO T-BHI260AP is an integrated AI smart sensor module combining an ESP32 microcontroller with a Bosch BHI260AP 9-axis IMU, designed for motion detection, context awareness, and always-on AI applications in IoT wearables, robotics, and edge computing projects.
Features
- Integrated ESP32 (Wi-Fi & Bluetooth) and Bosch BHI260AP AI smart sensor.
- 9-axis IMU: 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer.
- Onboard USB Type-C for power, programming, and data communication.
- Preloaded with gesture recognition and fitness detection algorithms.
- Low power consumption profile optimized for wearable and battery-powered applications.
Out of stock
The LilyGO T-BHI260AP merges a powerful ESP32-S3 microcontroller with Bosch’s advanced BHI260AP sensor hub, creating a compact platform for intelligent motion sensing and edge AI. The BHI260AP features a dedicated AI core capable of running complex algorithms like gesture recognition, step counting, and orientation tracking directly on the sensor, offloading the main processor for enhanced efficiency and lower system power.
This module is engineered for sensor fusion, combining data from its integrated 9-axis inertial measurement unit (accelerometer, gyroscope, magnetometer) to provide accurate motion context. Its compact form factor and onboard USB Type-C connector facilitate rapid prototyping and integration into wearable devices, robotics, and smart IoT systems using popular frameworks like Arduino, ESP-IDF, and PlatformIO.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.1 × 0.5 cm |
