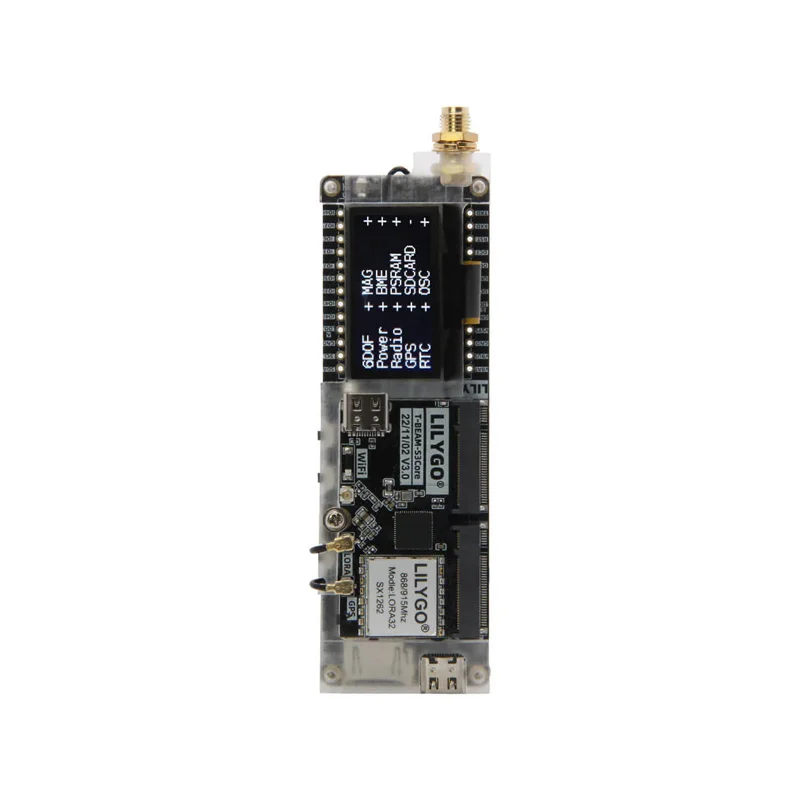

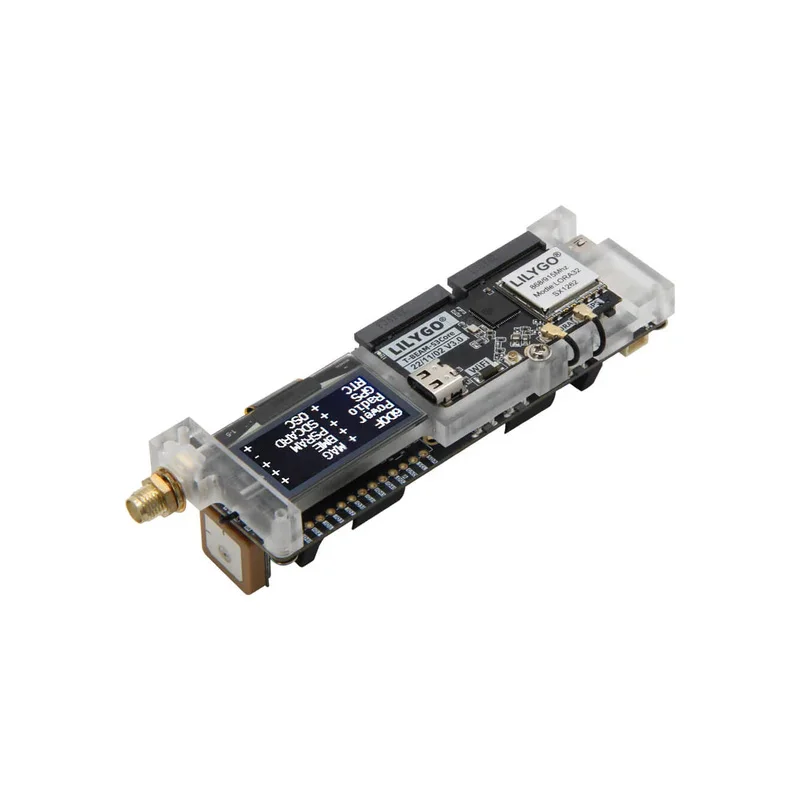

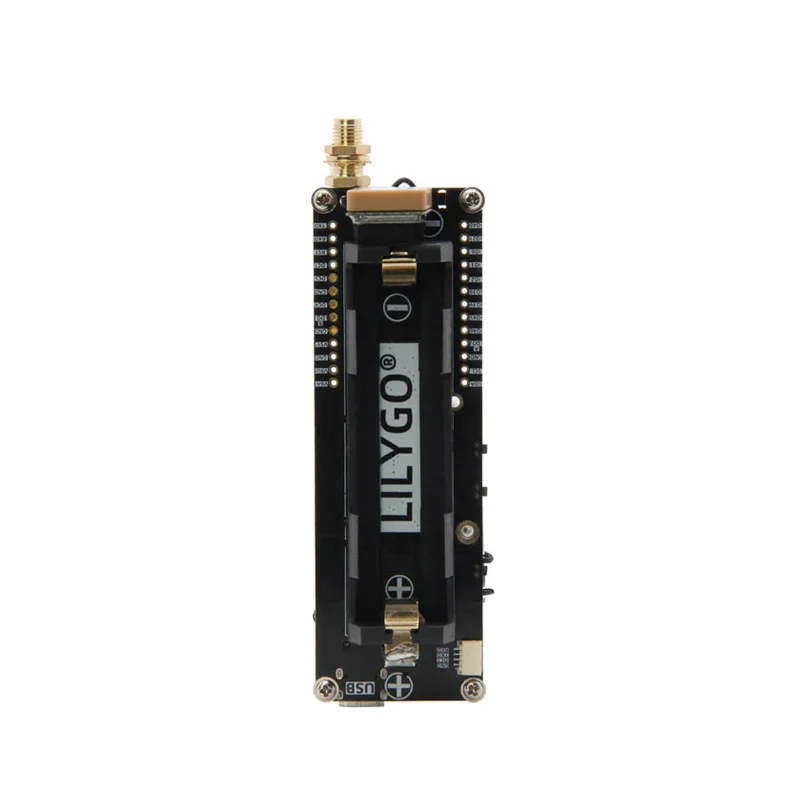

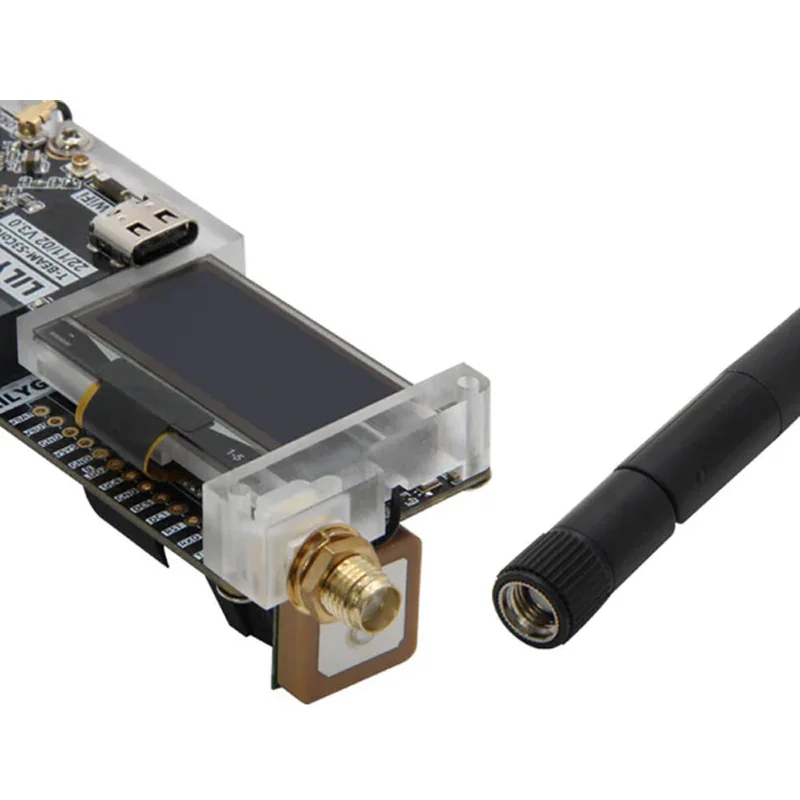

LilyGO T-Beam SUPREME ESP32-S3 LoRa Dev Board w/ L76K GPS 433MHz
The LilyGO T-Beam SUPREME is an ESP32-S3FN8-powered LoRa development board featuring integrated GPS (L76K) and 433MHz LoRa transceiver, designed for long-range IoT messaging and tracking applications. It supports Arduino IDE, PlatformIO, and MicroPython for flexible firmware development.
Features
- Powered by ESP32-S3FN8 dual-core LX7 processor with 8MB Flash & 8MB PSRAM for complex IoT applications.
- Integrated 433MHz LoRa transceiver and L76K GNSS module for long-range communication and precise location tracking.
- Supports 2.4GHz Wi-Fi and Bluetooth 5.0 (LE) for versatile local connectivity and gateway functions.
- Pre-configured for Meshtastic firmware, enabling off-grid, peer-to-peer messaging networks without cellular dependency.
- Features multiple GPIO pins and a low-power design suitable for portable, battery-powered sensor nodes and trackers.
Out of stock
The LilyGO T-Beam SUPREME is a feature-rich development platform built around the Espressif ESP32-S3FN8 microcontroller, combining long-range LoRa communication, precise GPS positioning, and local Wi-Fi/Bluetooth connectivity. Its dual-core LX7 processor and ample 8MB PSRAM handle demanding tasks like GPS data parsing and mesh networking protocols efficiently, making it ideal for remote telemetry and decentralized communication projects.
Engineered for outdoor and off-grid use, the board integrates a 433MHz LoRa transceiver for kilometer-range links and an L76K GNSS receiver for accurate latitude/longitude fixes. The robust design and support for low-power sleep modes enable deployment in portable trackers, environmental monitors, and IoT sensor nodes where battery life is critical. It serves as a complete hardware solution for developers building on the Meshtastic ecosystem or custom LoRaWAN networks.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 16 × 6 × 7 cm |
