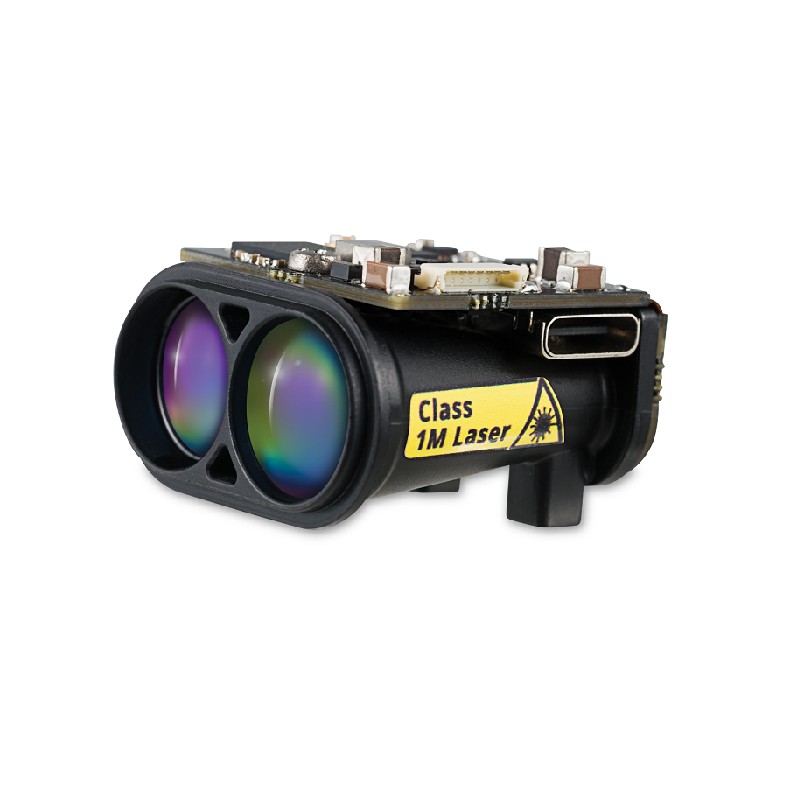

LightWare LiDAR GRF-250 (250 m) - USB/UART/I2C Interface
The LightWare GRF-250 is a compact, long-range LiDAR sensor offering precise distance measurement from 20 cm to 250 meters. Featuring USB, UART, and I2C interfaces with 3.3V/5V logic compatibility, it is engineered for integration into EO/IR gimbals, UAVs, and robotics platforms requiring high-performance, lightweight ranging.
Features
- Ultra-long detection range from 0.2 m to 250 m (820 ft).
- Extremely lightweight and compact design at 10.65 grams.
- Multi-protocol interface: USB, UART, and I2C (3.3V TTL, 5V tolerant).
- High update rate configurable from 1 to 50 Hz.
- Robust operating temperature range from -20°C to +60°C.
Out of stock
The GRF-250 LiDAR sensor utilizes a 905 nm laser wavelength to deliver reliable, long-range distance data with an accuracy of ±50 cm (1 sigma). Its mechanical boresight is precisely aligned within ±1.5° relative to its mounting interface, ensuring stable integration for targeting and localization systems.
Engineered for demanding environments, the sensor’s compact footprint (35mm x 31mm x 21mm) and minimal weight make it ideal for space-constrained and weight-sensitive applications such as aerial survey drones, autonomous navigation, and precision gimbal stabilization. The configurable update rate allows optimization for either high-speed tracking or power-efficient operation.
Additional Information
| Weight | 0.01065 kg |
|---|---|
| Dimensions | 3.5 × 3.1 × 2.1 cm |
