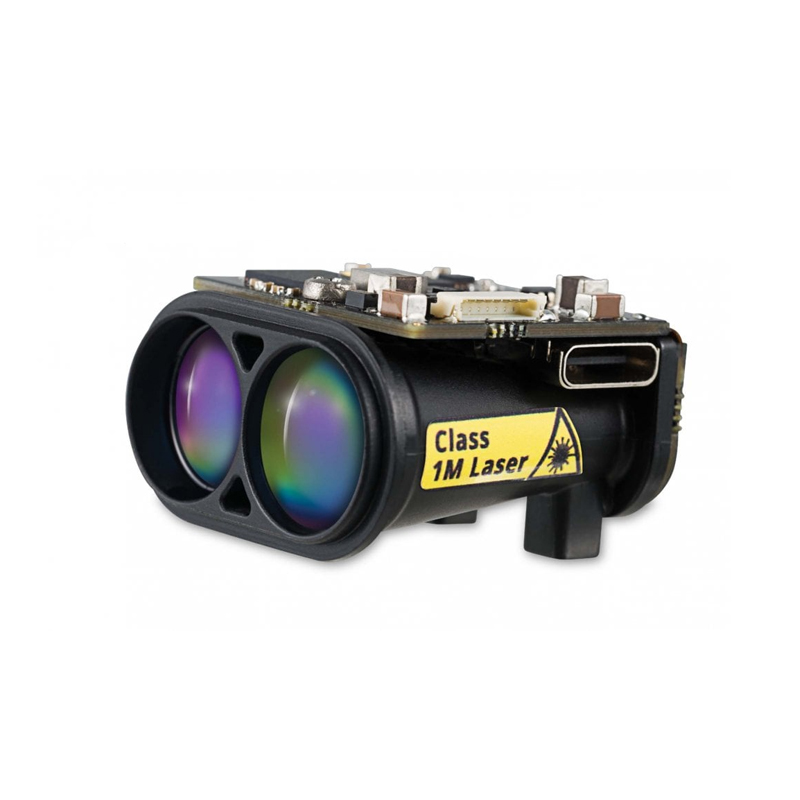

LightWare GRF-500 500m Laser Rangefinder - USB/UART/I2C Interface
The LightWare GRF-500 is a compact 500m laser rangefinder module utilizing time-of-flight (ToF) technology for precise distance measurement in robotics, drones, and gimbal systems. It offers flexible 5V-tolerant communication via USB, UART, and I2C interfaces for easy integration with flight controllers, industrial PLCs, and embedded platforms like Raspberry Pi and Arduino.
Features
- Extended 500m measurement range using a 905 nm Class 1M eye-safe laser.
- Ultra-lightweight and compact design at 10.7 grams and 35 x 31 x 21 mm.
- Multi-interface support with 5V-tolerant USB, UART, and I2C communication.
- High accuracy of ±50 cm, unaffected by target color, surface, or ambient light.
- Low power consumption of 0.6W for extended operation in mobile and aerial applications.
Out of stock
The GRF-500 laser rangefinder employs precise time-of-flight (ToF) measurement with a 905 nm infrared laser to deliver reliable distance data up to 500 meters. Its performance is consistent across various surfaces and lighting conditions, including complete darkness, making it suitable for critical navigation and targeting systems.
Engineered for integration into space-constrained payloads, the module features a robust aluminum housing and operates within an industrial temperature range of -20°C to +60°C. The configurable output rate, adjustable from 0.5 to 10 Hz, allows optimization for different application bandwidths and power profiles.
Additional Information
| Weight | 0.0107 kg |
|---|---|
| Dimensions | 3.5 × 3.1 × 2.1 cm |
