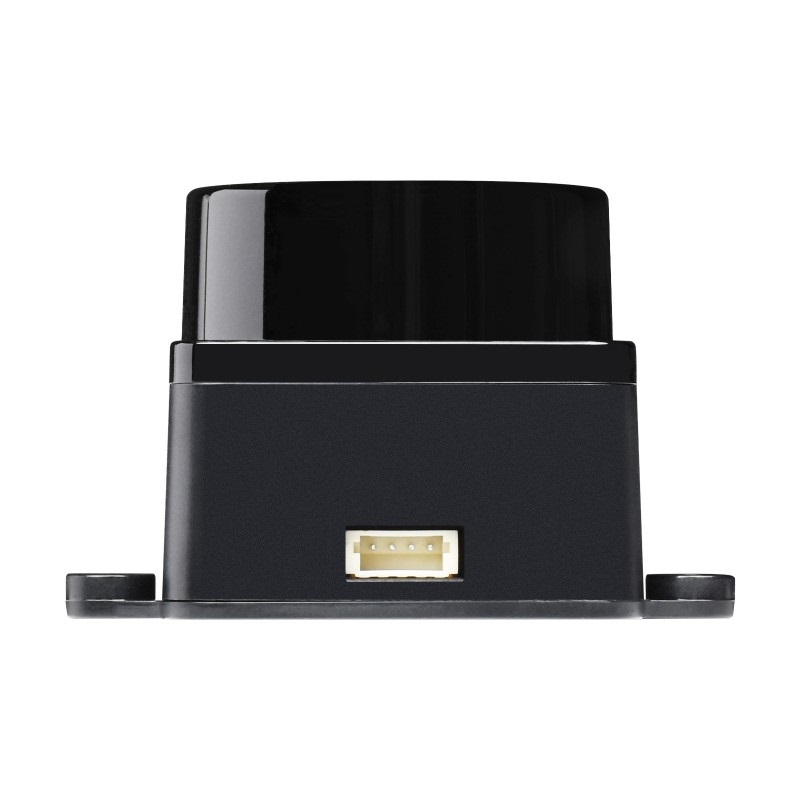

LDRobot D500 LiDAR Kit - 12m Range, 5000Hz Sampling, UART Interface
The LDRobot D500 LiDAR Kit is a high-performance Direct Time-of-Flight (DTOF) laser ranging module featuring a 12-meter detection radius and 5000Hz sampling frequency. It communicates via UART interface and is compatible with robotics platforms, autonomous navigation systems, and 3D mapping applications requiring precise spatial data.
Features
- DTOF laser ranging technology with 12m maximum detection distance.
- High 5000Hz sampling frequency and 10Hz scanning frequency for dense point clouds.
- UART communication interface for easy integration with microcontrollers and SBCs.
- 360° scanning range and 60K Lux anti-glare capability for robust operation.
- Compact, lightweight design (50g) with 5V DC power supply.
Out of stock
The LDRobot D500 LiDAR Kit employs Direct Time-of-Flight (DTOF) laser ranging technology to deliver high-precision distance measurements. Its 5000Hz sampling frequency enables the capture of dense environmental data points, while the 10Hz mechanical scanning frequency provides a full 360° field of view. The module is engineered for stability in varied lighting conditions, featuring anti-glare interference resistance up to 60,000 Lux.
Designed for seamless integration into mobile robotics and autonomous systems, the D500 outputs spatial data via a standard UART serial interface. Its compact form factor and low power consumption make it suitable for deployment on drones, service robots, and automated guided vehicles (AGVs) where accurate real-time mapping and obstacle avoidance are critical.
Additional Information
| Weight | 0.045 kg |
|---|---|

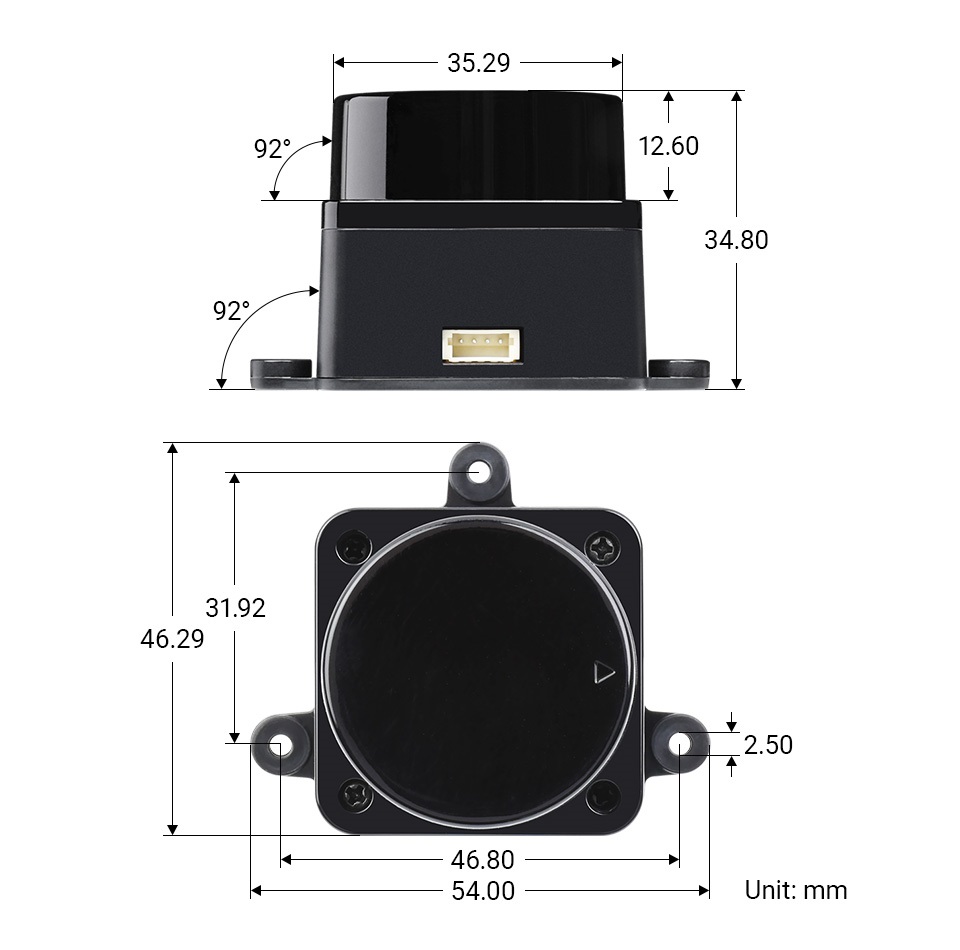

| Dimensions | 5.4 × 4.629 × 3.5 cm |
