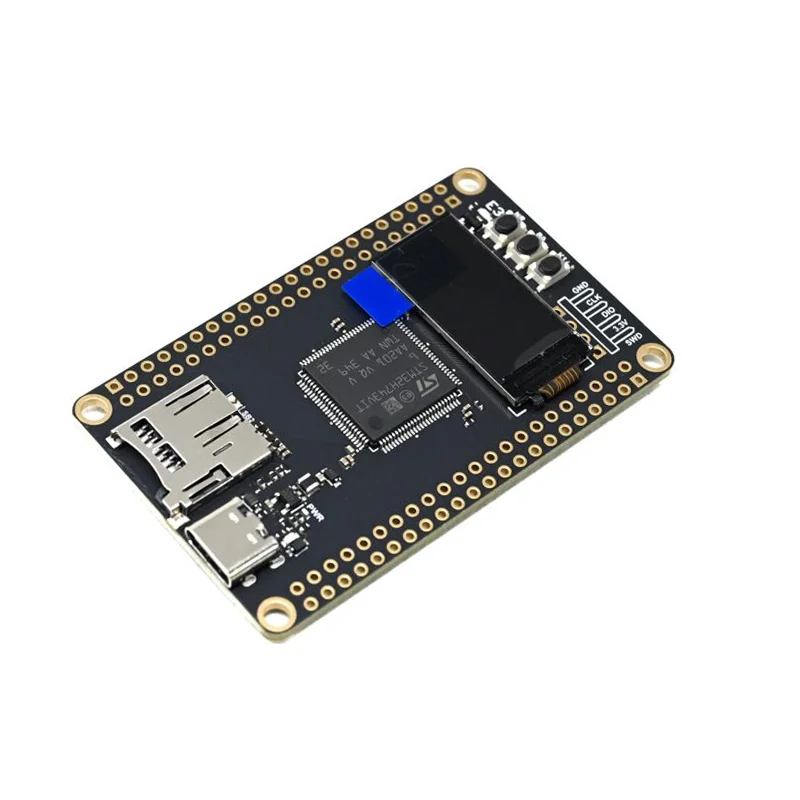

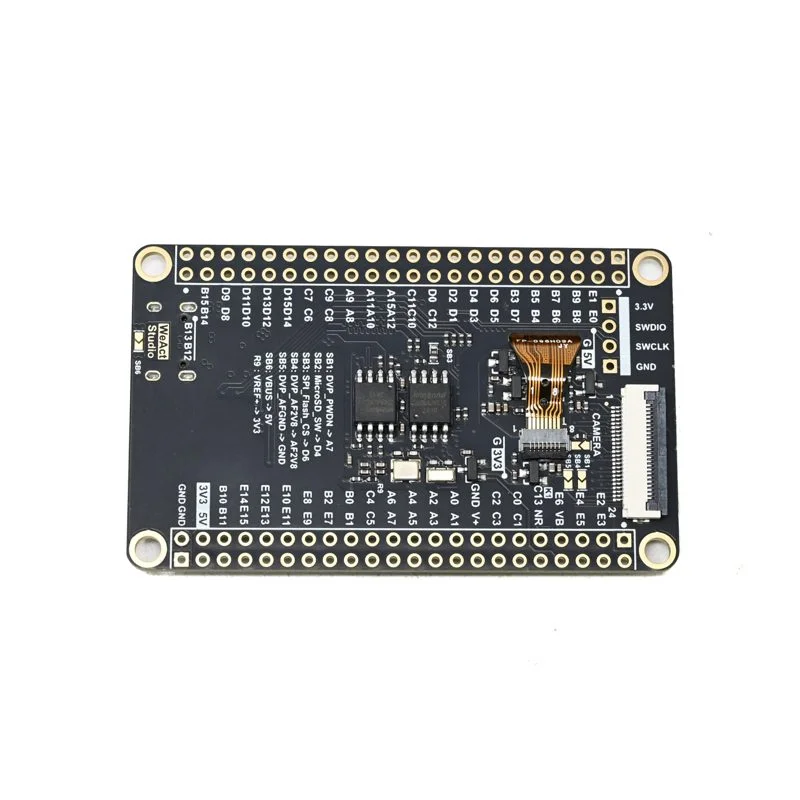

WeAct Studio STM32H743VIT6-LCD Demo Motherboard
The WeAct Studio STM32H743VIT6-LCD Demo Motherboard is a high-performance ARM Cortex-M7 development platform, clocked at 480MHz with 1MB RAM and 8MB QSPI Flash, designed for demanding embedded applications and system prototyping.
Features
- High-performance STM32H743VIT6 MCU with ARM Cortex-M7 core running at 480MHz, featuring an integrated FPU and DSP instructions for complex signal processing.
- Generous 1MB RAM and 8MB QSPI Flash (executable) plus 8MB SPI Flash, providing ample memory for large applications and data storage.
- Robust four-layer PCB with gold-plated TG155 contacts ensures signal integrity, durability, and stable operation in demanding environments.
- Lead-free manufacturing process aligns with modern environmental standards and RoHS compliance for global deployment.
- Integrated LCD interface supports display integration, making it ideal for HMI, instrumentation, and advanced embedded GUI projects.
Out of stock
Engineered for developers requiring maximum computational headroom, the WeAct Studio STM32H743VIT6-LCD Demo Motherboard leverages the STM32H7 series to deliver 480MHz performance with full floating-point and DSP support. Its architecture is optimized for real-time control, digital signal processing, and graphical applications where low latency and high throughput are critical.
The board’s four-layer design with gold-plated contacts minimizes EMI and ensures reliable high-speed signal transmission. With 8MB of QSPI Flash for XIP (execute-in-place) and an additional 8MB SPI Flash, it offers extensive non-volatile storage for firmware, file systems, or graphical assets, facilitating complex project development without external memory constraints.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 6 × 9 × 3 cm |
