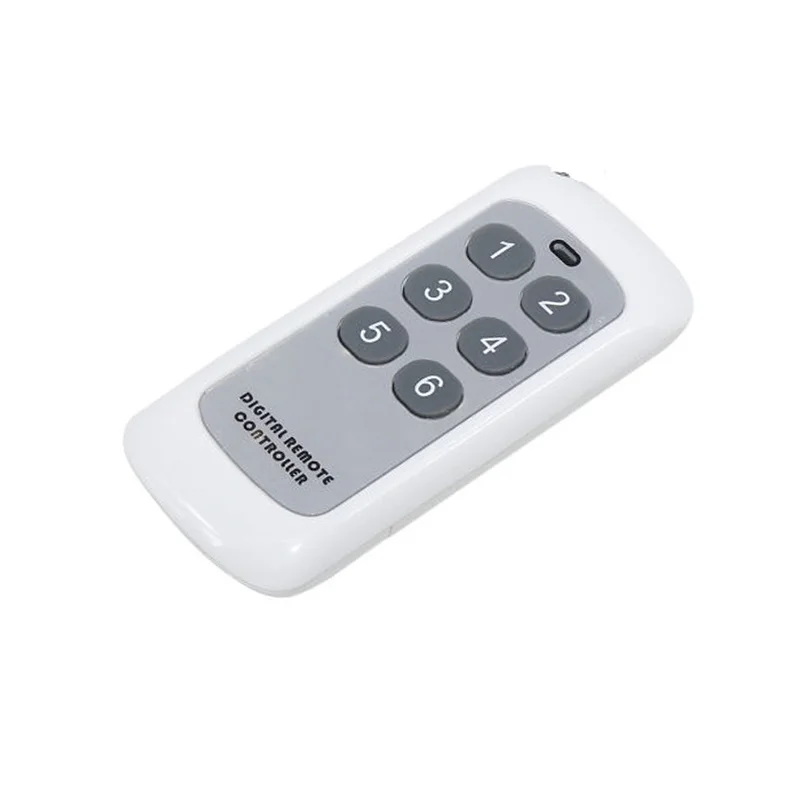

KL600-3 433MHz 6-Button RF Remote Control (w/o Battery)

The KL600-3 remote requires a single 12V battery, typically a 23A or A23 alkaline type. The battery compartment is located on the back of the remote. Open the battery cover, insert the battery with the correct polarity as indicated by the markings inside the compartment, then securely close the cover. Ensure the battery is fresh for optimal transmission range and reliable operation.

Pairing depends on your receiver's encoding type. For fixed code (SC2260/EV1527), ensure the remote's DIP switches or soldered links match the receiver's address code. For learning code receivers, put the receiver into its learning mode (often by pressing a button) and then press the desired button on the remote. For rolling code (HCS301), follow the specific receiver's procedure, which usually involves a synchronized initialization sequence.

Yes, the KL600-3's frequency is adjustable approximately between 250MHz and 460MHz. Adjustment is typically done by tuning a small variable capacitor (trimcap) or inductor on the remote's circuit board. Use a frequency counter or spectrum analyzer for precise setting. Note that the receiver must be tuned to the exact same frequency for successful communication. This allows you to avoid interference from other 433MHz devices.

The operational range is highly dependent on the environment, antenna implementation, and receiver sensitivity. In an open, unobstructed area, you can expect a range of approximately 50 to 100 meters. Walls, metal obstacles, and electrical noise will reduce this distance. For maximum range, ensure both the remote and the receiving system have properly tuned antennas and that the battery in the remote is fully charged.
