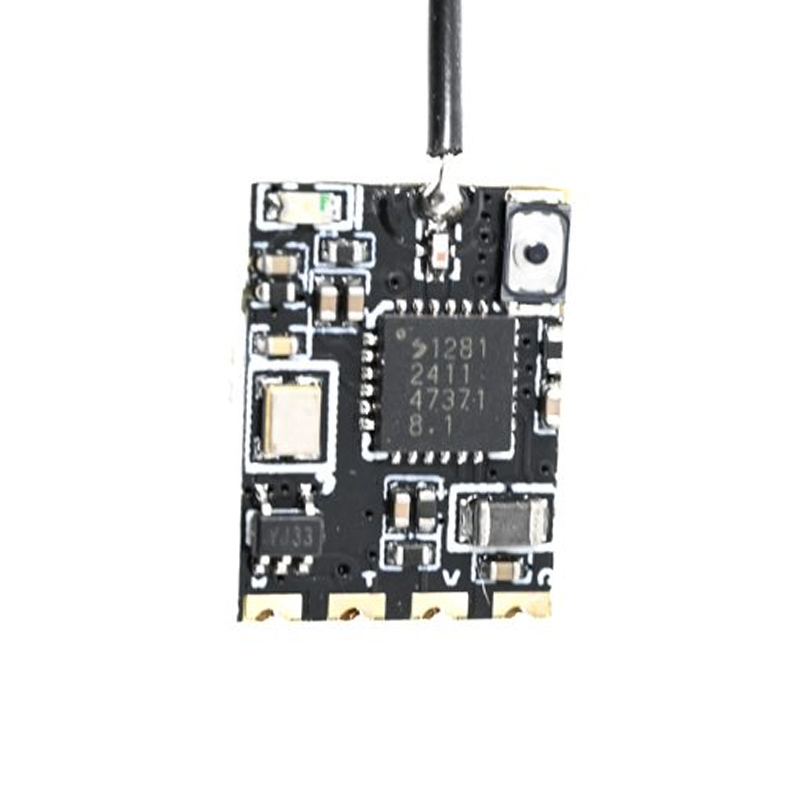

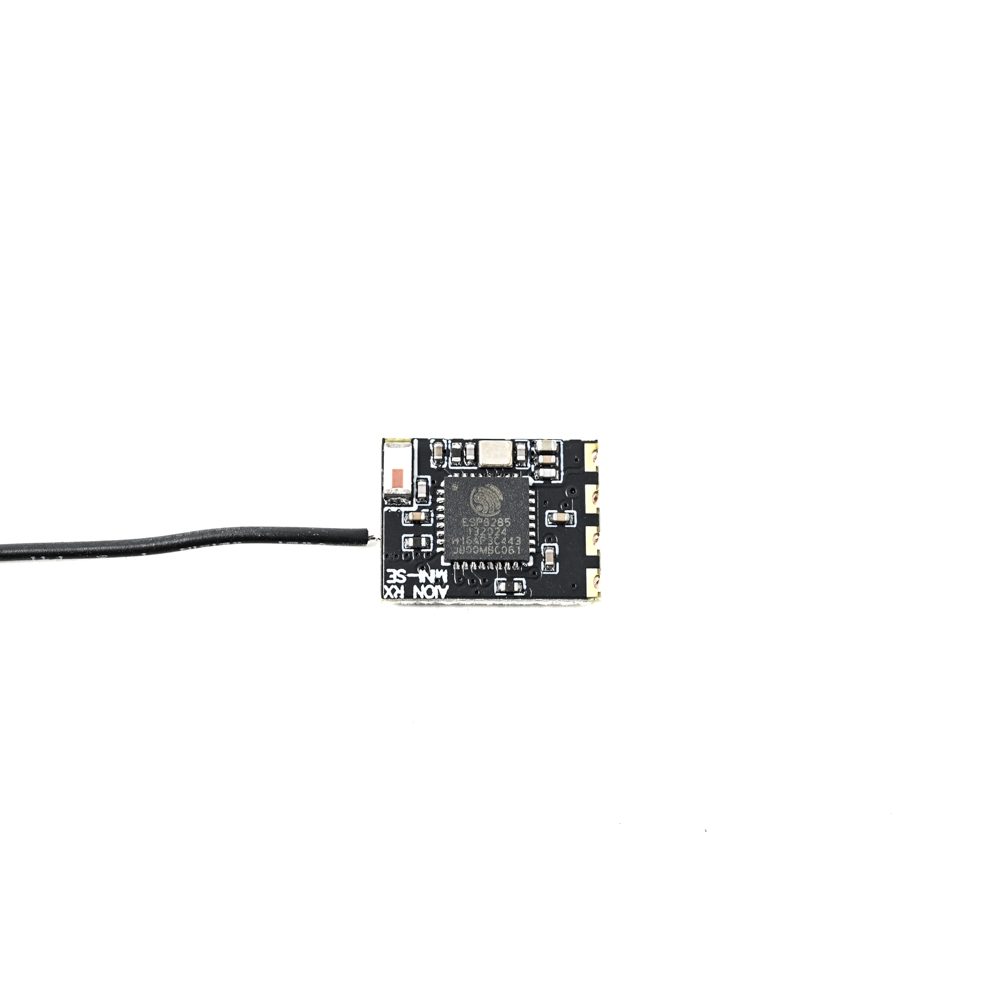

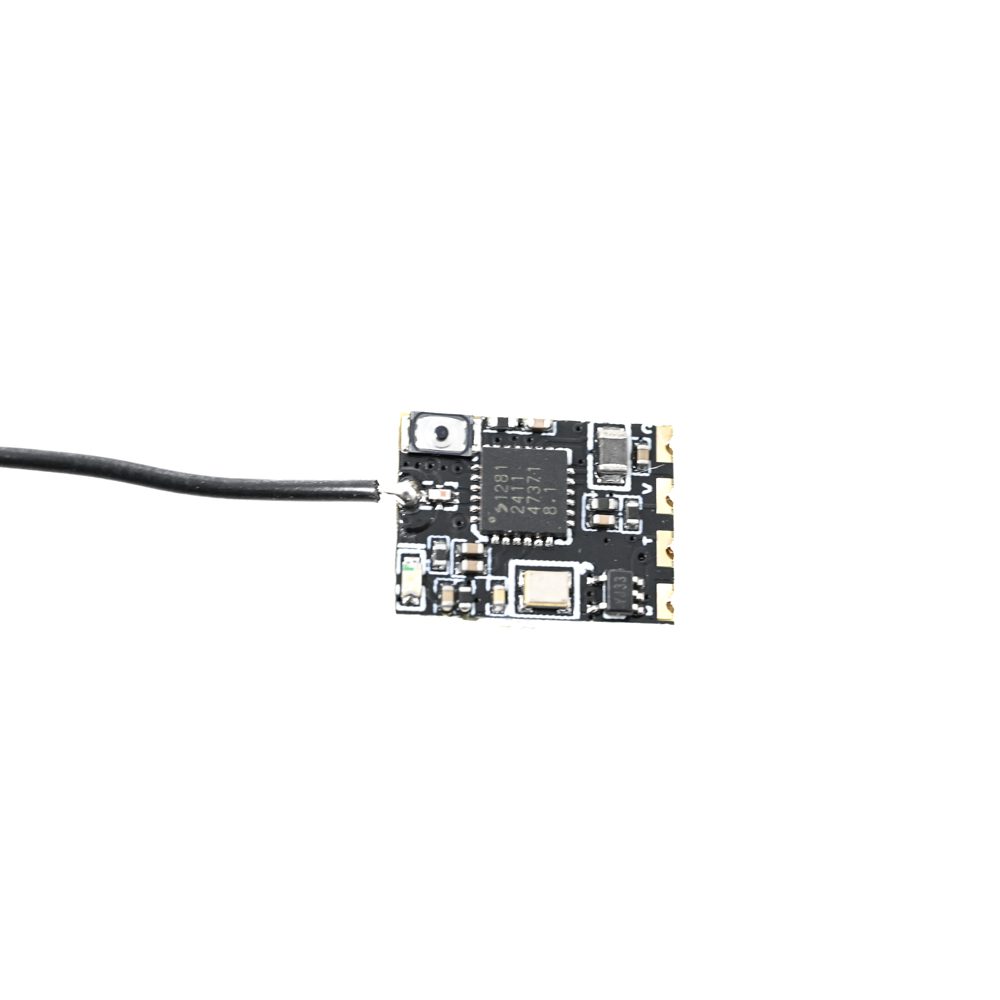

Jumper AION-RX-MINI-SE 2.4GHz ELRS Receiver
The Jumper AION-RX-MINI-SE is an ultra-compact, full-duplex telemetry receiver designed for ExpressLRS 2.4GHz systems, offering long-range control and telemetry for FPV drones and RC models.
Features
- Ultra-compact footprint measuring 12.8 x 9.8 x 3.6mm for tight builds.
- Extremely lightweight at 0.8g, minimizing impact on drone weight and balance.
- Full-range ExpressLRS 2.4GHz protocol with over 5km operational distance.
- Wide voltage input range from 3.5V to 6V, compatible with 1S LiPo and regulated BEC power.
- Supports 16 PWM/SBUS channels for complex multi-rotor and fixed-wing setups.
Out of stock
The Jumper AION-RX-MINI-SE receiver leverages the ExpressLRS 2.4GHz protocol to deliver robust, low-latency control and bi-directional telemetry. Its full-duplex communication ensures real-time link status and RSSI data are transmitted back to the transmitter, providing pilots with critical flight information.
Engineered for minimalism, its tiny PCB houses a high-performance RF module and efficient power regulation circuitry, drawing only 60mA at 5V. This design makes it ideal for weight-sensitive micro and nano FPV drones, as well as any application where space is at a premium without sacrificing long-range capability.
Additional Information
| Weight | 0.0008 kg |
|---|---|
| Dimensions | 1.28 × 0.98 × 0.36 cm |
