Infrared IR Wireless Remote Control Module Kit for Arduino

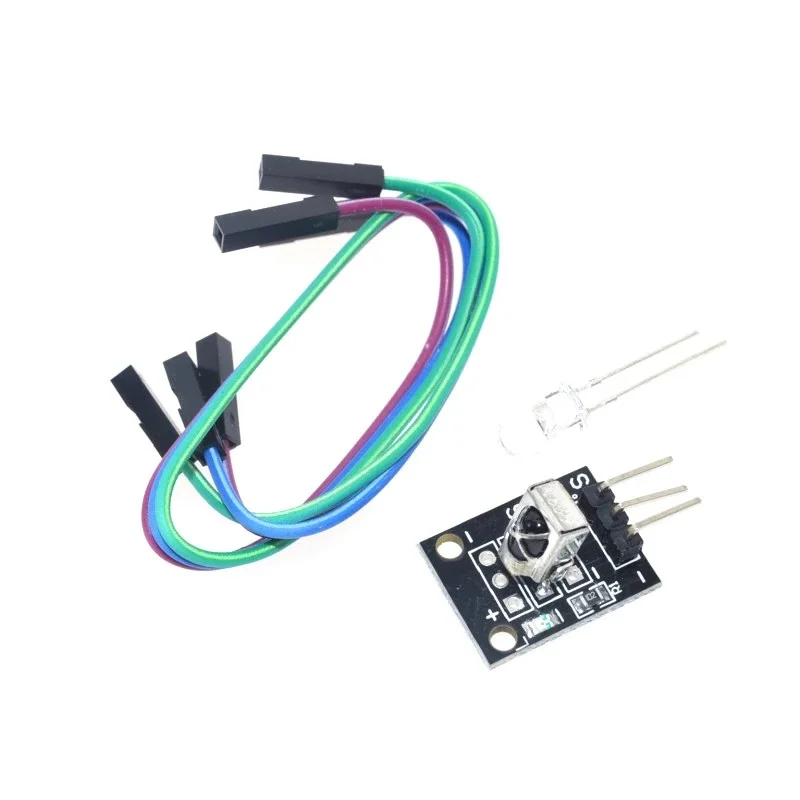

Connect the IR receiver module's VCC pin to Arduino's 5V, GND to GND, and the signal output pin (usually marked OUT) to any digital input pin (e.g., pin 11). Use the included jumper wires. You will need to install a library like IRremote in the Arduino IDE to decode the signals sent from the remote control. The library provides examples for reading and interpreting the button codes.

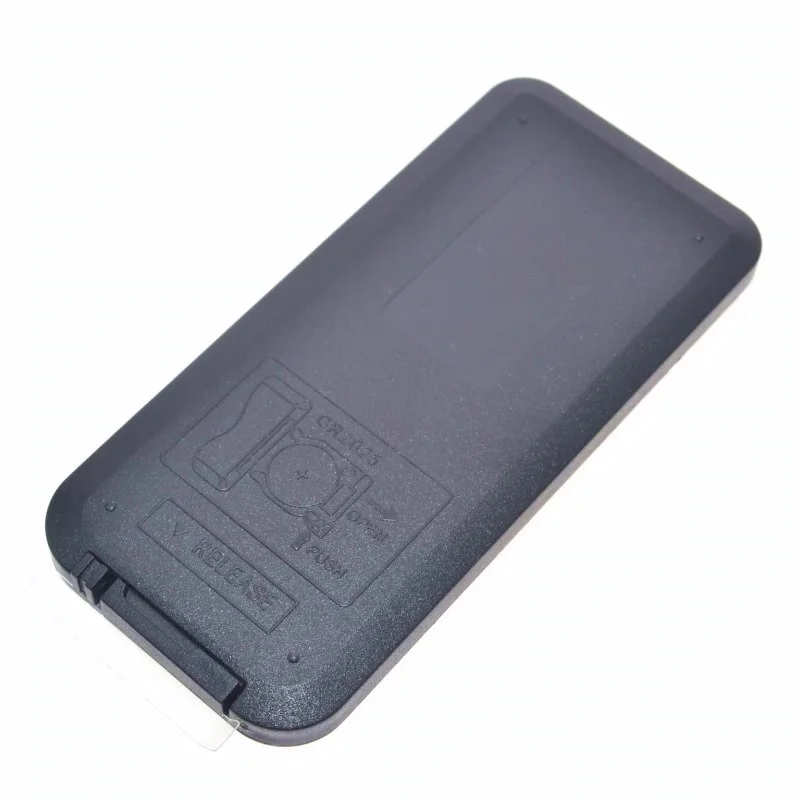

The remote operates on a CR2025 160mAh coin cell. It has an extremely low static current of 3-5 microamps when idle. During a button press (dynamic current), it draws 3-5 milliamps. With typical intermittent use, this can translate to a battery life of several months to over a year, depending on usage frequency. The 20,000-actuation lifespan also contributes to long-term reliability before mechanical wear.

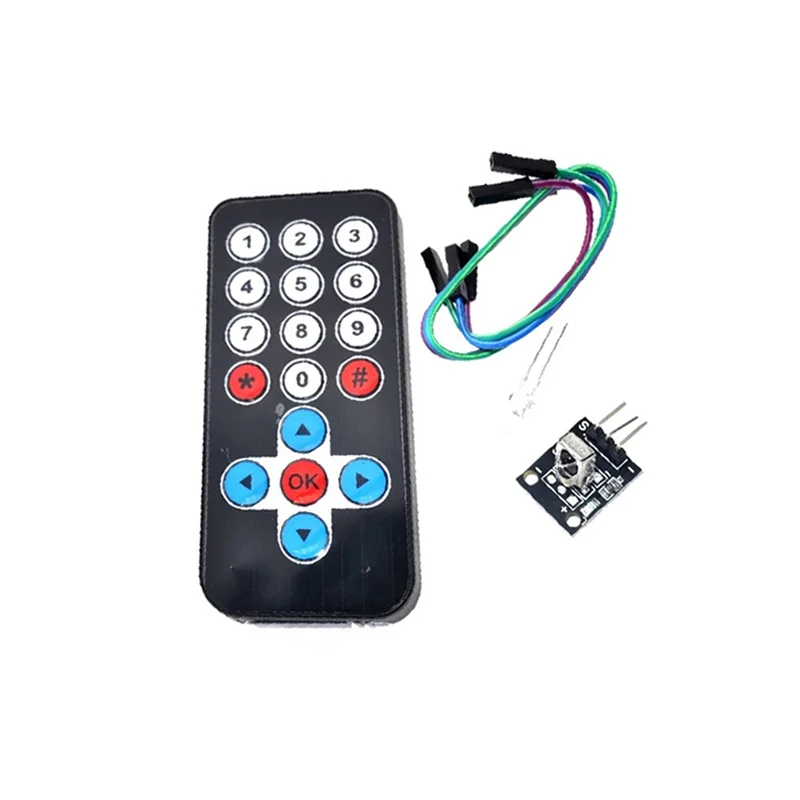

No, the included remote is a standard, pre-programmed consumer IR remote with fixed codes for its 20 buttons. You cannot reprogram the transmitted codes on the remote itself. However, you can fully customize the response on the Arduino side. By using the IRremote library, you can decode the fixed signal for each button and then map it to trigger any action or function within your Arduino sketch, effectively creating custom behavior for your project.

First, verify all connections: VCC (5V), GND, and signal pin are correctly wired. Ensure the remote's battery is installed correctly and has charge. Check for strong ambient light or direct sunlight, as this can flood the IR receiver with noise. Point the remote directly at the receiver's sensor within its 60-degree effective angle and within 8 meters. Test using a simple Arduino sketch from the IRremote library examples to rule out code issues. The included LED can be used to visually confirm remote operation.

The included LED is a prototyping component for immediate testing and feedback in your circuit. A common use is to connect it to an Arduino output pin via a current-limiting resistor. You can then program your sketch so that when a specific button on the IR remote is pressed, the LED toggles on or off. This provides a simple, visual confirmation that your IR signal reception and decoding logic are working correctly before integrating more complex hardware.
