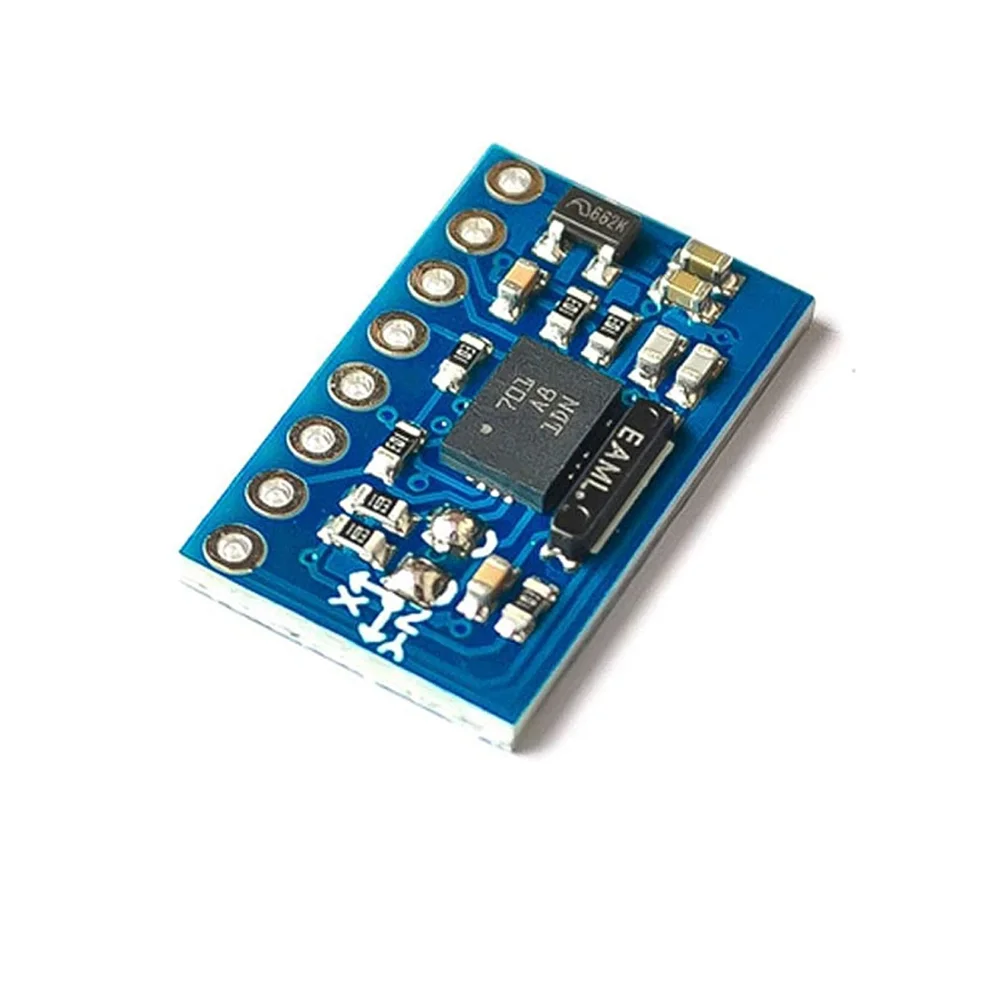

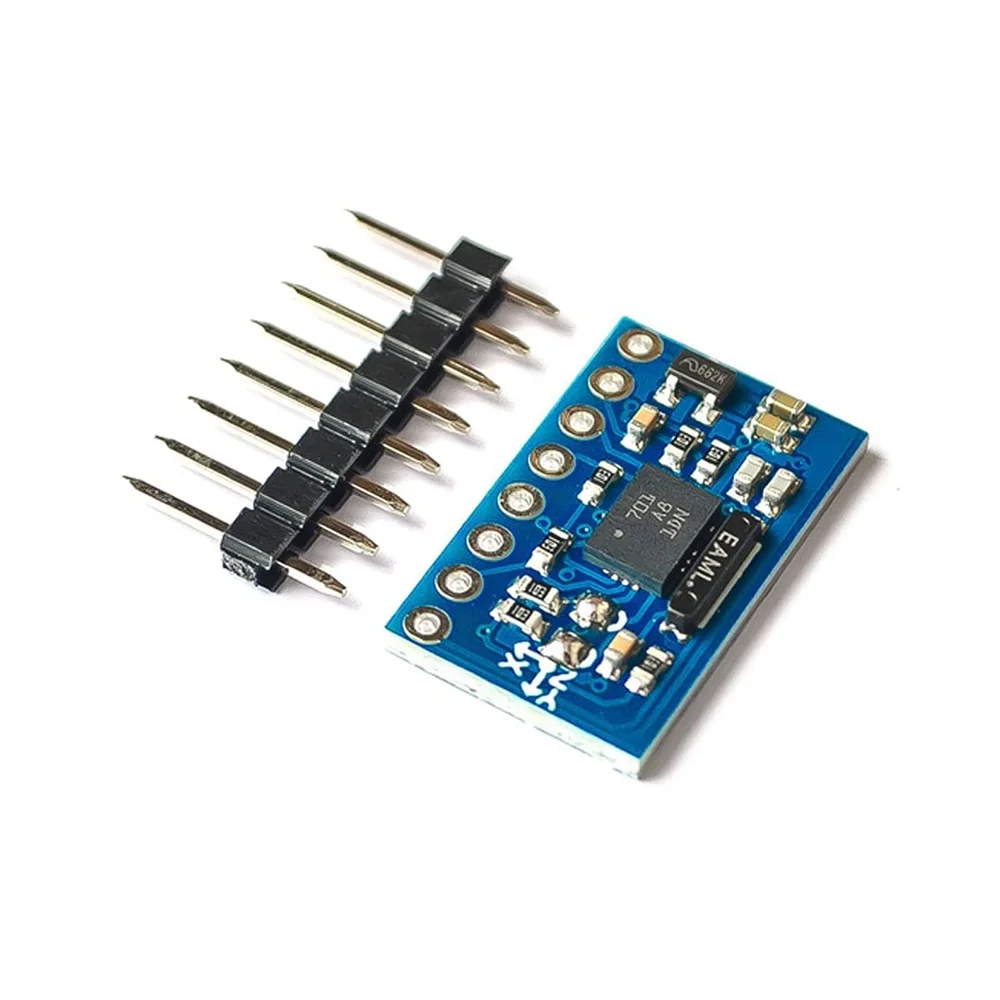

Generic GY-BNO055 9DOF 9-Axis Sensor Module - I2C/Serial Interface
The GY-BNO055 is a 9DOF absolute orientation sensor module integrating a 3-axis accelerometer, gyroscope, and magnetometer with an onboard fusion processor. Operating from 3V to 5V DC, it provides calibrated sensor fusion data via I2C or serial interface, making it compatible with Arduino, Raspberry Pi, ESP32, and other embedded platforms.
Features
- Integrated 9-axis motion sensing with accelerometer, gyroscope, and magnetometer.
- Onboard BNO055 fusion processor provides absolute orientation (Euler angles, quaternions).
- Wide 3V to 5V DC operating range with built-in voltage regulation.
- Standard I2C and serial (UART) communication interfaces for easy integration.
- Compact 12 x 20 mm PCB footprint suitable for robotics and portable devices.
Out of stock
The GY-BNO055 module centers on the Bosch Sensortec BNO055 system-in-package, which combines MEMS-based accelerometer, gyroscope, and magnetometer sensors with a 32-bit microcontroller running sensor fusion algorithms. This integrated approach outputs fully calibrated absolute orientation data—including heading, roll, and pitch—without requiring complex external processing.
Designed for stability and ease of use, the module includes necessary level shifting and filtering components, accepting a 3V to 5V DC supply. Its standard I2C and serial interfaces allow direct connection to most microcontrollers and single-board computers, providing real-time motion tracking for applications demanding precise spatial awareness.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.2 × 2 cm |
