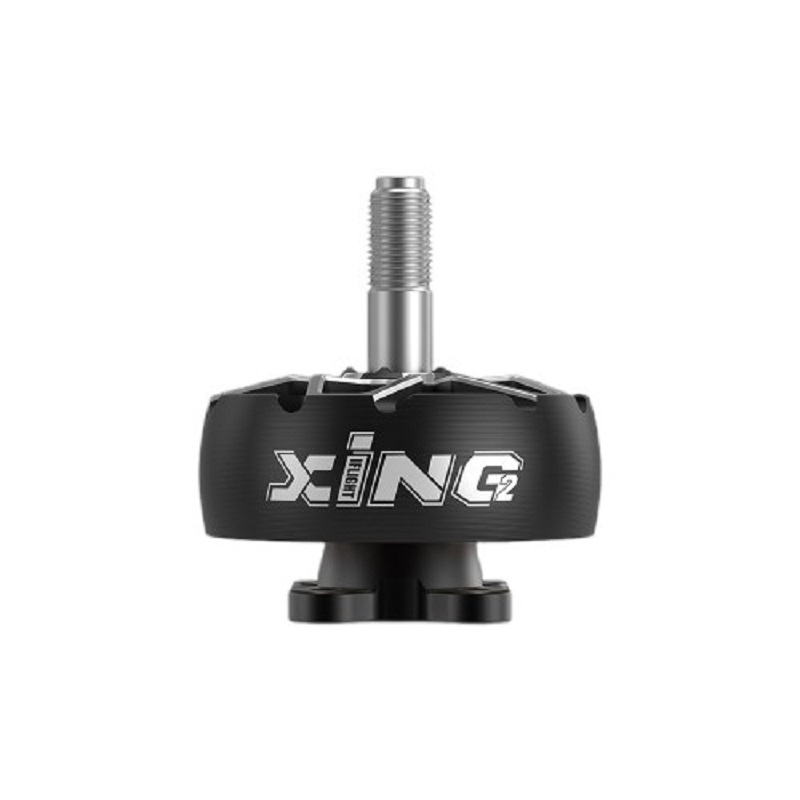

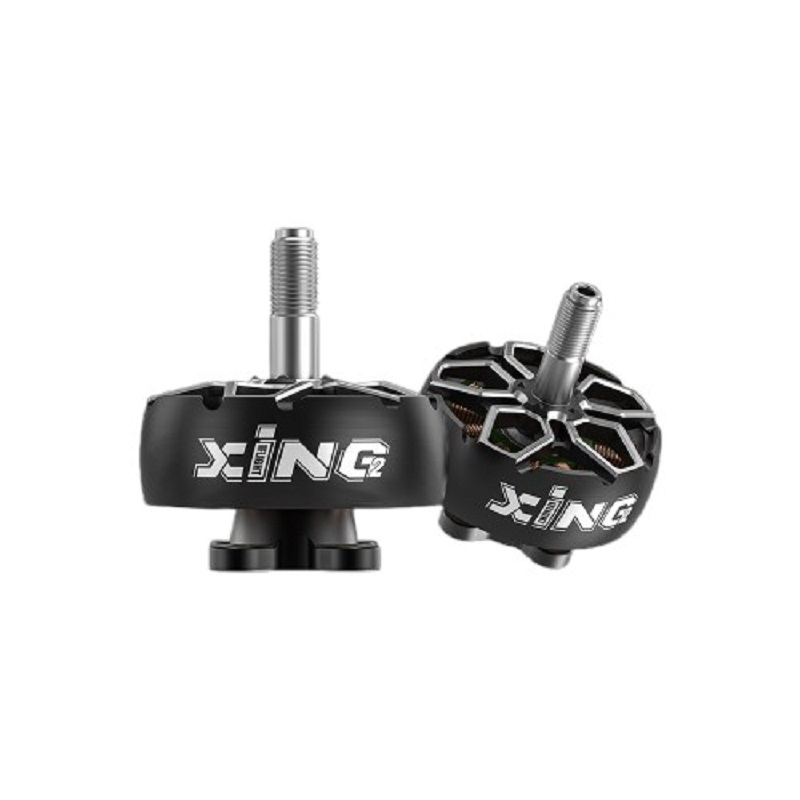

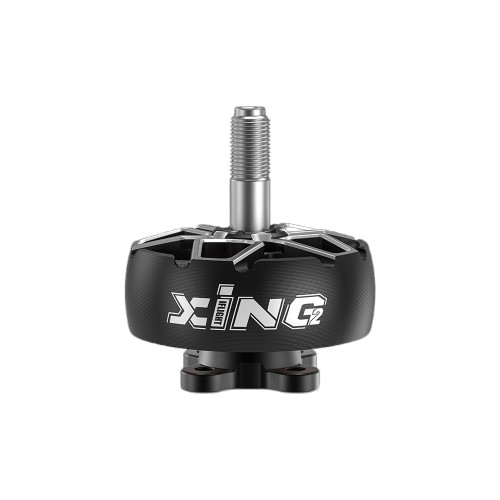

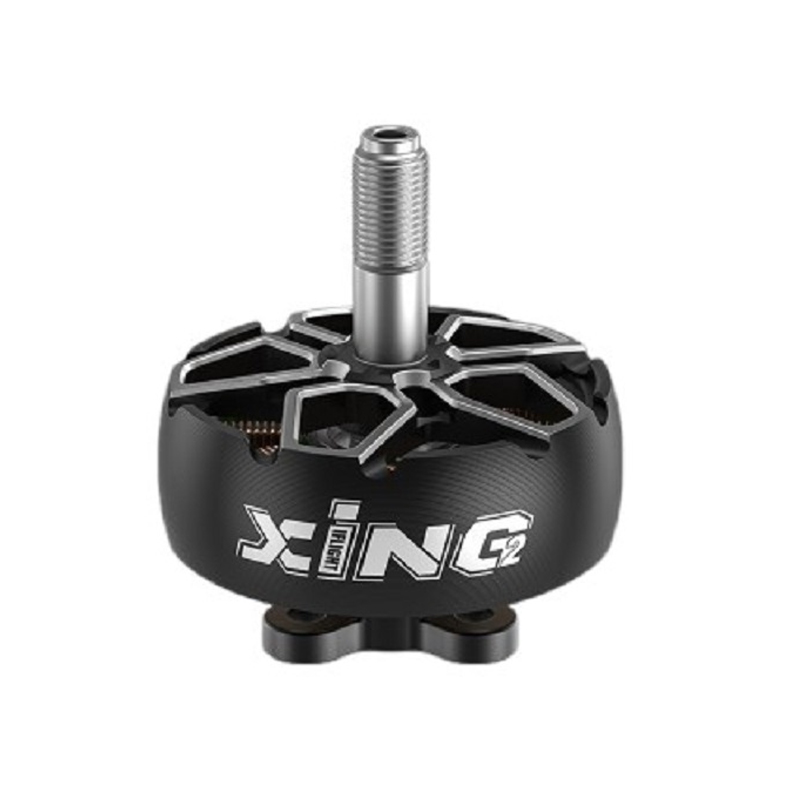

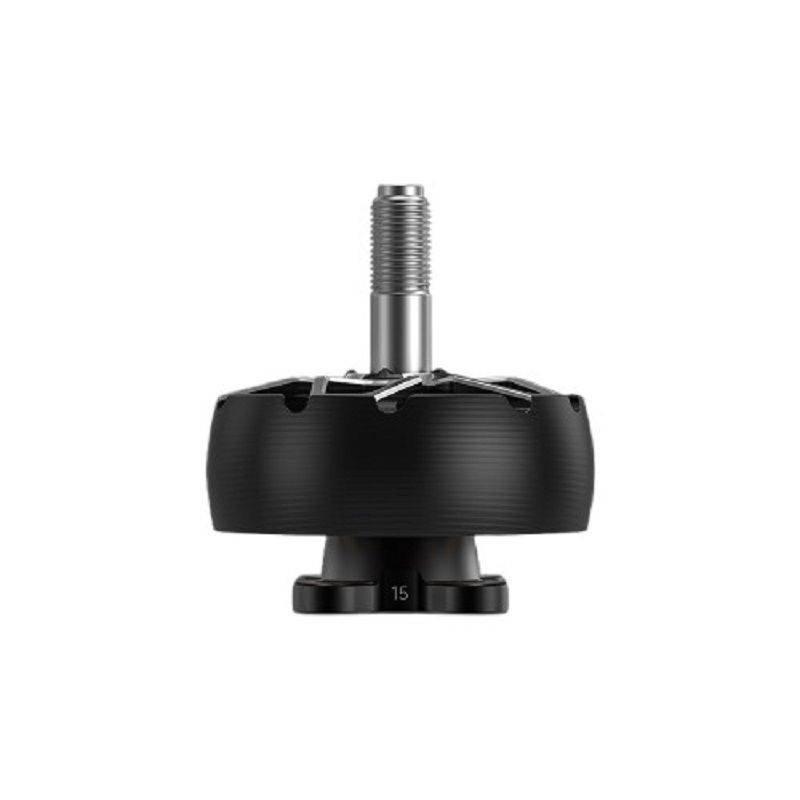

iFlight XING2 2506 FPV Motor Unibell - 1850KV
The iFlight XING2 2506 is a high-performance 1850KV brushless motor featuring a durable unibell design, a 5mm titanium shaft, and N52H curved magnets for rapid response and powerful thrust on 4S-6S LiPo systems.
Features
- 1850KV rating optimized for high-thrust 5-inch and 6-inch FPV freestyle and racing builds.
- Unibell design with a 7075 aluminum bell and 5mm titanium alloy shaft for maximum crash durability.
- Center-slotted N52H curved arc magnets minimize response delay for locked-in braking and acceleration.
- High-quality NSK 9x4x4 bearings and an internal O-ring provide smooth operation and bearing gap protection.
- Rated for up to 25.2V (6S) input, delivering 1013W peak power and 41.55A peak current.
Out of stock
The iFlight XING2 2506 1850KV motor represents the next evolution in the acclaimed XING series, engineered for pilots demanding uncompromising performance and resilience. Its advanced unibell construction integrates the bell and shaft into a single, robust unit machined from 7075 aluminum, significantly enhancing impact resistance during aggressive freestyle maneuvers and hard crashes.
Internally, the motor employs precision center-slotted N52H curved arc magnets paired with optimized stator laminations. This design reduces the magnetic air gap, increasing flux density for superior efficiency and power output while drastically cutting motor response time. The result is a tangible improvement in throttle translation, offering pilots a more immediate and connected flight feel.
Built for the long haul, the XING2 incorporates premium NSK bearings, a protective motor wire sheath, and dynamic balancing for smooth, vibration-free operation. Whether powering a lightweight 5-inch racer or a heavier 6-inch freestyle quad, this motor delivers a potent blend of raw thrust, thermal management, and mechanical reliability.
Additional Information
| Weight | 0.052 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
