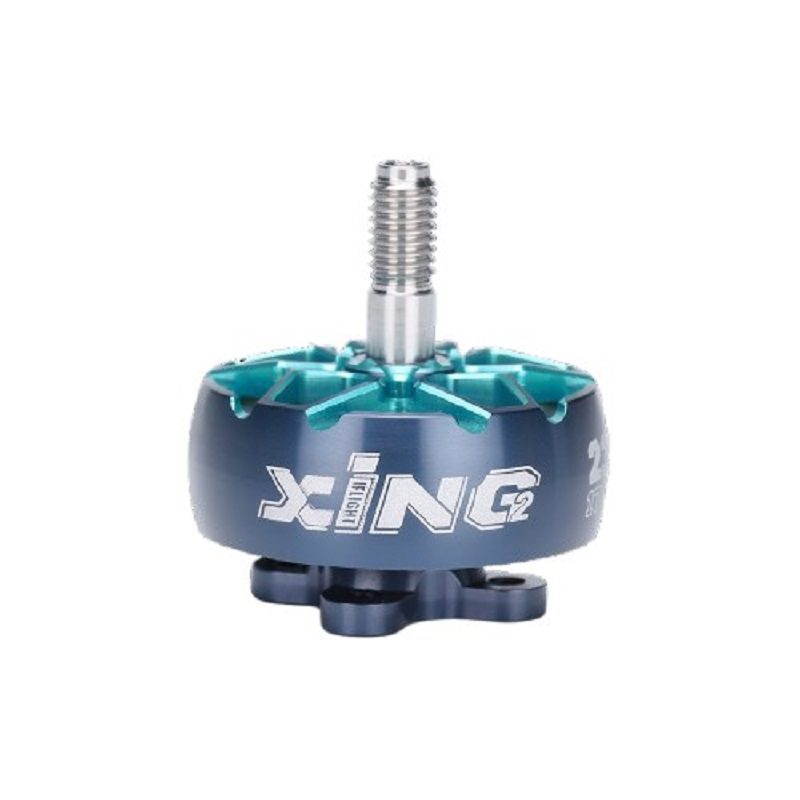

iFlight XING2 2306 FPV Motor Unibell - 2555KV
The iFlight XING2 2306 is a high-performance FPV brushless motor featuring a durable unibell design and a 2555KV rating, optimized for 4S LiPo power systems to deliver powerful thrust and rapid response for aggressive racing and freestyle flight.
Features
- 2555KV rating optimized for 4S LiPo power and high-thrust applications.
- Durable unibell construction with a 5mm titanium alloy shaft and 7075 aluminum bell.
- Center-slotted N52H curved arc magnets for minimized response time and a locked-in flight feel.
- Premium NSK 9x4x4 bearings and internal XING O-ring for bearing gap protection.
- 16x16mm M3 mounting pattern compatible with standard 5-inch FPV racing and freestyle drone frames.
Out of stock
The XING2 2306 represents the latest evolution in iFlight’s renowned motor series, engineered for pilots demanding uncompromising performance. Its advanced electromagnetic design utilizes center-slotted N52H curved arc magnets and precision stator lamination to drastically reduce translation delay during braking and acceleration, resulting in a more direct and responsive throttle feel. This, combined with a minimized magnet air gap, increases magnetic flux for greater electrical efficiency and higher power output from a given input voltage.
Structural integrity is paramount, with a robust bell-to-shaft connection and a crash-resistant 7075 aluminum bell housing. The 5mm titanium alloy shaft provides exceptional strength against impacts, while the integrated motor wire protector and internal damping ring enhance overall durability. The motor is dynamically balanced for smooth operation, reducing vibrations that can interfere with flight controller and FPV camera performance.
Additional Information
| Weight | 0.044 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
