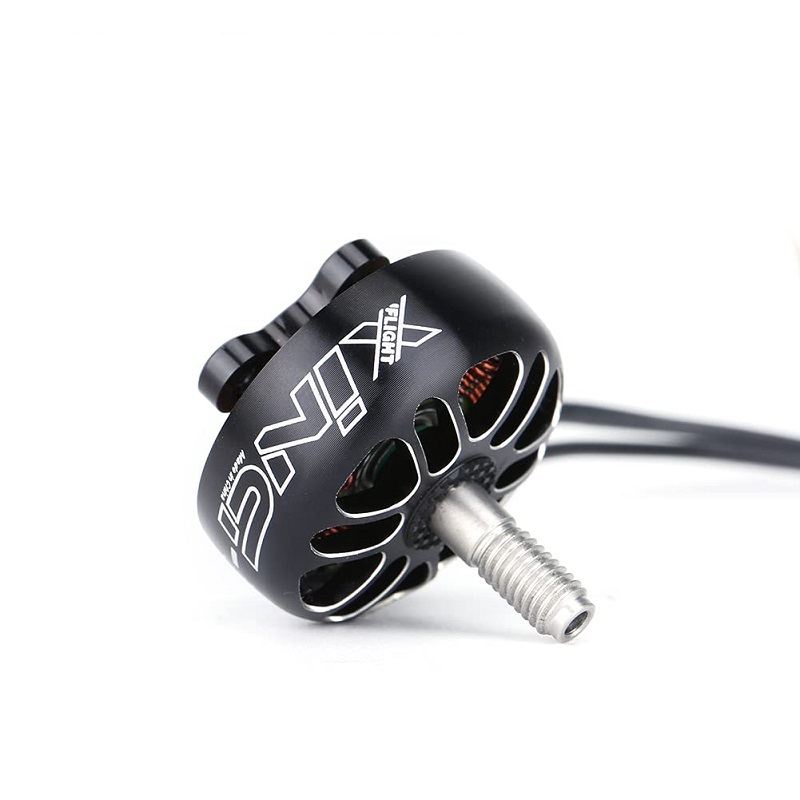

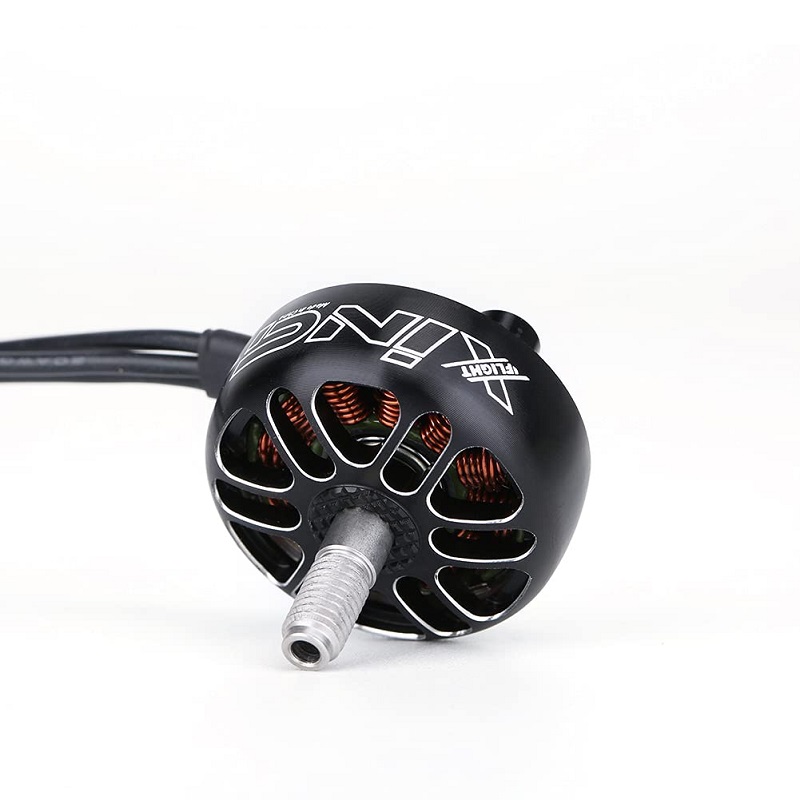

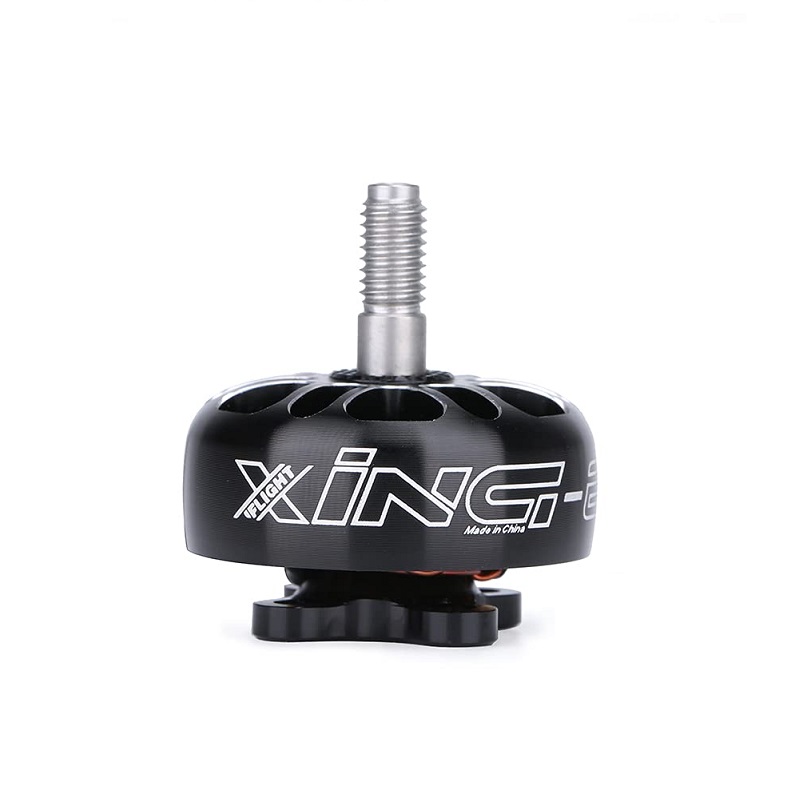

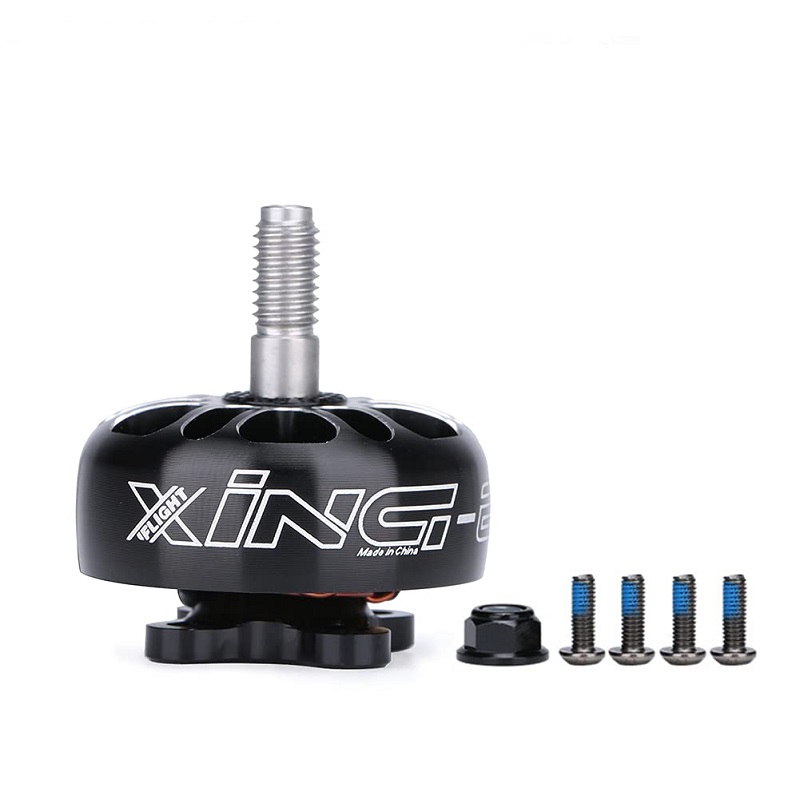

iFlight XING-E Pro 2306 2450KV FPV Motor Unibell - 2-6S
The iFlight XING-E Pro 2306 2450KV motor is a high-performance unibell motor designed for 2-6S LiPo FPV racing and freestyle drones, featuring a robust 5mm steel hollow shaft, N52H magnets, and NSK bearings for reliable, high-speed operation.
Features
- 2450KV rating optimized for high-speed 5-inch and 6-inch FPV racing drones on 4S to 6S LiPo batteries.
- Durable unibell construction with a 5mm steel hollow shaft and 6061 CNC-machined aluminum components.
- High-grade N52H curved magnets and NSK bearings (9x4x4mm) for efficient power delivery and longevity.
- 16x16mm M3 mounting pattern compatible with standard 5-inch FPV frames.
- Single-strand copper windings maximize electrical efficiency and thermal performance.
Out of stock
The XING-E Pro 2306 motor from iFlight delivers the proven performance of the XING series in a high-value package. Its 2306 stator size and 2450KV rating provide an excellent balance of torque and RPM for aggressive freestyle and competitive racing on 4S and 6S power systems. The unibell design integrates the bell and shaft into a single, high-strength 5mm steel unit, significantly enhancing durability during crashes.

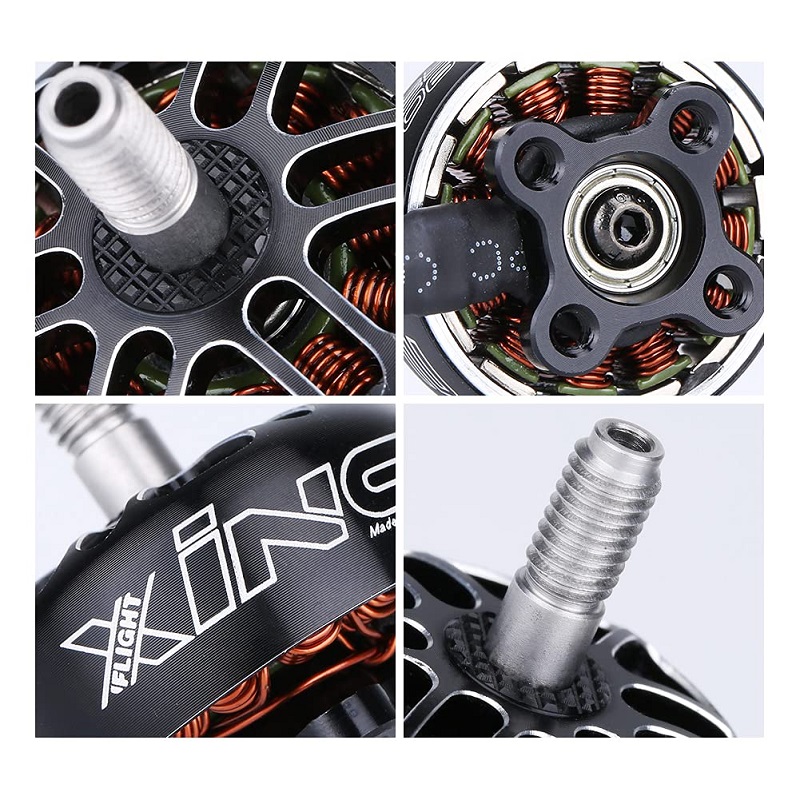

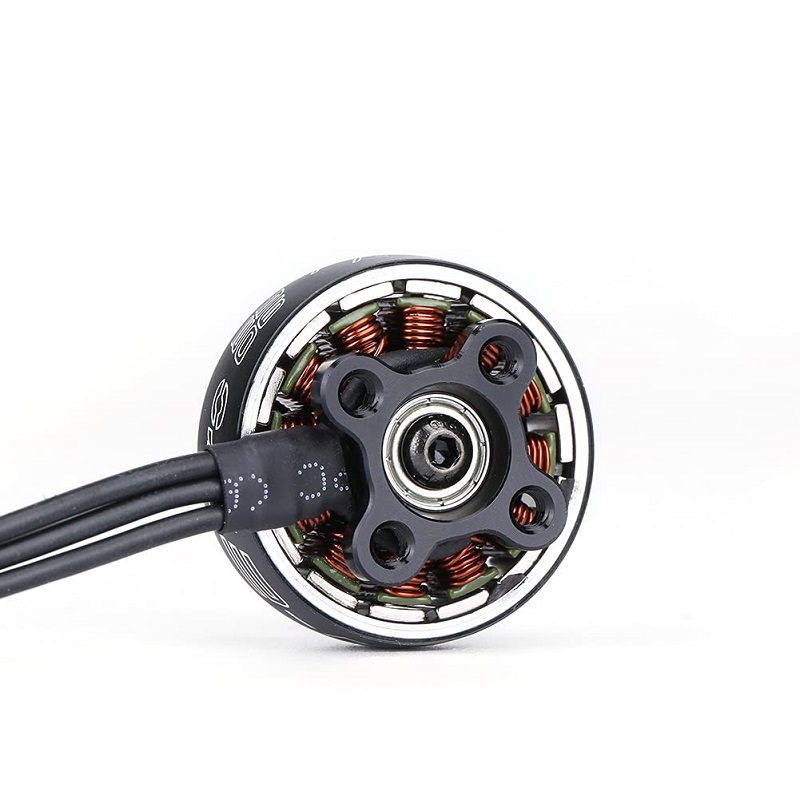

Internal construction utilizes premium materials, including N52H high-temperature curved magnets for consistent magnetic field strength and large 9x4x4mm NSK bearings to minimize friction and radial play. The single-strand copper winding pattern is optimized for low resistance and efficient heat dissipation, supporting the motor’s peak power handling of over 700W.
Additional Information
| Weight | 0.044 kg |
|---|---|
| Dimensions | 4 × 5 × 4 cm |
