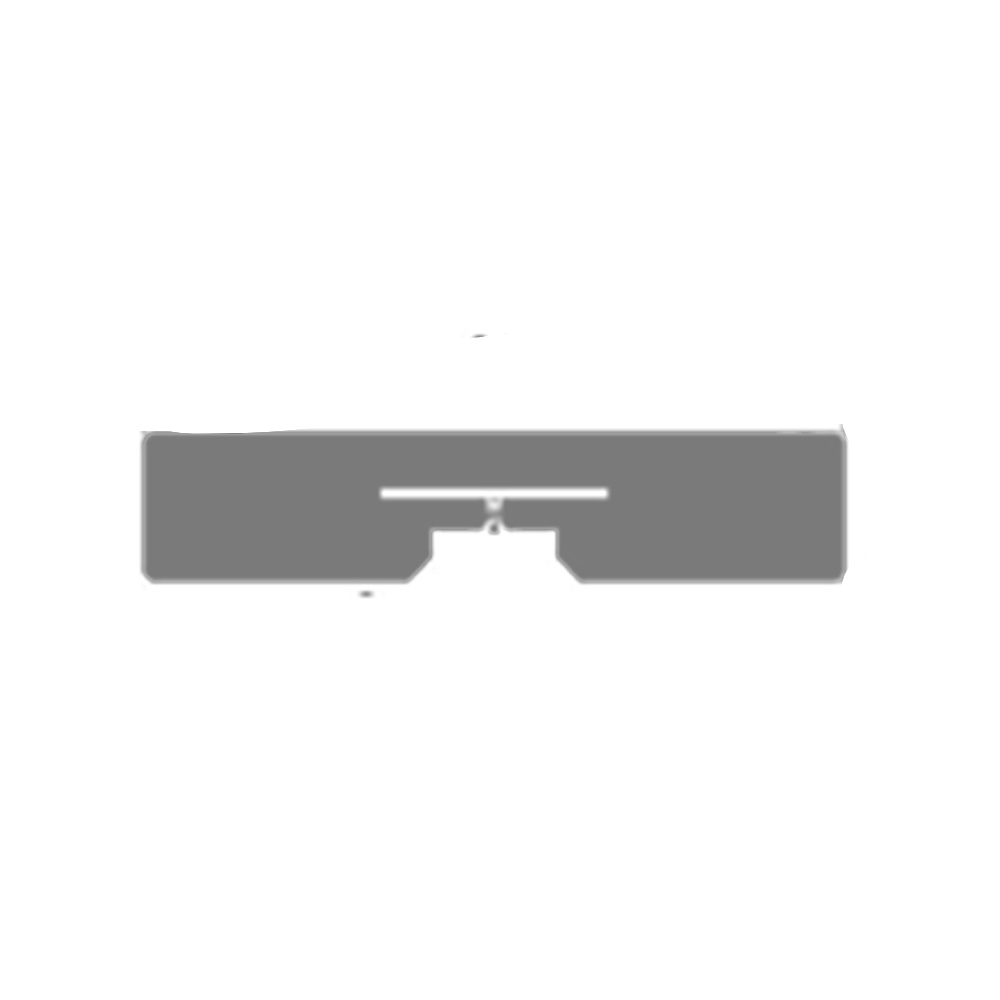

Huahao UHF RFID Sticker 100x30mm, White PET Sticker, Strong Adhesive, Alien Higgs™ 9 Chip

Name: Huahao UHF RFID Sticker 100x30mm, White PET Sticker, Strong Adhesive, Alien Higgs™ 9 Chip
Brand: Huahao
SKU: SENS-2515
Price: 23.00 INR
Availability: OutOfStock

₹23.00 (Inclusive of all taxes)

Out of Stock

This Huahao UHF RFID sticker features an Alien Higgs™ 9 chip on a 100x30mm white PET substrate with strong adhesive, operating on the global 860-960 MHz frequency band. It is designed for long-range asset tracking and identification applications on non-metallic surfaces.

Features

Alien Higgs™ 9 chip with 1024-bit total memory (EPC: 96-496bit, User: up to 688bit, TID: 96bit).
Global UHF frequency band (860-960 MHz) for worldwide compatibility.
Extended read range of 5-7 meters on vehicle windshields and similar surfaces.
White PET printable surface suitable for custom resin ribbon printing and TID encoding.
Strong permanent adhesive backing for secure mounting on non-metallic assets.

Out of stock

Get Notified When Available

Description

This UHF RFID sticker is engineered for high-performance asset management and vehicle identification. Its core is the Alien Higgs™ 9 RFID IC, which provides a robust 1024-bit memory bank configurable for EPC, user data, and a unique TID. The antenna is optimized for the 860-960 MHz UHF band, enabling reliable long-range reads even in challenging environments.

The tag is constructed from durable, printable white PET material and is backed by a strong adhesive formulated for permanent attachment to glass, plastic, and other non-metallic surfaces. With an operational temperature range of -40°C to +85°C, it is suitable for both indoor and outdoor applications requiring durable, passive RFID tracking solutions.

Key Features

High-performance Alien Higgs™ 9 RFID integrated circuit.
Optimized antenna design (93x19mm) for maximum read range and signal integrity.
Wide operating temperature range (-40°C to +85°C) for harsh environments.
Printable PET surface allows for custom branding, barcodes, or serialization.
Strong, permanent adhesive ensures reliable mounting on windshields and assets.
Global UHF frequency compliance (860-960 MHz) for international deployment.
Configurable memory supports GS1 EPC and user-defined data standards.

Applications

Vehicle access control and parking management via windshield tagging.
Long-range asset tracking for warehouse inventory and logistics.
Industrial tool and equipment management on factory floors.
Library book and media tracking systems.
Retail inventory and anti-theft systems for high-value goods.

Technical Specifications

Model / Name	UHF RFID Sticker
Chip	Alien Higgs™ 9
Operating Frequency	860 - 960 MHz
Antenna Size	93 x 19 mm
Overall Dimensions (Die-Cut)	100 x 30 mm
Memory (Total)	1024 bit
EPC Memory	96 - 496 bit
User Memory	Up to 688 bit
TID Memory	96 bit
Read Distance	5 - 7 meters (on windshield)
Operating Temperature	-40°C to +85°C
Material / Substrate	White PET (Printable)
Adhesive	Strong Permanent

Frequently Asked Questions

What is the maximum read distance for this RFID sticker?

The sticker is optimized for a read distance of 5 to 7 meters when mounted on a vehicle windshield or similar non-metallic, low-dielectric surfaces. Actual range can vary based on the reader's power output and local RF environmental conditions.

Can this RFID tag be programmed and printed on?

Yes. The tag's Alien Higgs™ 9 chip memory (EPC, User, TID) is fully programmable using standard UHF RFID encoders. The white PET surface is designed for high-quality thermal transfer printing using resin ribbons, allowing for custom text, barcodes, or logos.

Is the adhesive suitable for outdoor or harsh environments?

The strong permanent adhesive is designed for secure bonding to surfaces like glass. Combined with the PET material and a wide operating temperature range of -40°C to +85°C, the tag is suitable for many outdoor and industrial applications, provided the mounting surface is clean and non-metallic.

What is the difference between EPC, User, and TID memory?

TID (Tag Identifier) is a factory-locked 96-bit serial number unique to each chip. EPC (Electronic Product Code) memory (96-496 bits) is used for standard item identification codes. User memory (up to 688 bits) is available for application-specific data storage, such as maintenance history or custom identifiers.
