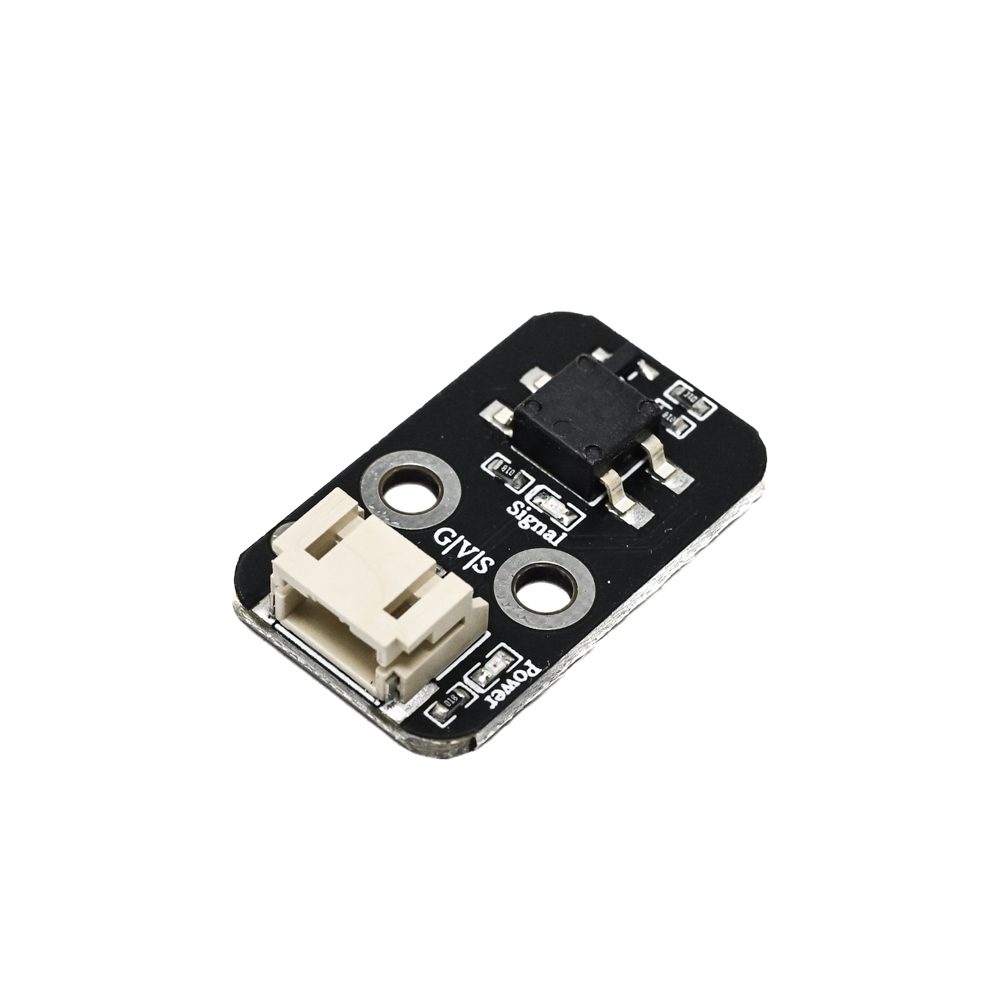

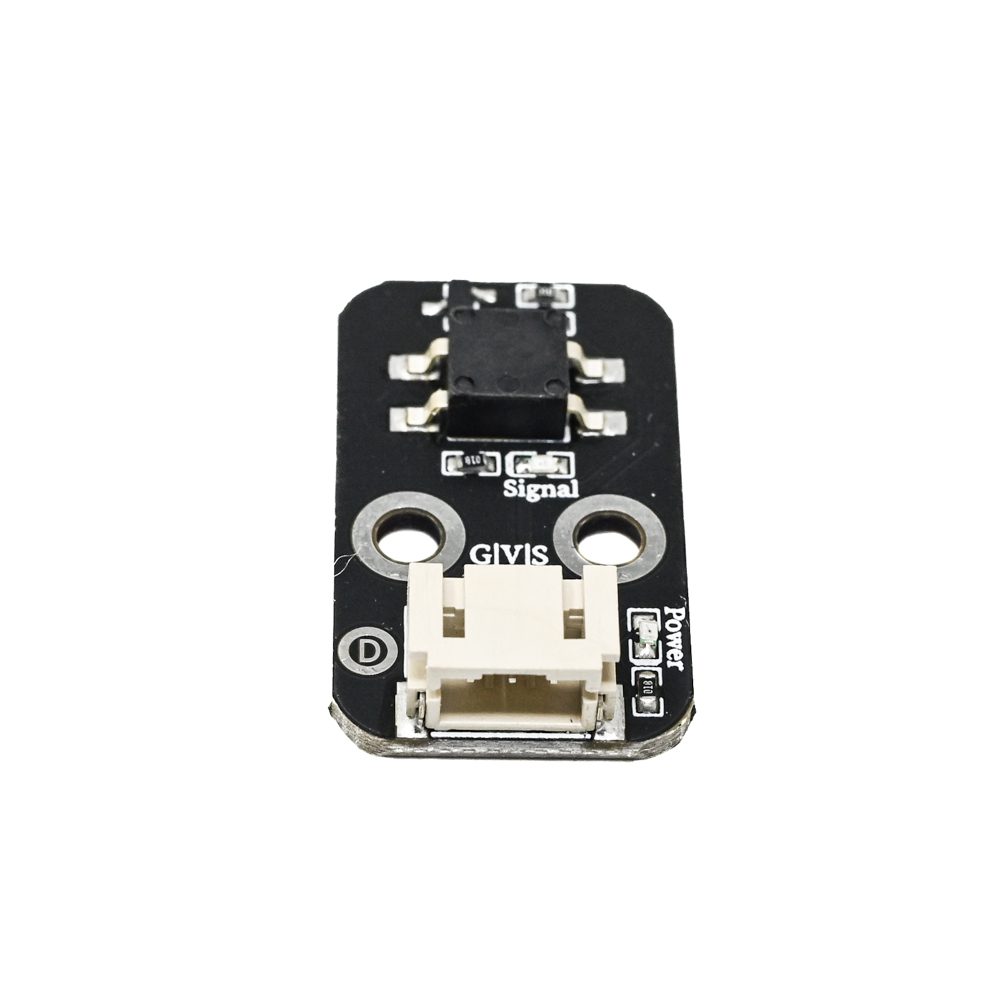

HS-S27P Four-Way Tilt Sensor Module - Digital Output, 3.3V/5V Compatible
The HS-S27P is a digital four-way tilt sensor module utilizing a steel ball switch mechanism, providing a simple HIGH/LOW output signal for tilt or vibration detection. It operates on a 3.3V to 5.5V DC supply and features a standard 3-pin interface (VCC, GND, Signal) for easy integration with Arduino, ESP32, and other microcontroller platforms.
Features
- Four-way digital tilt and vibration detection via steel ball switch mechanism.
- Operates on a wide 3.3V to 5.5V DC supply voltage range.
- Simple 3-pin digital output interface (VCC, GND, Signal) for easy connection.
- Compact PCB design with dual mounting holes for secure installation.
- Ideal for basic orientation sensing in DIY electronics and prototyping.
Out of stock
The HS-S27P tilt sensor module functions as a basic digital orientation switch. Its core component is a conductive steel ball housed within a cavity containing electrical contacts. When the module is tilted or vibrated beyond a specific threshold, the ball rolls to bridge these contacts, closing the circuit and causing the digital output pin to switch from a default HIGH state to a LOW state. This provides a clear, binary indication of a change in orientation or the presence of vibration.
Designed for simplicity and reliability, the module includes on-board signal conditioning to provide a clean digital signal compatible with 3.3V and 5V logic microcontrollers like Arduino, ESP32, and Raspberry Pi. Its compact form factor and pre-soldered 2.54mm pitch pin headers facilitate rapid prototyping and integration into various projects requiring basic tilt or shock detection.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.6 × 3.1 cm |
